Wiring Diagrams - Probe

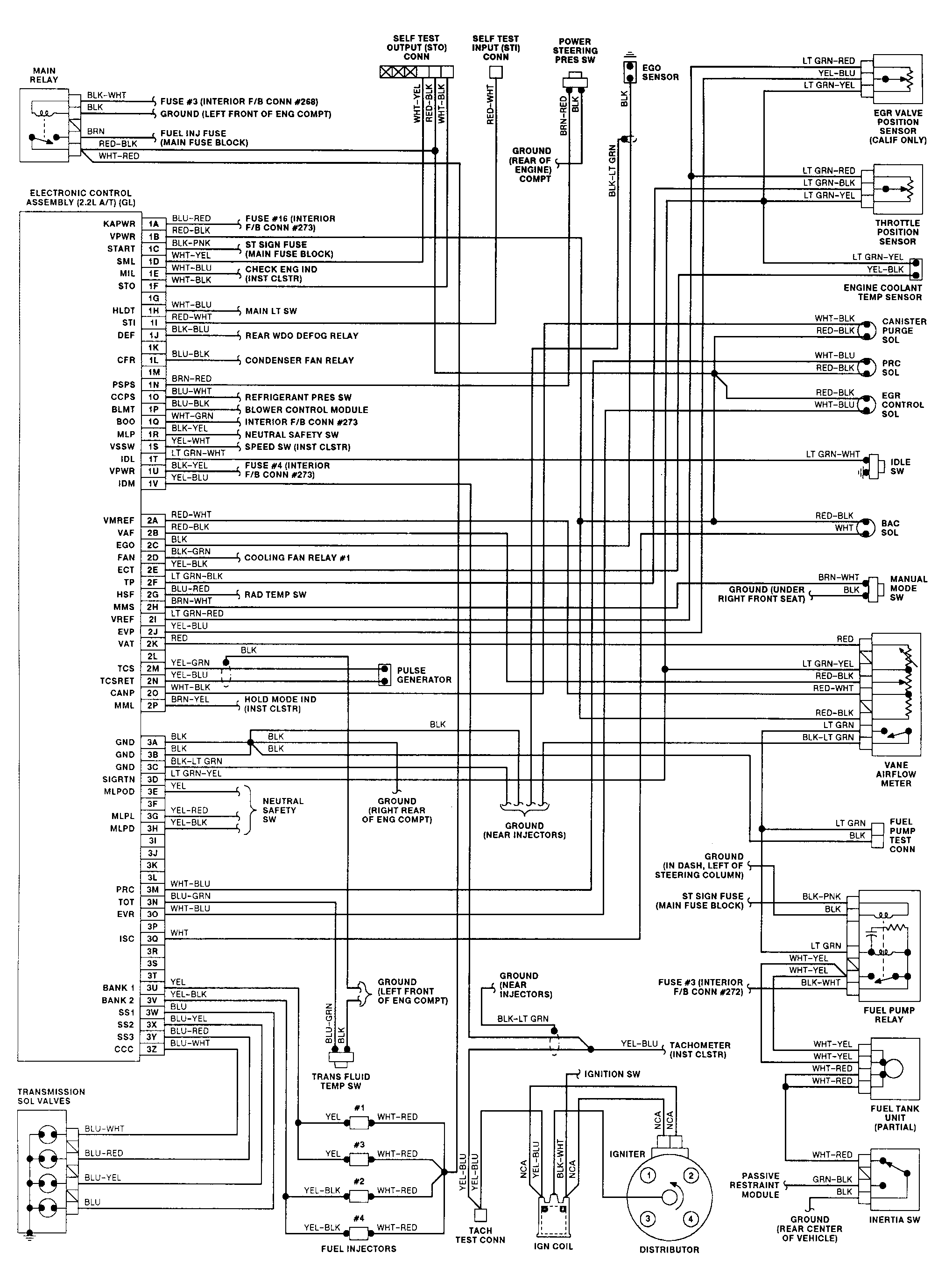

Fig 1: EEC Wiring Diagram (Probe 2.2L Non-Turbo With A/T)
G92J04682

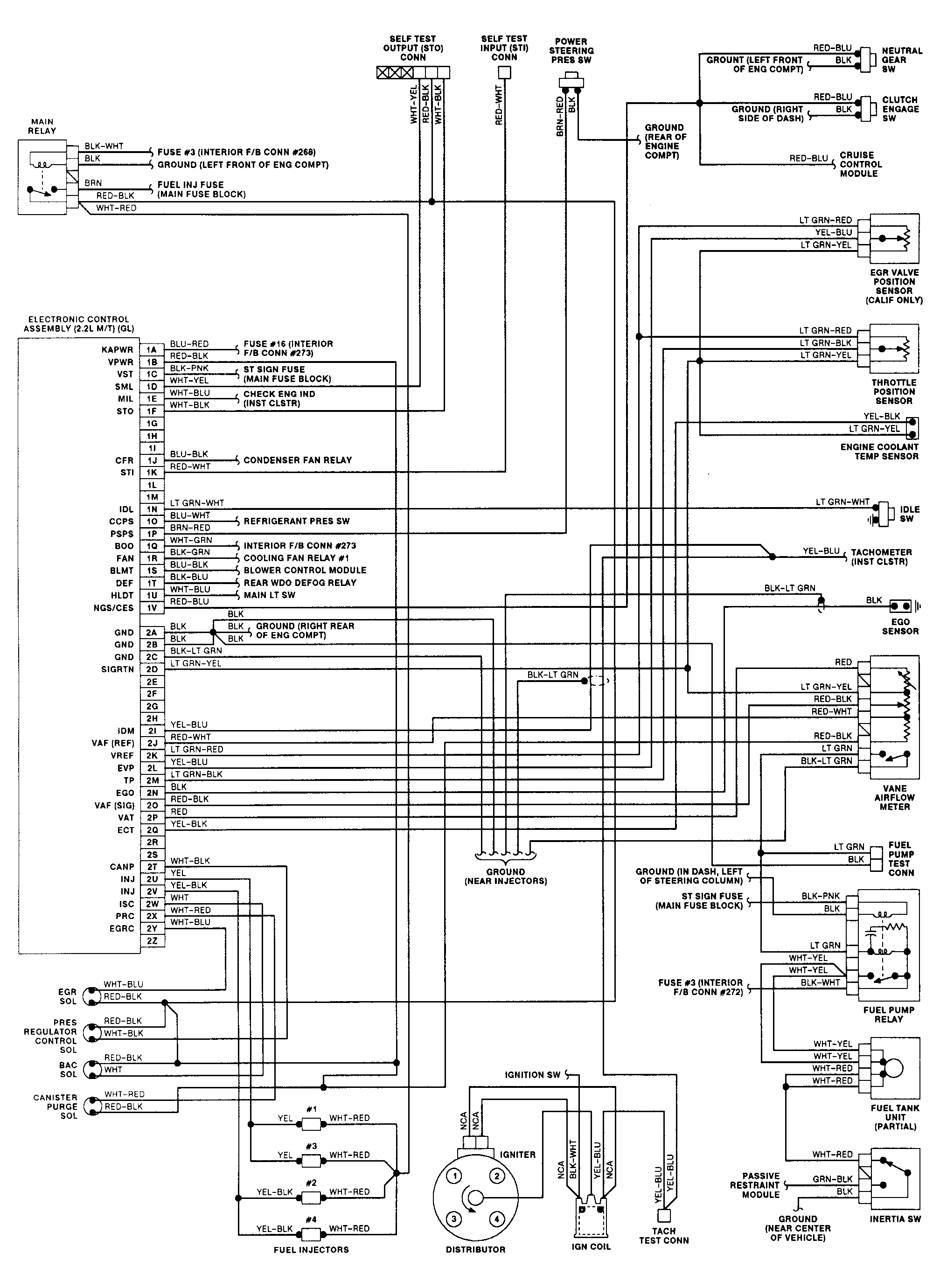

Fig 2: EEC Wiring Diagram (Probe 2.2L Non-Turbo With M/T)
G92B04683

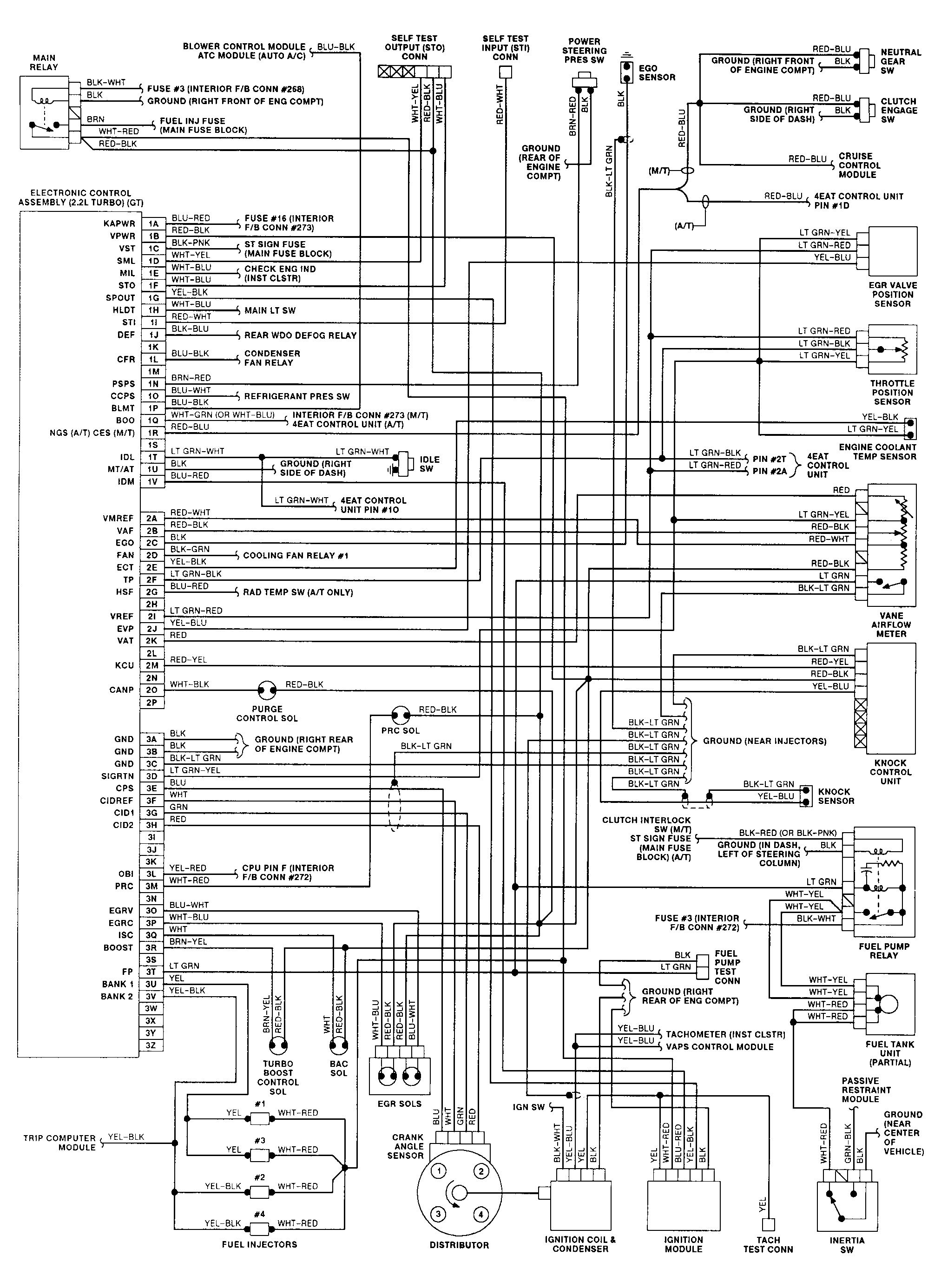

Fig 3: EEC Wiring Diagram (Probe 2.2L Turbo)
G92D04684

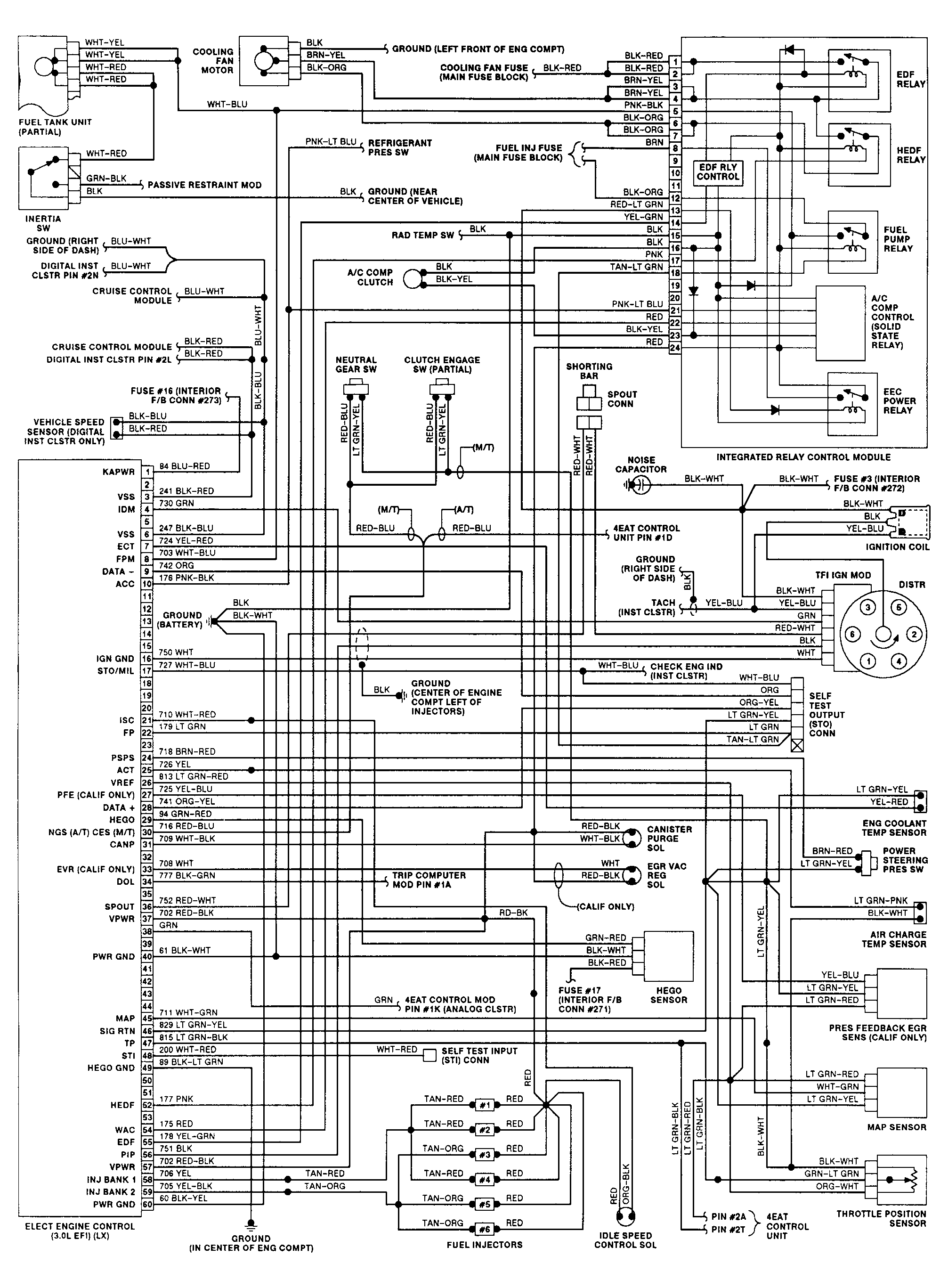

Fig 4: EEC-IV Wiring Diagram (Probe 3.0L)
G92E04689
