Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|

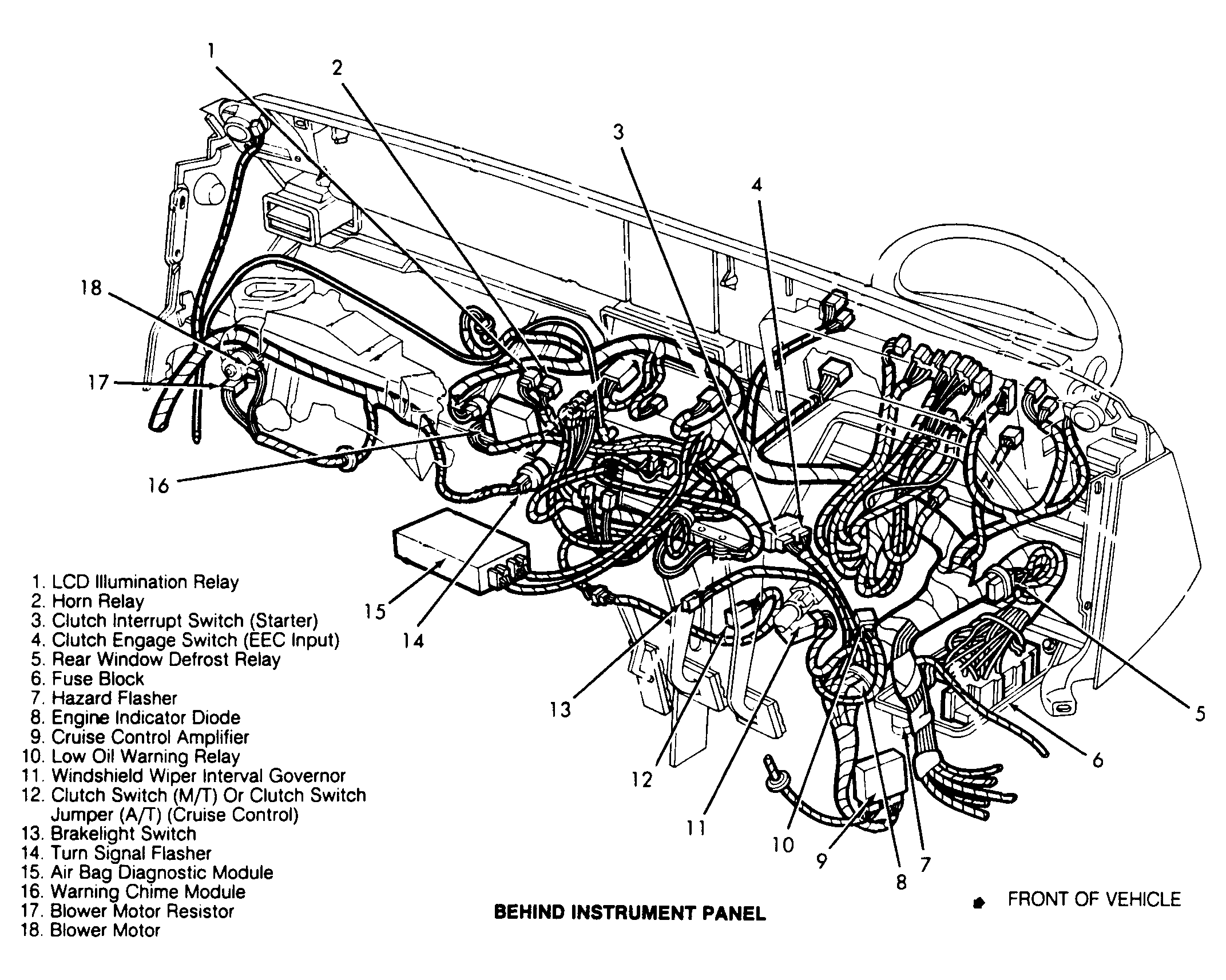

| Fuse Block | Behind left end of instrument panel. See Figure . | ||
| Fusible Links | |||
| "A", "B" & "C" (Black) | At starter relay. | ||
| "D" & "H" (Brown) | At starter relay. | ||
| "E" (Brown) | |||

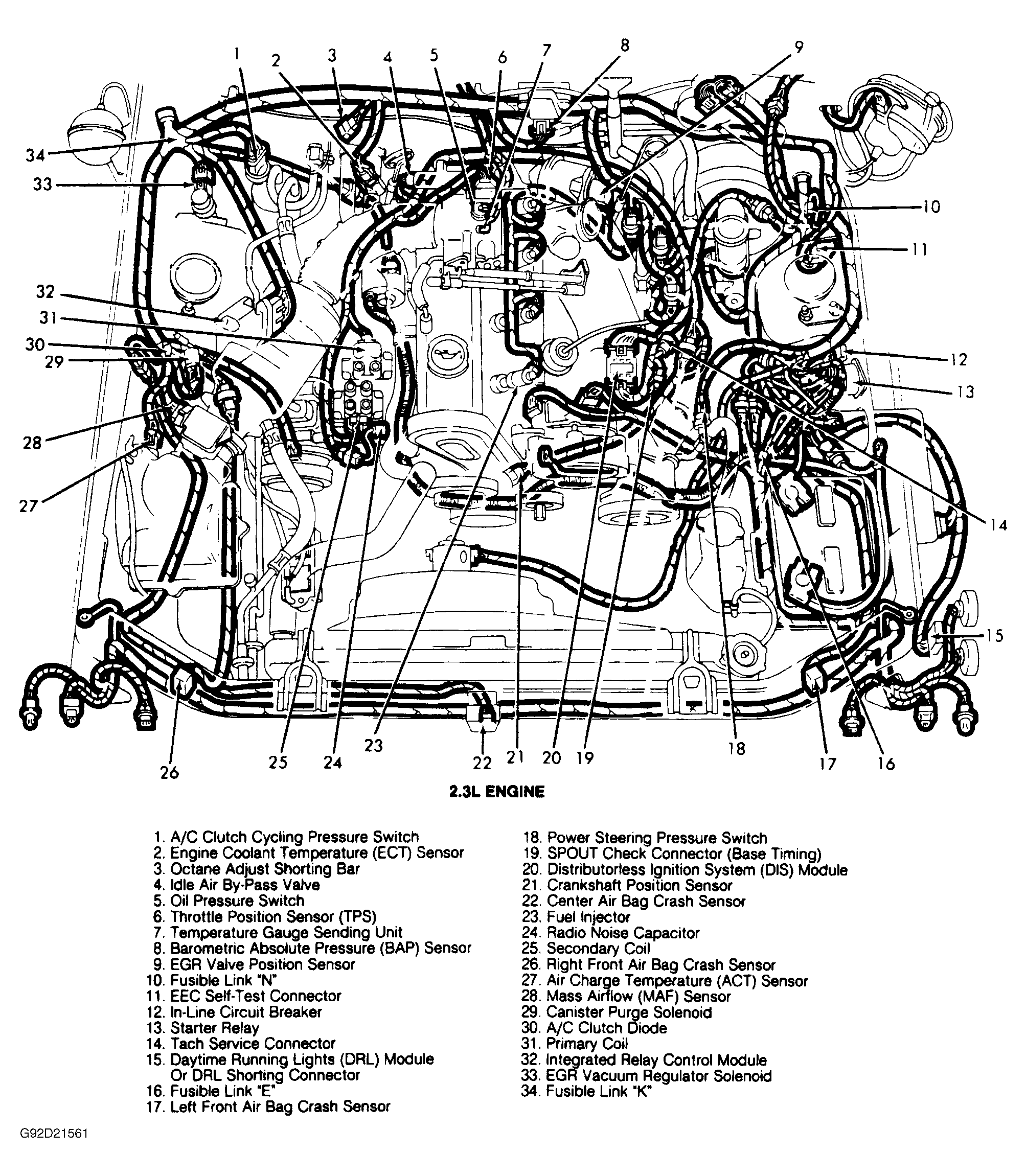

| 2.3L | At starter relay. See Figure . | ||

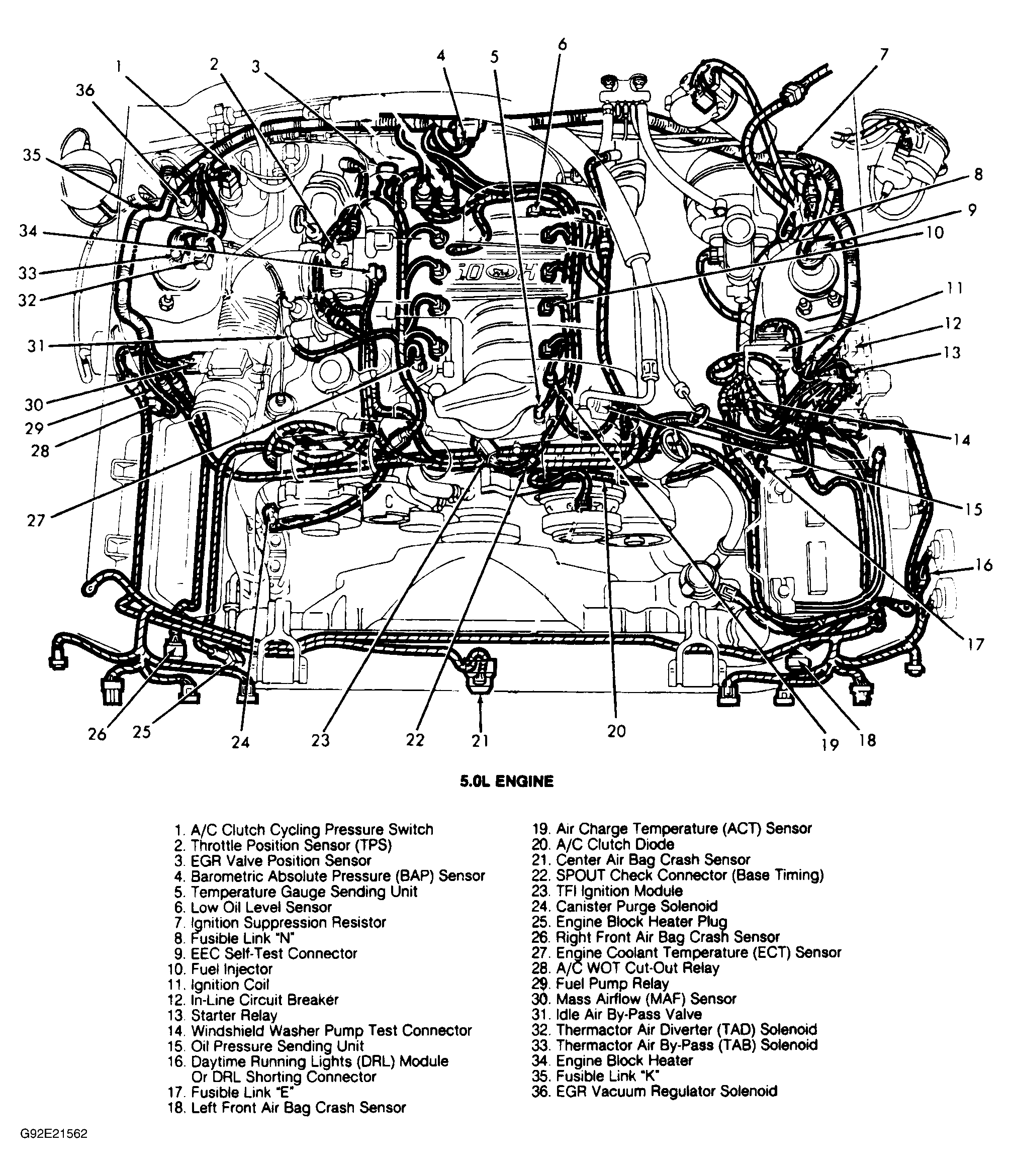

| 5.0L | At starter relay. See Figure . | ||
| "F" (Green) | At starter relay. | ||
| "G" | |||
| 2.3L (Brown) | At starter relay. | ||
| 5.0L (Black) | At starter relay. | ||
| "J" (Dark Blue) | At starter relay. | ||
| "K" (Dark Blue) | |||
| 2.3L | In engine bay, behind right strut tower. See Figure . | ||
| 5.0L | In engine bay, behind right strut tower. See Figure . | ||
| "N" (Dark Blue) | |||
| 2.3L | In engine bay, behind left strut tower. See Figure . | ||
| 5.0L | In engine bay, behind left strut tower. See Figure . | ||
| In-Line Circuit Breaker | |||
| 2.3L | At starter relay. See Figure . | ||
| 5.0L | At starter relay. See Figure . | ||
