Power Window Motor: Removal
CAUTION:
Prior to motor removal, ensure that the regulator arm is in a fixed position to prevent counterbalance spring unwind.
- Raise the window to the full-up position, if possible. If the glass cannot be raised and is in a partially down position, it must be supported so that it will not fall into the door well during motor removal.
- Disconnect battery ground cable.
- Remove door trim panel and watershield. See DOOR TRIM PANEL .
- Disconnect window motor connector.

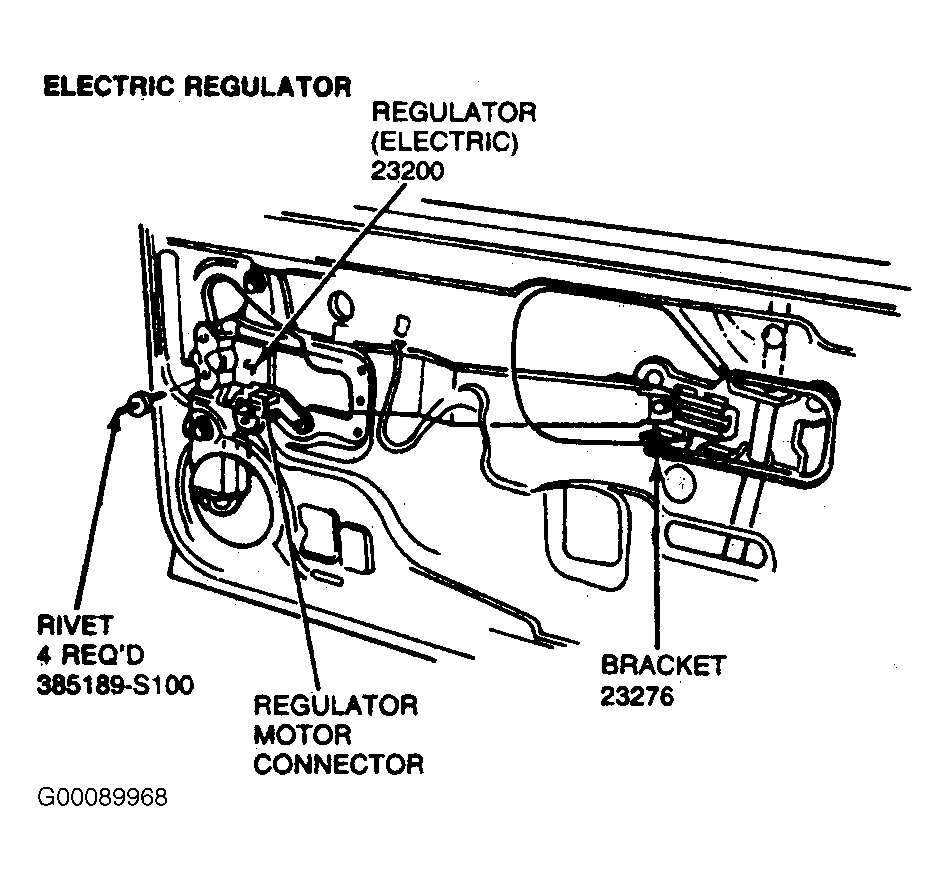

- Remove the three window motor mounting screws and disengage the motor and drive assembly from the regulator quadrant gear. See Figure.
