COMPONENT LOCATIONS

Component Location
Fuse Block Behind Left Side Of Instrument Panel, Left Of The Steering Column
In-Line Circuit Breaker
2.3L Front Of Left Fender Apron, On Starter Relay
5.0L Front Of Left Fender apron, On Starter Relay
Left Front Window Motor In Lower Front Of Left Door
Left Rear Window Motor In Front of Left Rear Quarter Panel
Master Window Control Switch Center Of Front Left Door, In Armrest
Right Front Window Motor In Lower Front Of Right Door
Right Rear Window Motor In Front Of Right Rear Quarter Panel
Right Window Control Switch Center Of Right Door, In Armrest
Window Safety Relay Behind Top Of Left Cowl Panel
Fig 1: Locating Power Window Circuit Breaker (2.3L)
G92D21561Courtesy of FORD MOTOR CO.
Fig 2: Locating Power Window Circuit Breaker (5.0L)
G92E21562Courtesy of FORD MOTOR CO.

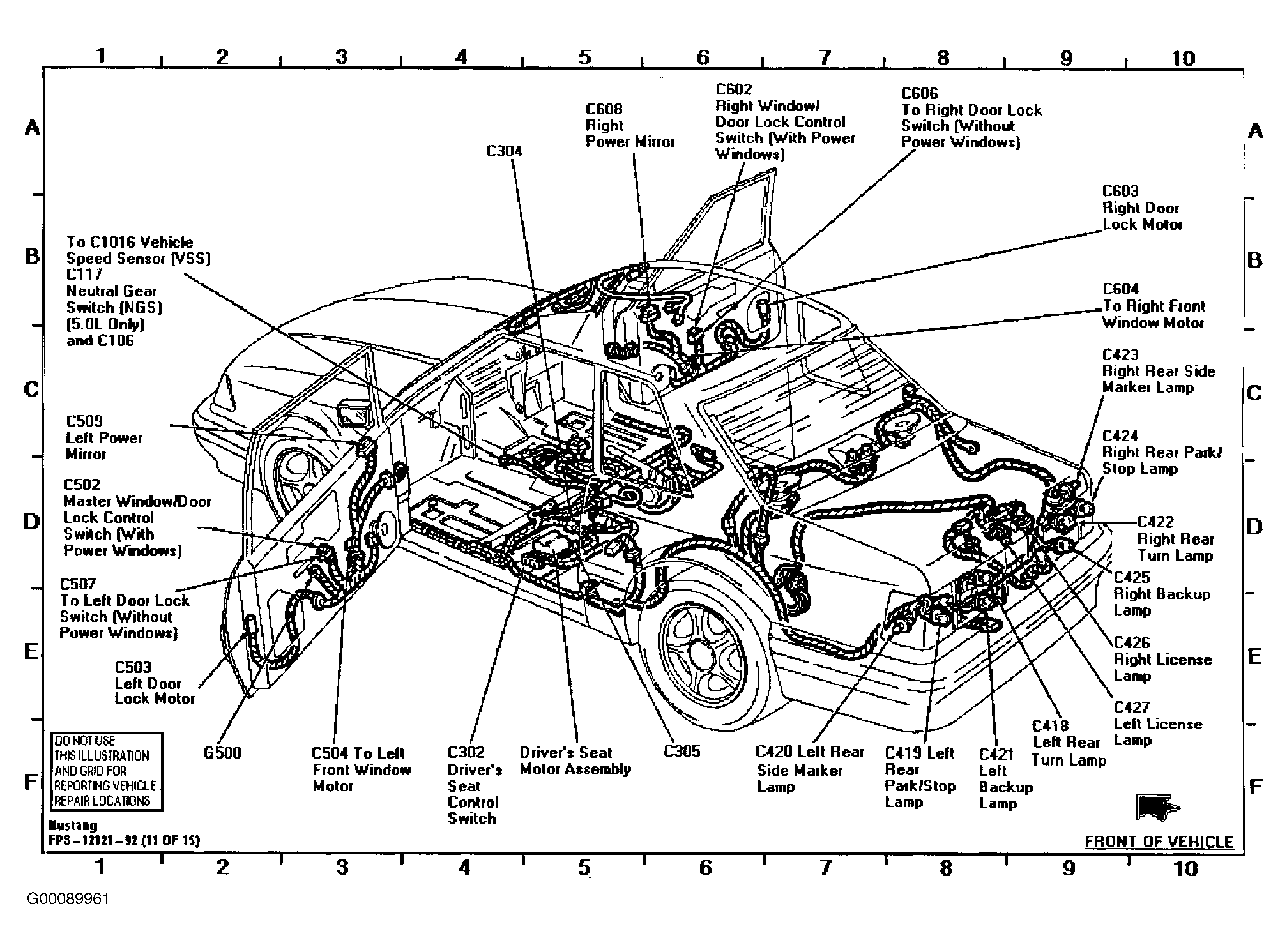

Fig 3: Locating Power Window Motor & Control Switch
G00089961Courtesy of FORD MOTOR CO.

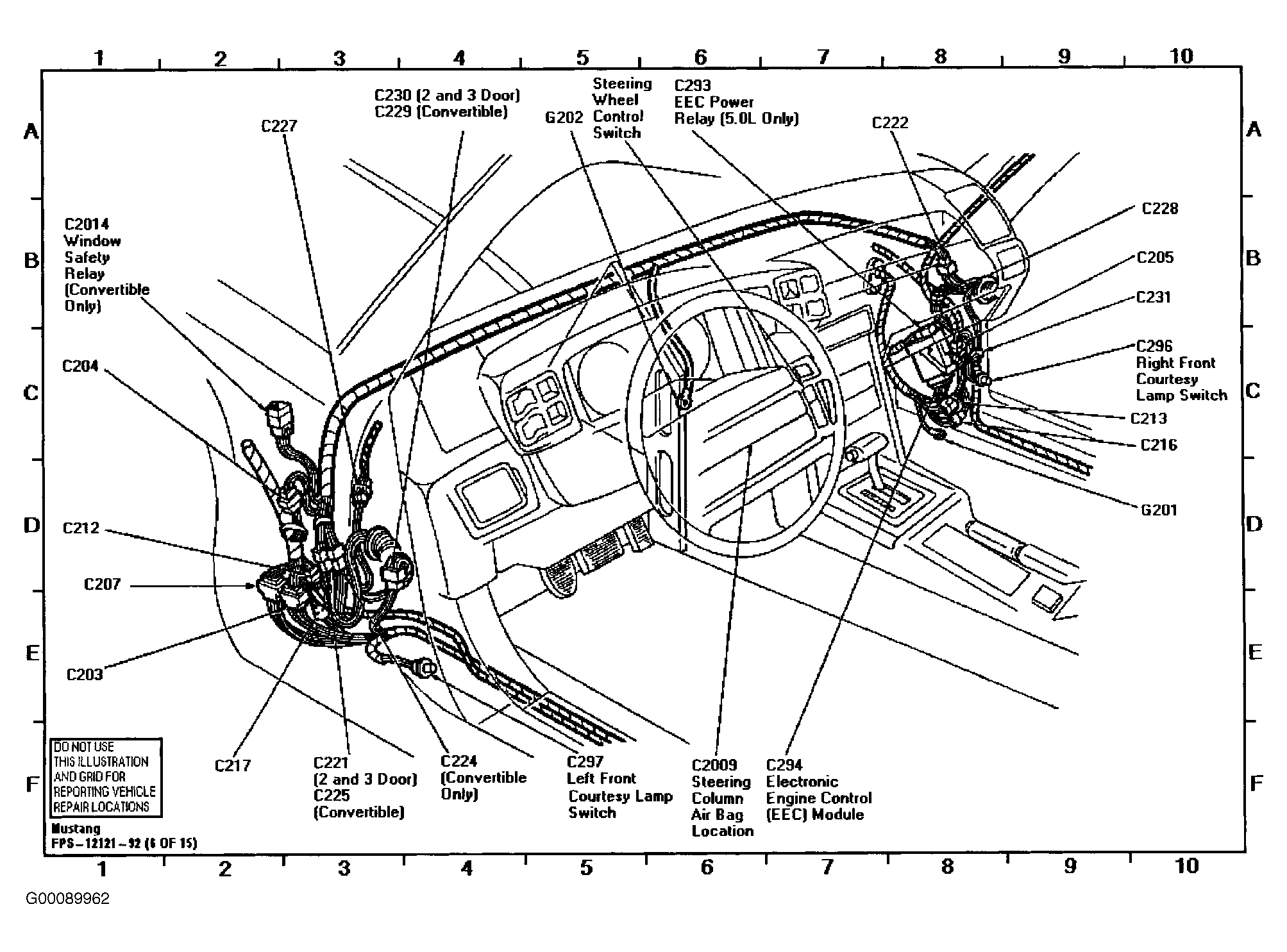

Fig 4: Locating Power Window Safety Relay
G00089962Courtesy of FORD MOTOR CO.
