Alternator & Regulator: Description

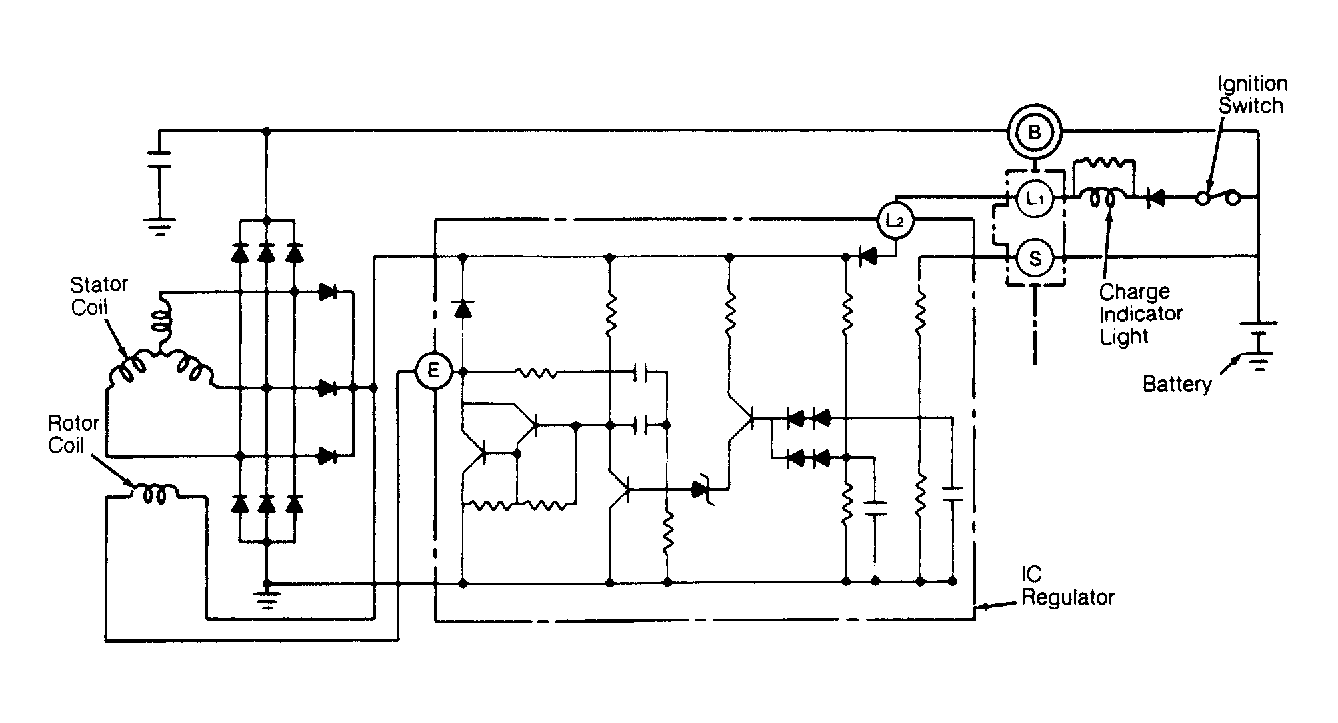

Mitsubishi alternator is a 50-amp, conventional 3-phase, self-rectifying type unit, containing 6 main diodes, a smaller diode trio, and a case-mounted Integrated Circuit (IC) regulator. A charge indicator light in the instrument panel indicates charging system malfunctions. See Fig 1 .
