All Other Models

Vehicle may be raised on single-post or twin-post swiveling arm, or ramp-type drive hoist as long as wide hoist adapters are used. If using single-post hoist, ensure lifting arms, pads or ramps are positioned at proper lifting points, and adequate underbody clearance is maintained.

If vehicle is to be raised on a twin-post hoist, use caution not to damage suspension, rear axle cover and/or steering linkage components. DO NOT allow lift pads to contact exhaust system components. See Fig 2 -Fig 7 .

CAUTION: If single-post hoist is being used, add additional weight on rear end of vehicle before removing rear axle, fuel tank, spare tire or liftgate. This will prevent vehicle from tipping as center of gravity changes.
Fig 1: Hoisting & Jacking Contact Points (Aerostar)
G92J22458Courtesy of FORD MOTOR CO.

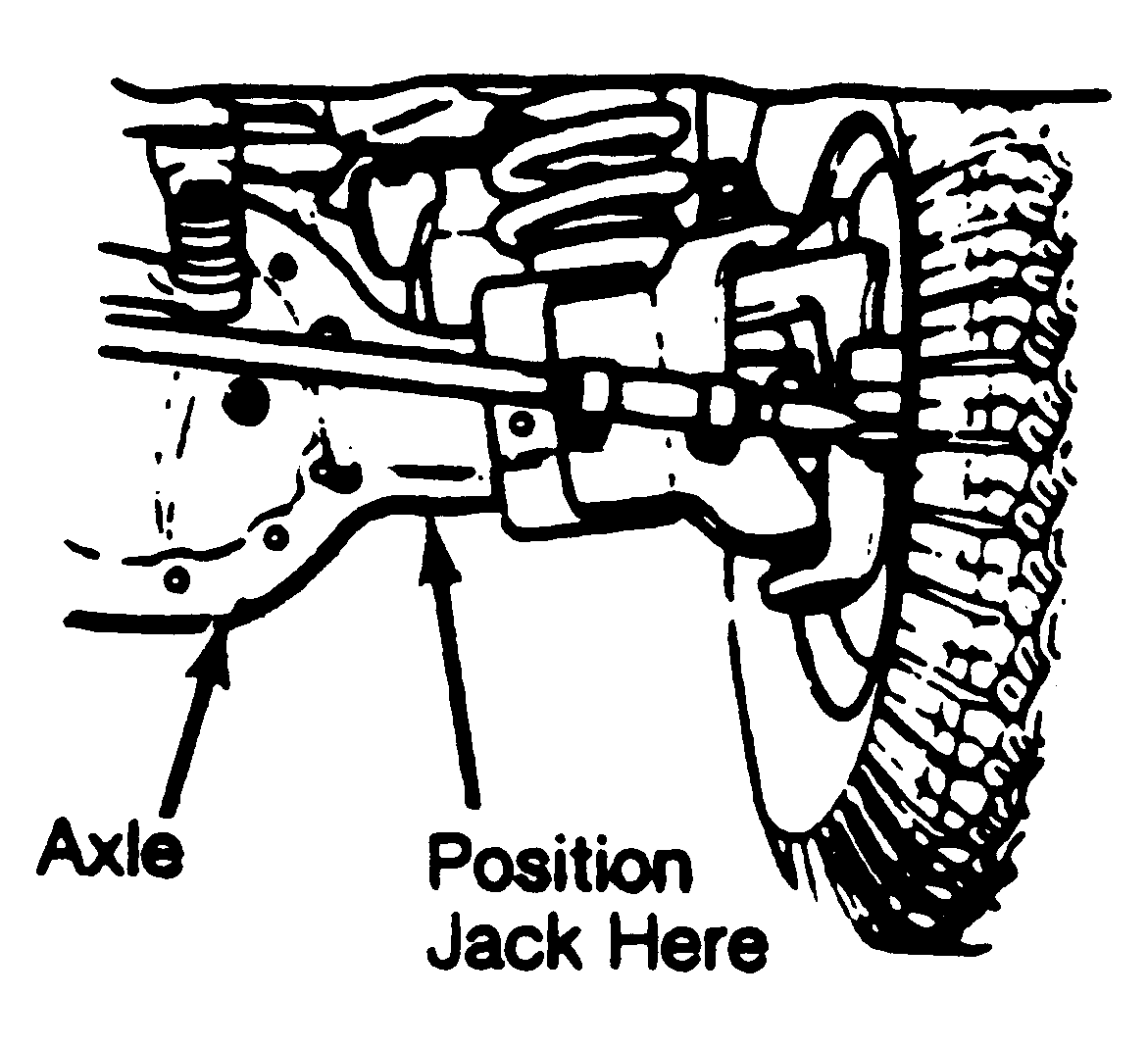

Fig 2: Front Jacking Point (Bronco & F150/350 4WD)
G117347Courtesy of FORD MOTOR CO.
Fig 3: Front Jacking Point (E150/250/350 & F250/350 2WD)
G117349Courtesy of FORD MOTOR CO.
Fig 4: Rear Jacking Point (E150/350 & F150/350 2WD & 4WD)
G117351Courtesy of FORD MOTOR CO.
Fig 5: Front Jacking Point (Explorer & Ranger 2WD)
G117352Courtesy of FORD MOTOR CO.
Fig 6: Front Jacking Point (Explorer & Ranger 4WD)
G117353Courtesy of FORD MOTOR CO.
Fig 7: Rear Jacking Point (Bronco, Explorer & Ranger)
G117354Courtesy of FORD MOTOR CO.
