Description & Operation: Description

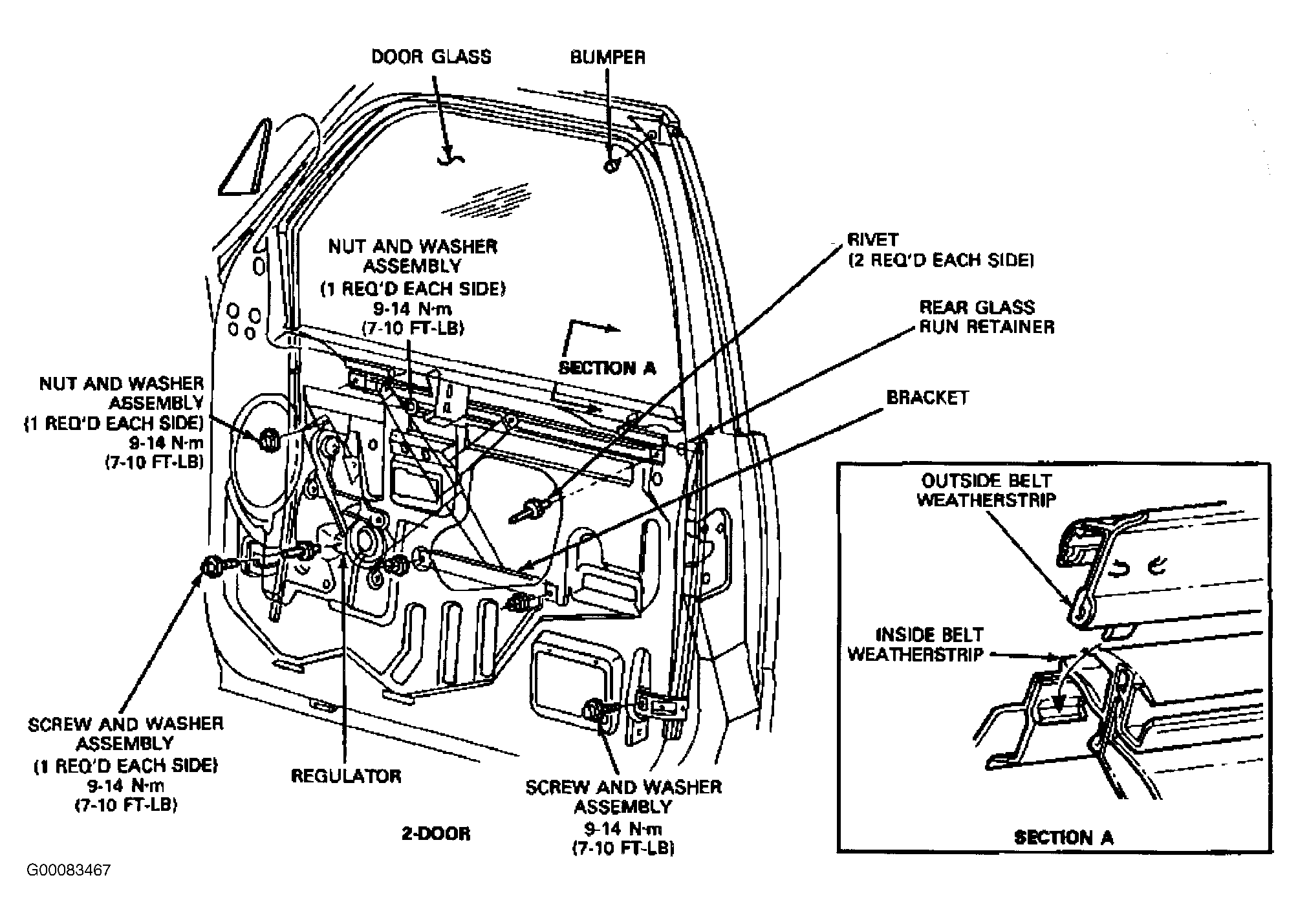

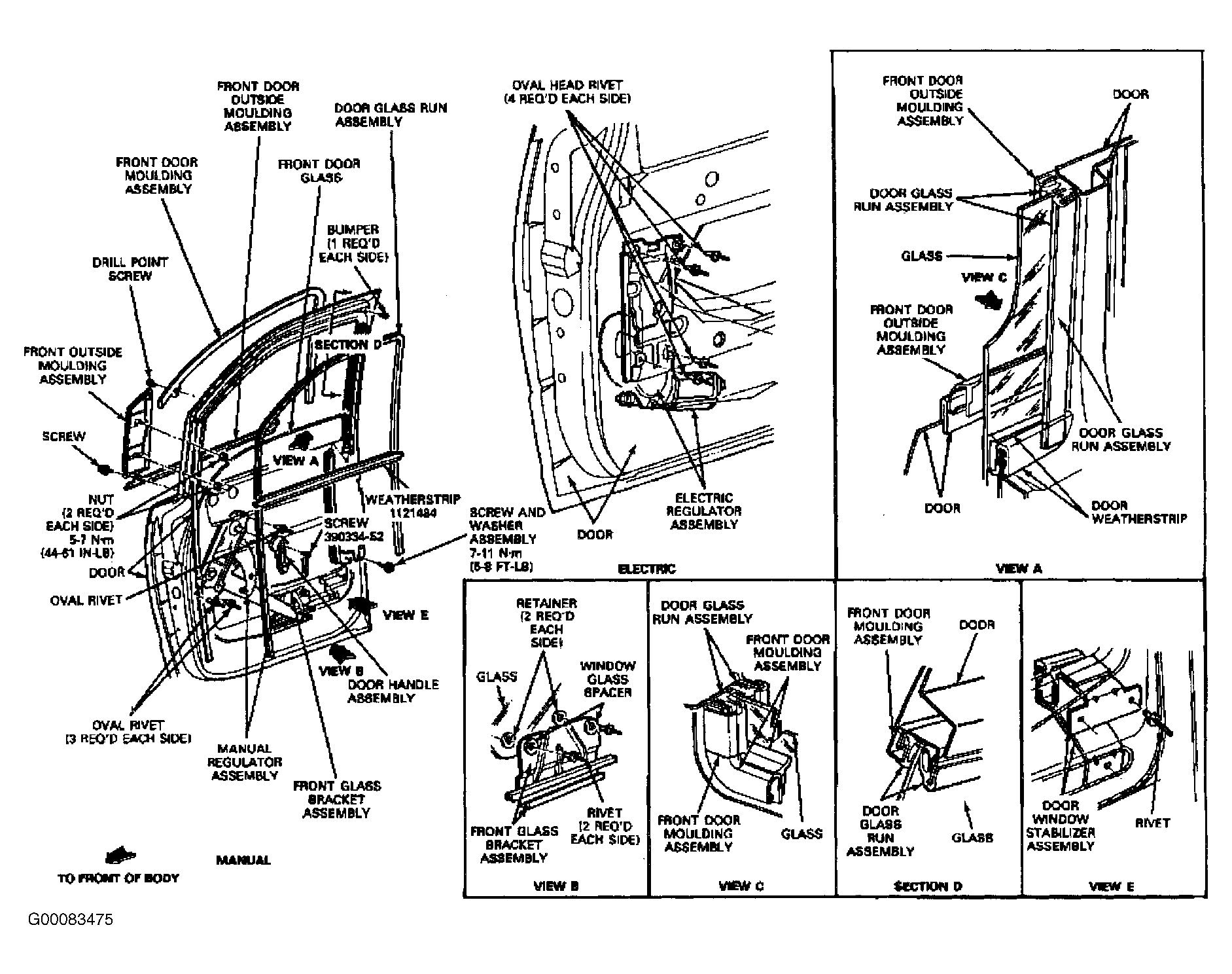

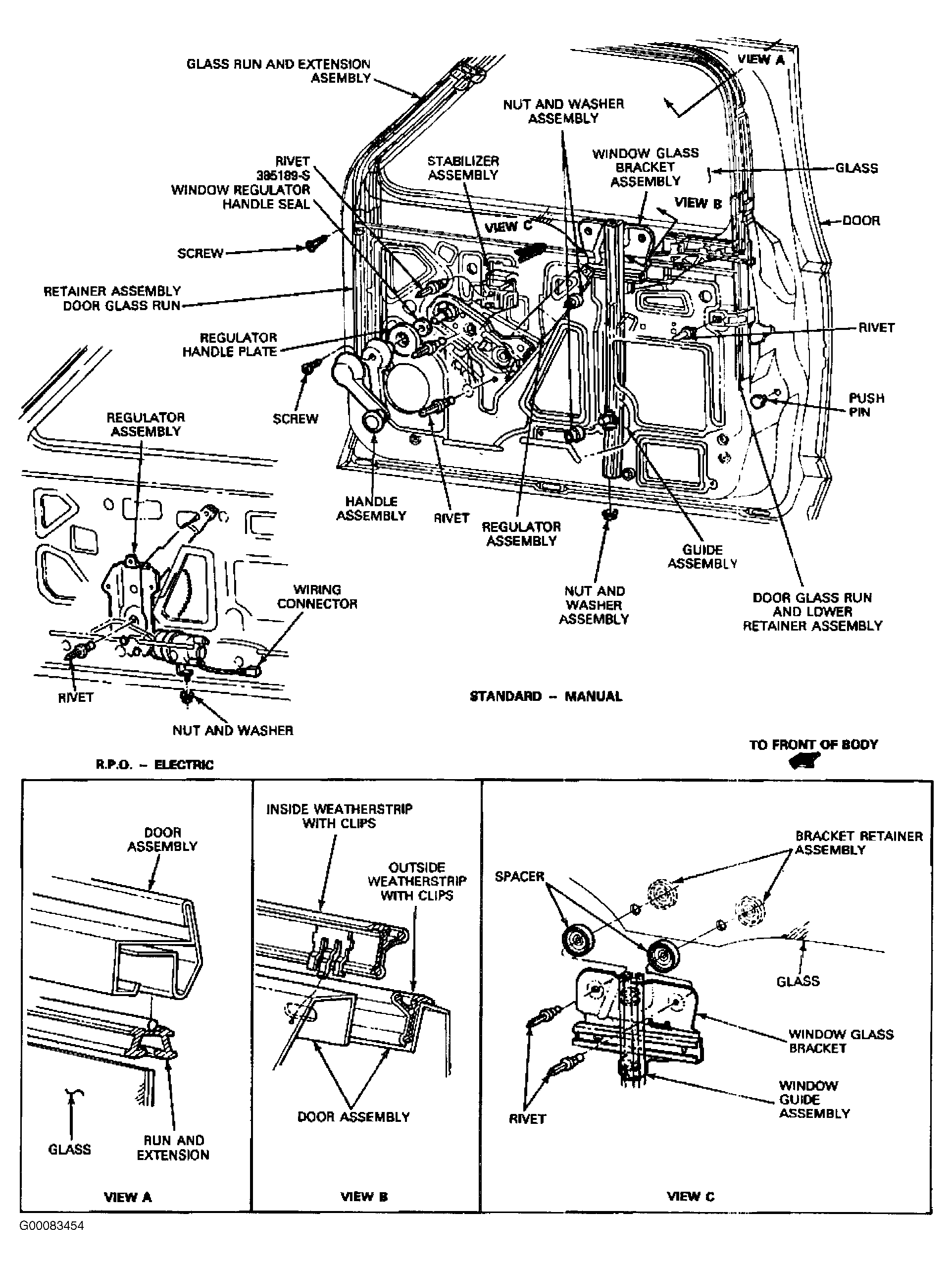

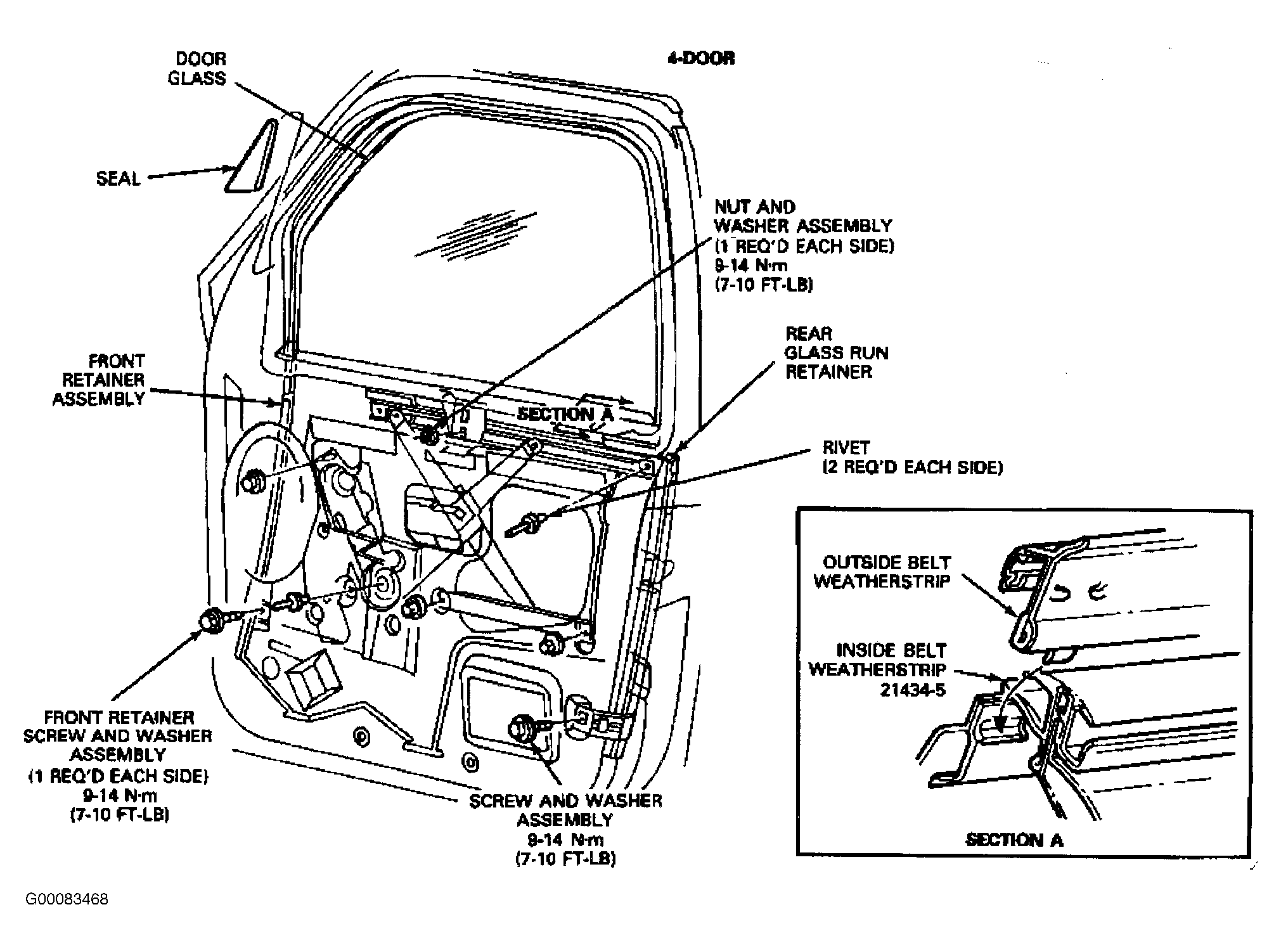

The power window system consists of a regulator, motor and switch. The power window switch sends a signal to the power window module which in turn sends a voltage signal to the motor to move the window up or down. See Figure , Figure , Figure or Figure .
