Control Pressure Test Results

Compare recorded control pressures to control pressures listed in table. See appropriate CONTROL PRESSURE SPECIFICATIONS table. If control pressures are outside of specified ranges, use flow chart to determine cause of trouble. See Fig 1.

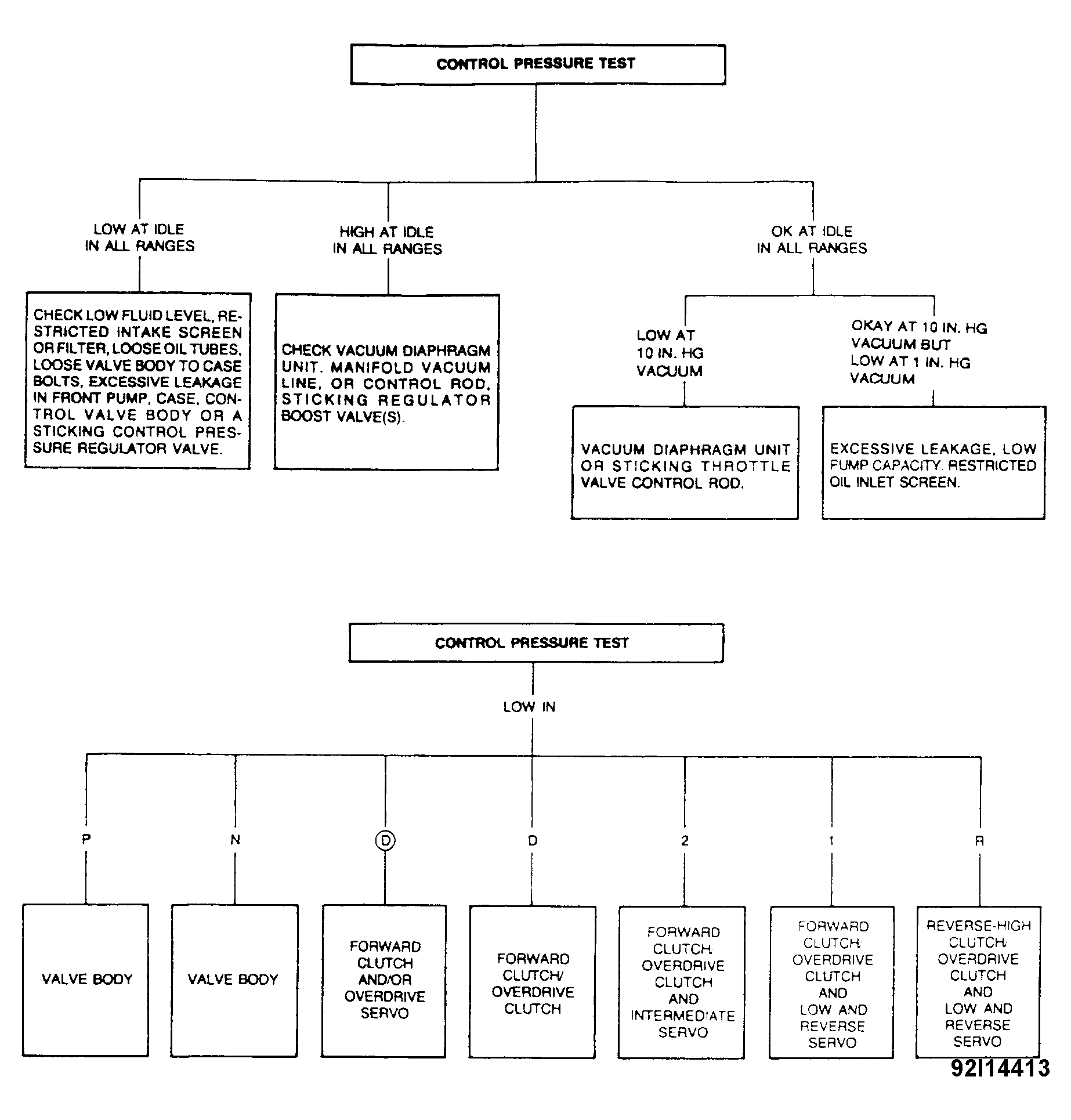

Fig 1: Control Pressure Test Result Flow Chart

Courtesy of FORD MOTOR CO.
