Removal & Installation

Remove transmission oil pan and filter screen with "O" rings. Remove low-reverse servo bolts. Remove servo cover, gasket, piston and spring. See Fig 1. To install, reverse removal procedure.

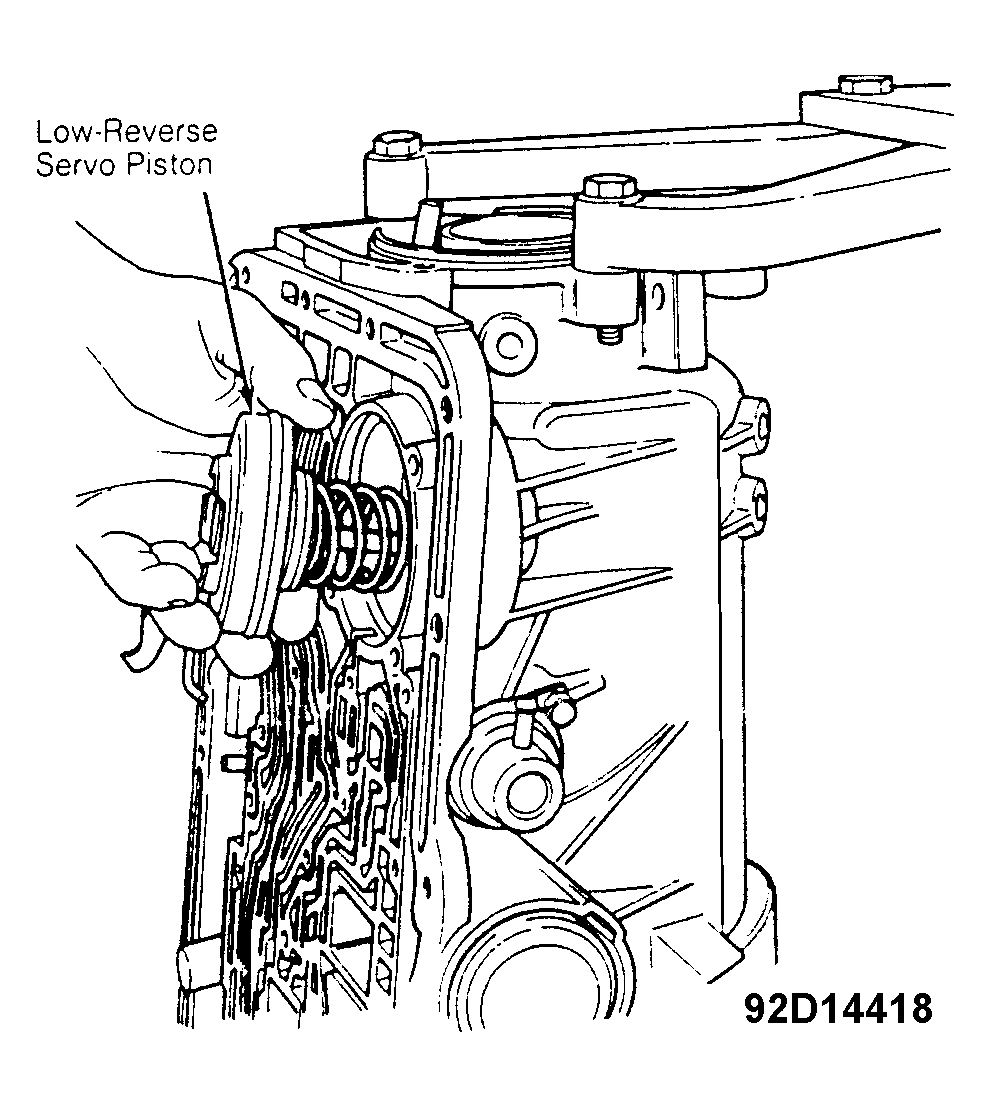

Fig 1: Removing & Installing Low-Reverse Servo Assembly

Courtesy of FORD MOTOR CO.
