Explorer 2D Utility, 4WD, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
Wiring Diagrams

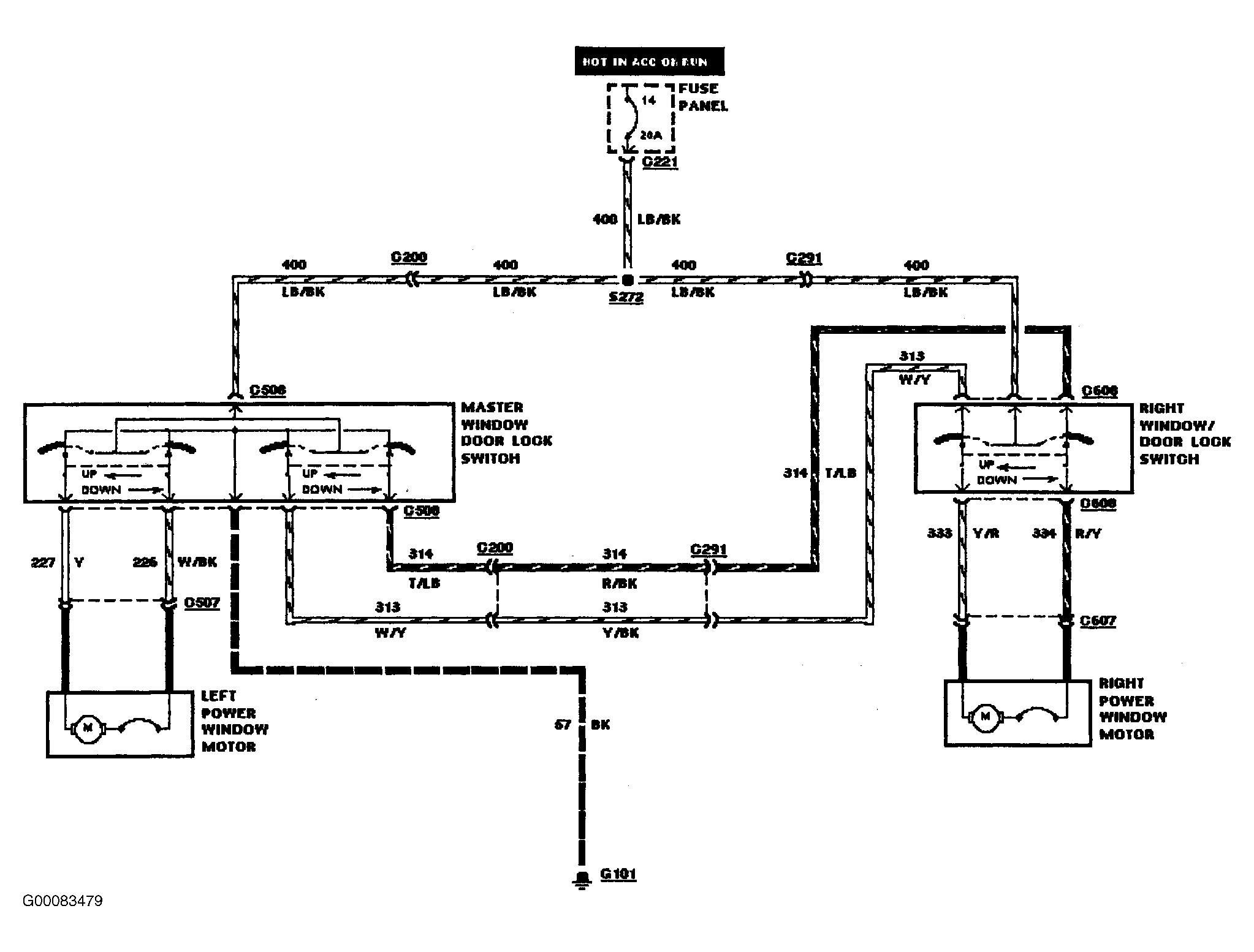

Fig 1: System Wiring Diagram (Aerostar)
Courtesy of FORD MOTOR CO.
Fig 2: System Wiring Diagram (Explorer 2-Door)
Courtesy of FORD MOTOR CO.
Fig 3: System Wiring Diagram (Explorer 4-Door)
Courtesy of FORD MOTOR CO.
Fig 4: System Wiring Diagram (Ranger)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
