Component Disassembly & Reassembly: Notes
NOTE:

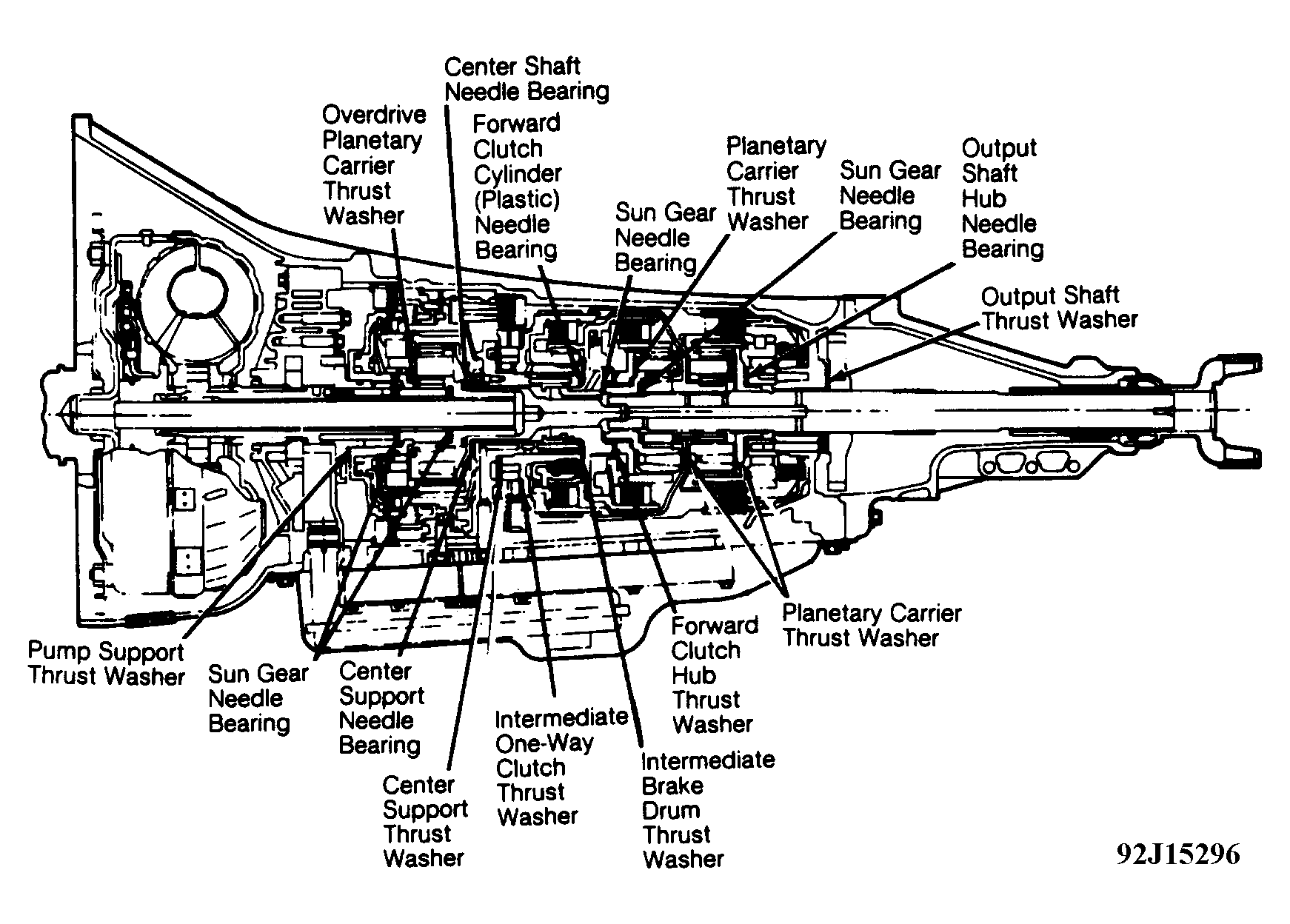

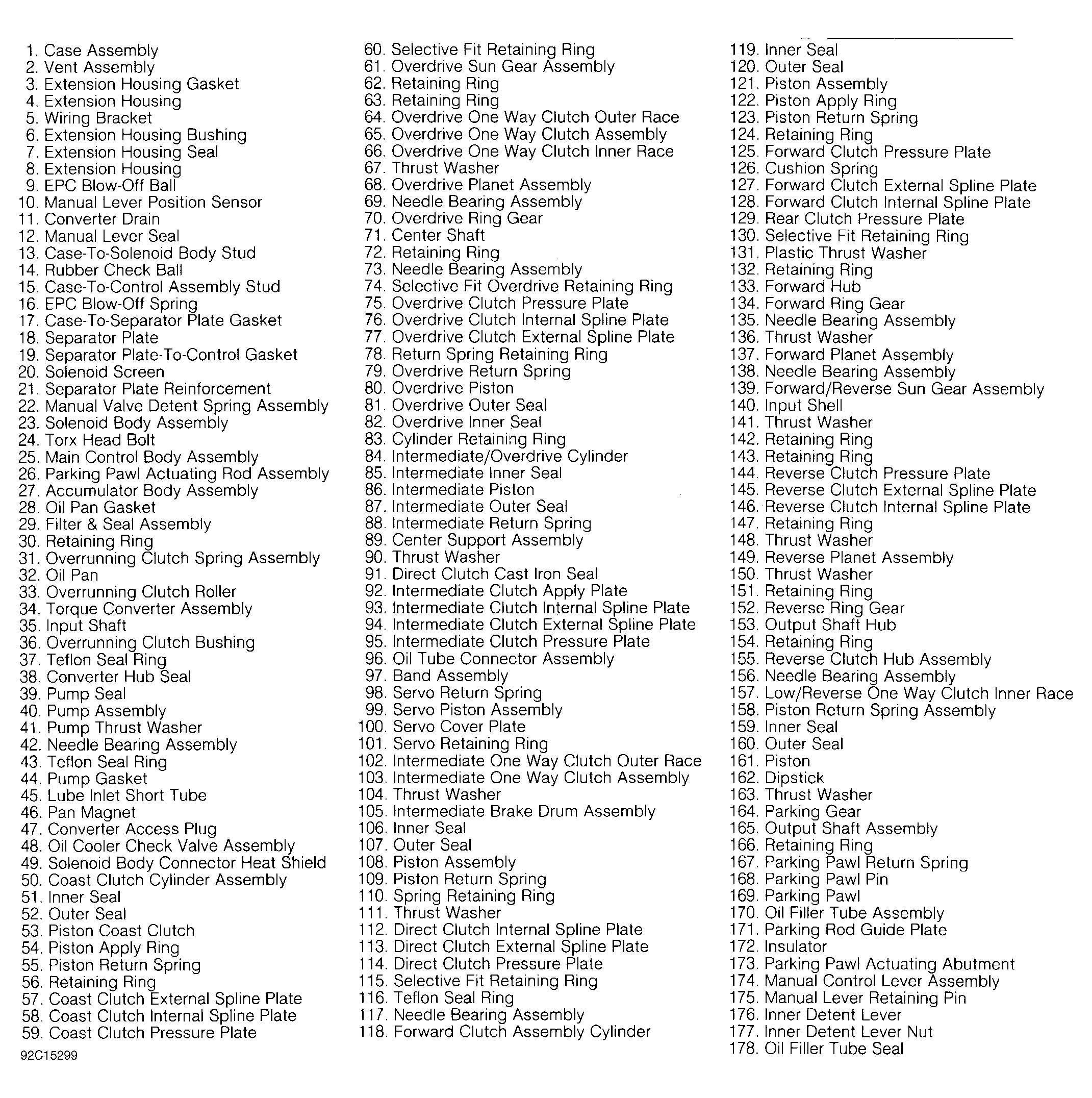

Exploded views of internal parts, thrust washer and needle bearing locations can be found in
Figure
-
Figure
