Input Shell: Disassembly

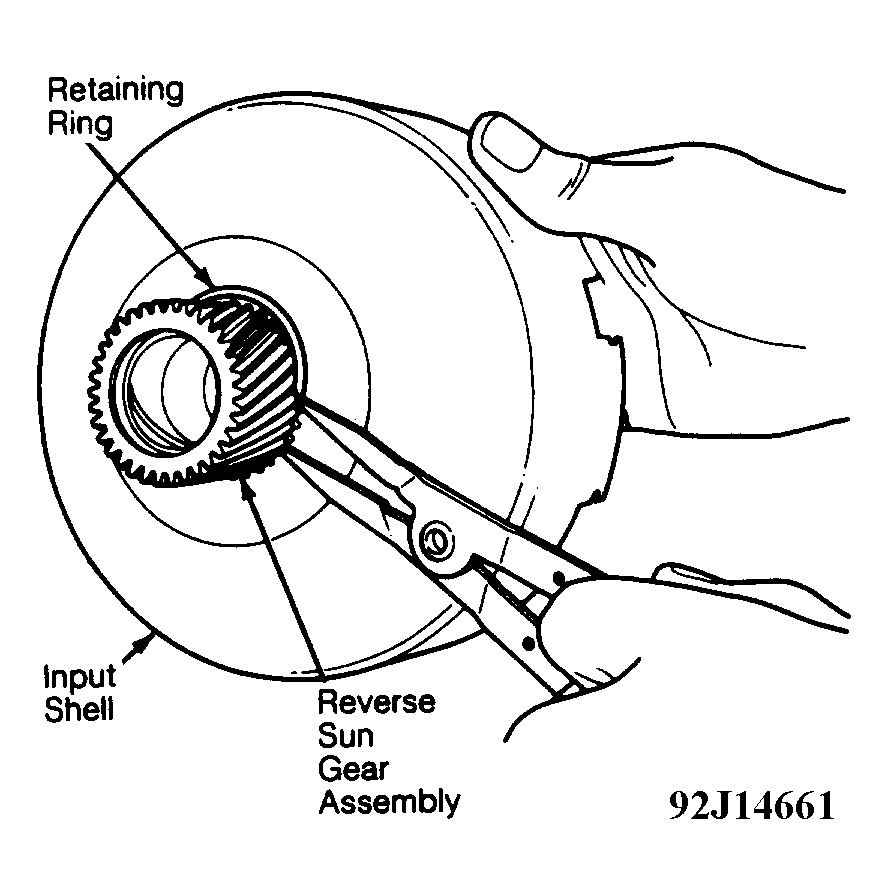

Remove retaining ring from reverse sun gear. See Figure. Remove thrust washer from input shell. Remove reverse sun gear.
