Control Valve Body: Reassembly

Install all valves, plungers, plugs and springs into control valve and accumulator bodies. See Fig 1. To complete reassembly, reverse disassembly procedure. See VALVE BODY & INTERMEDIATE BAND SERVO  under ON-VEHICLE SERVICE.

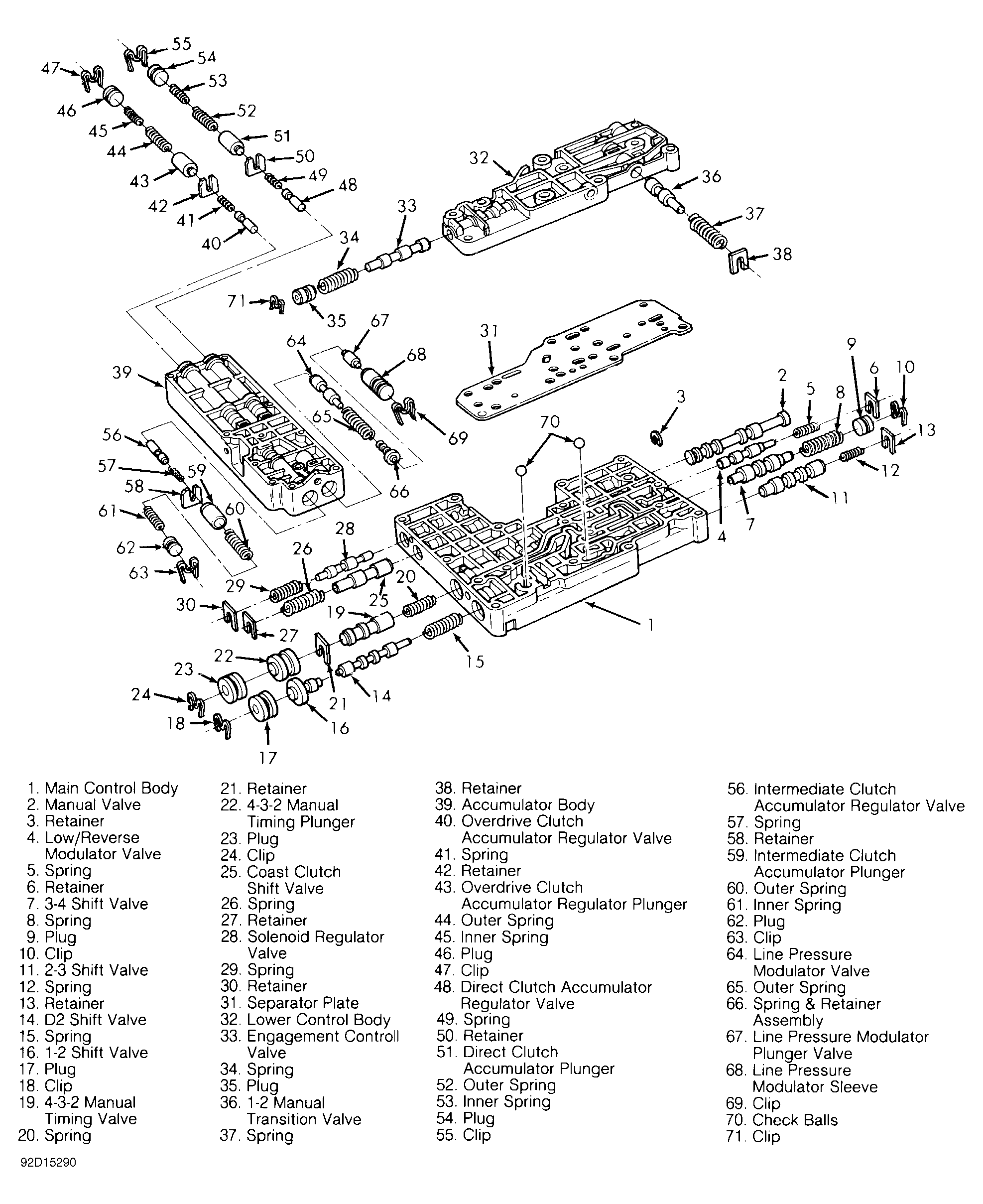

Fig 1: Exploded View Of Valve Body

Courtesy of FORD MOTOR CO.
