Cutaway 7.3 M
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry Systems
>>
Wiring Diagrams
Wiring Diagrams

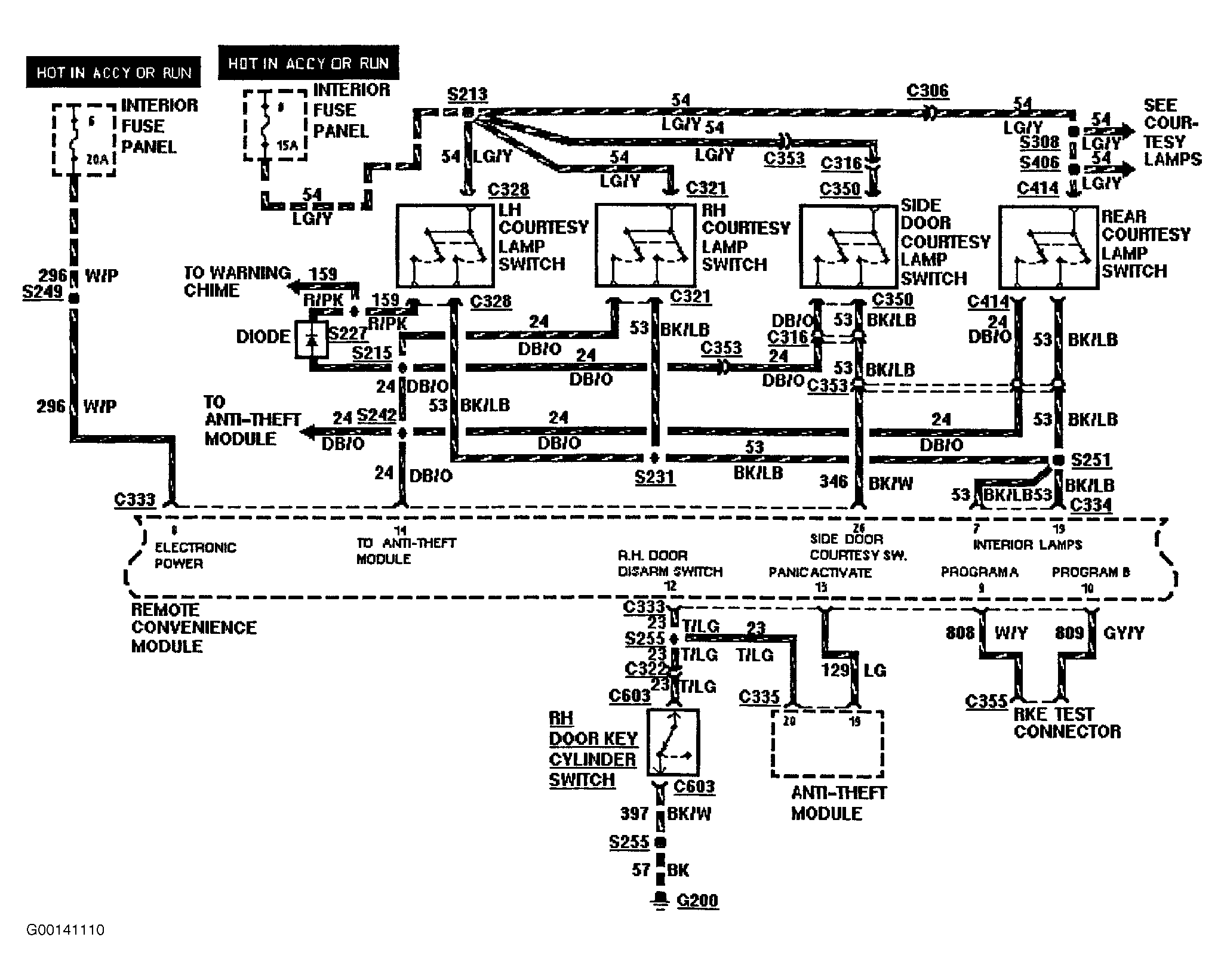

Fig 1: Remote Keyless Entry Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

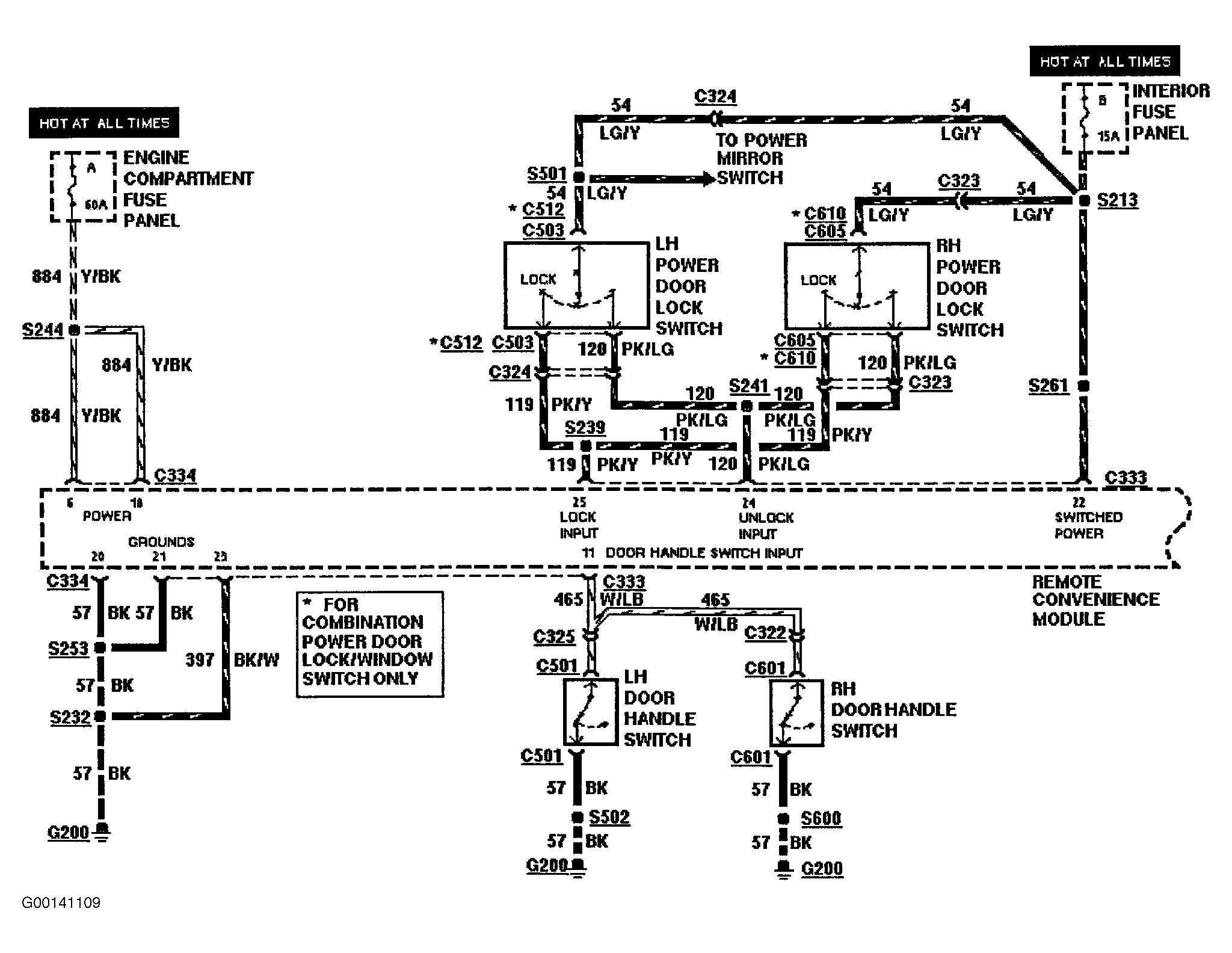

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

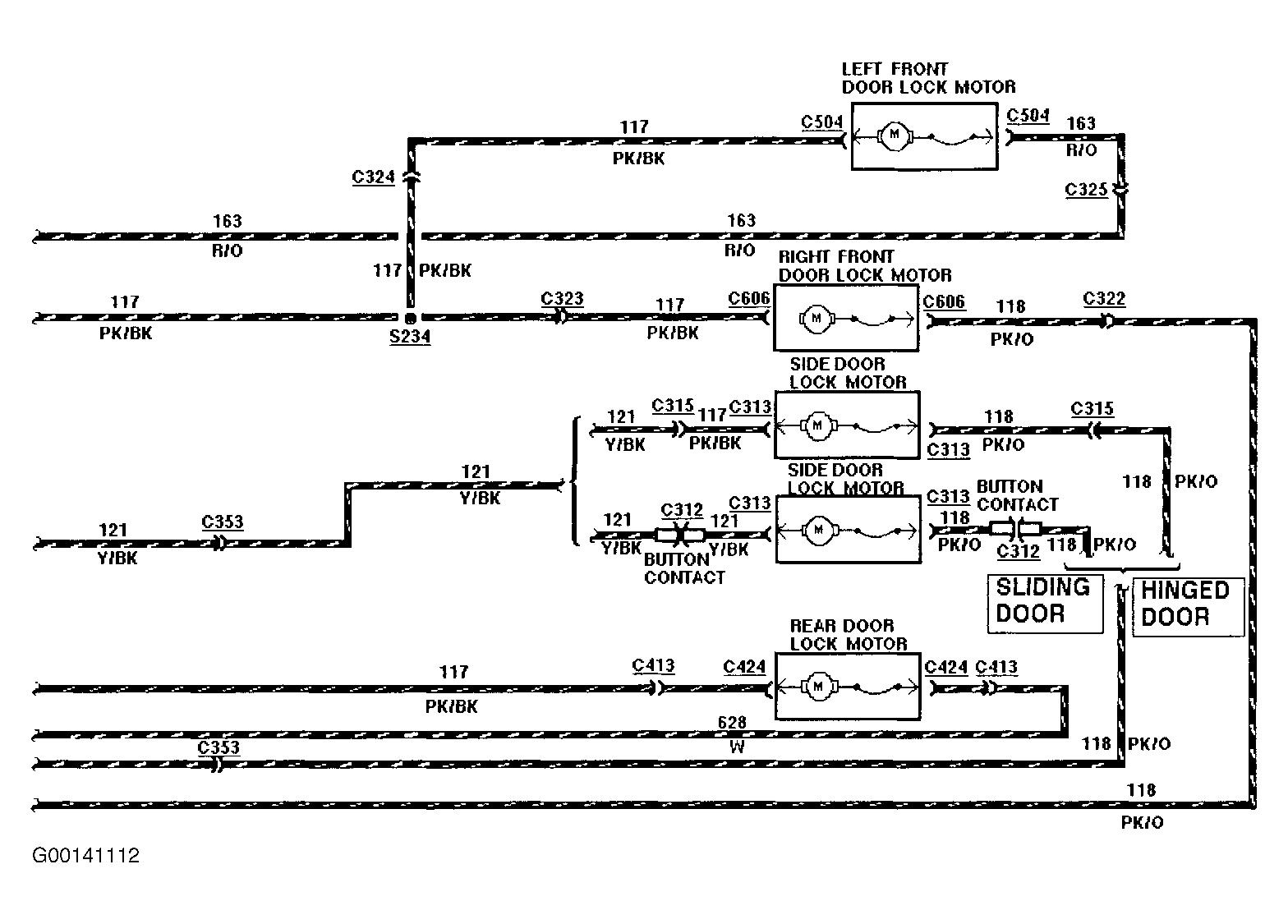

Fig 3: Remote Keyless Entry Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

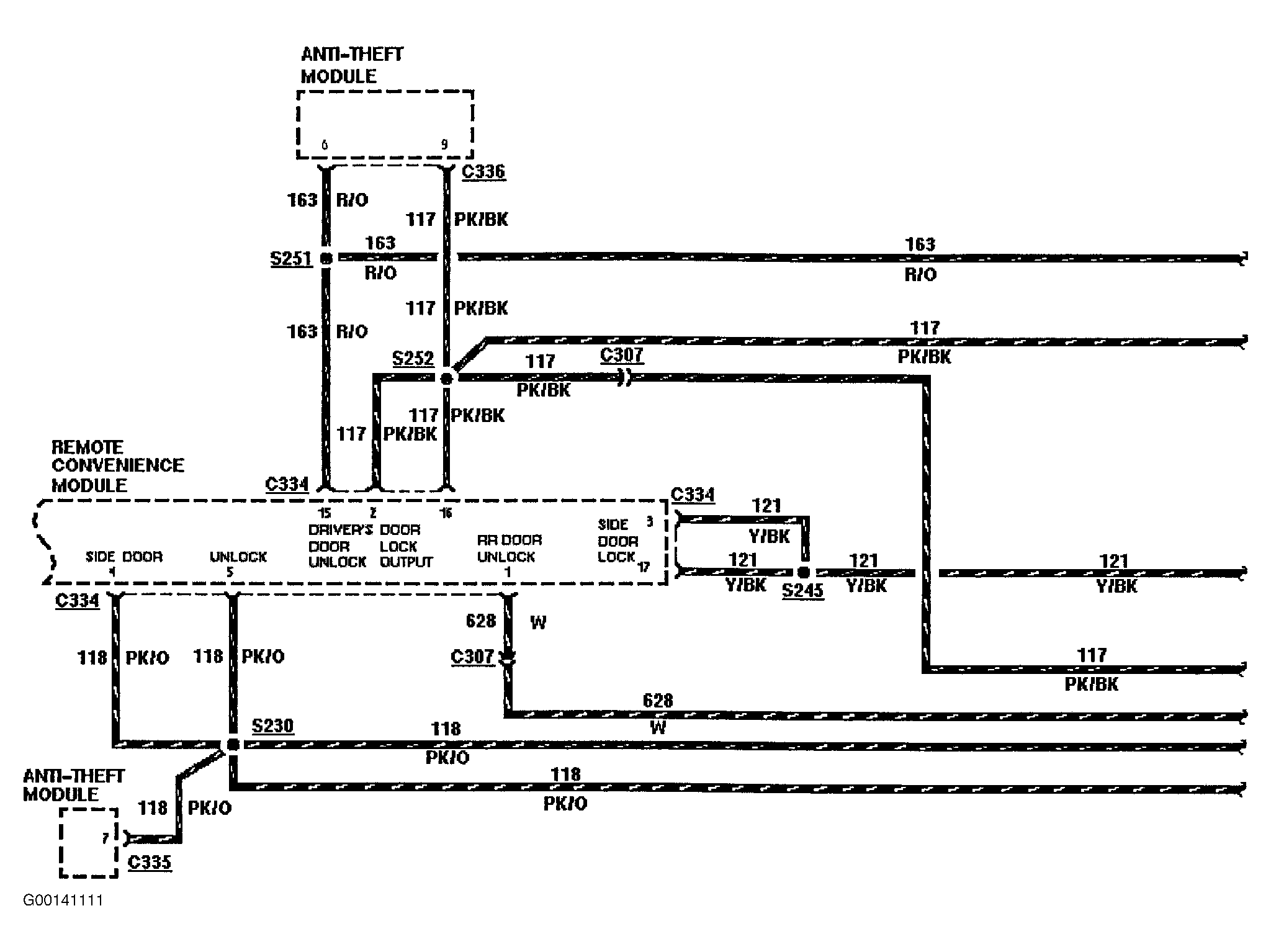

Fig 4: Remote Keyless Entry Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
