Wiring Diagrams
Wiring Diagrams

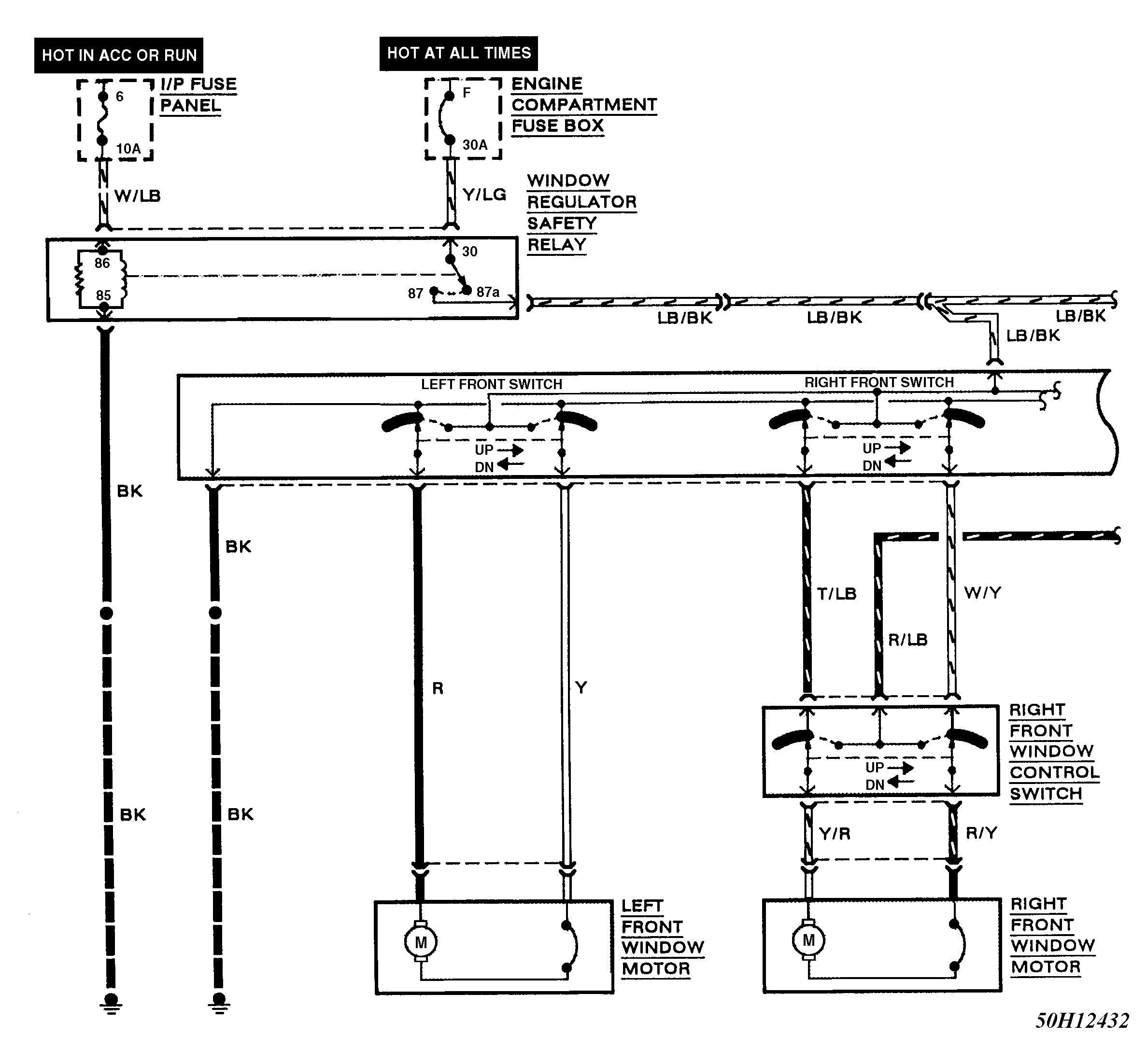

Fig 1: Wiring Diagram (Crown Victoria & Grand Marquis - 1 Of 2)
Courtesy of FORD MOTOR CO.

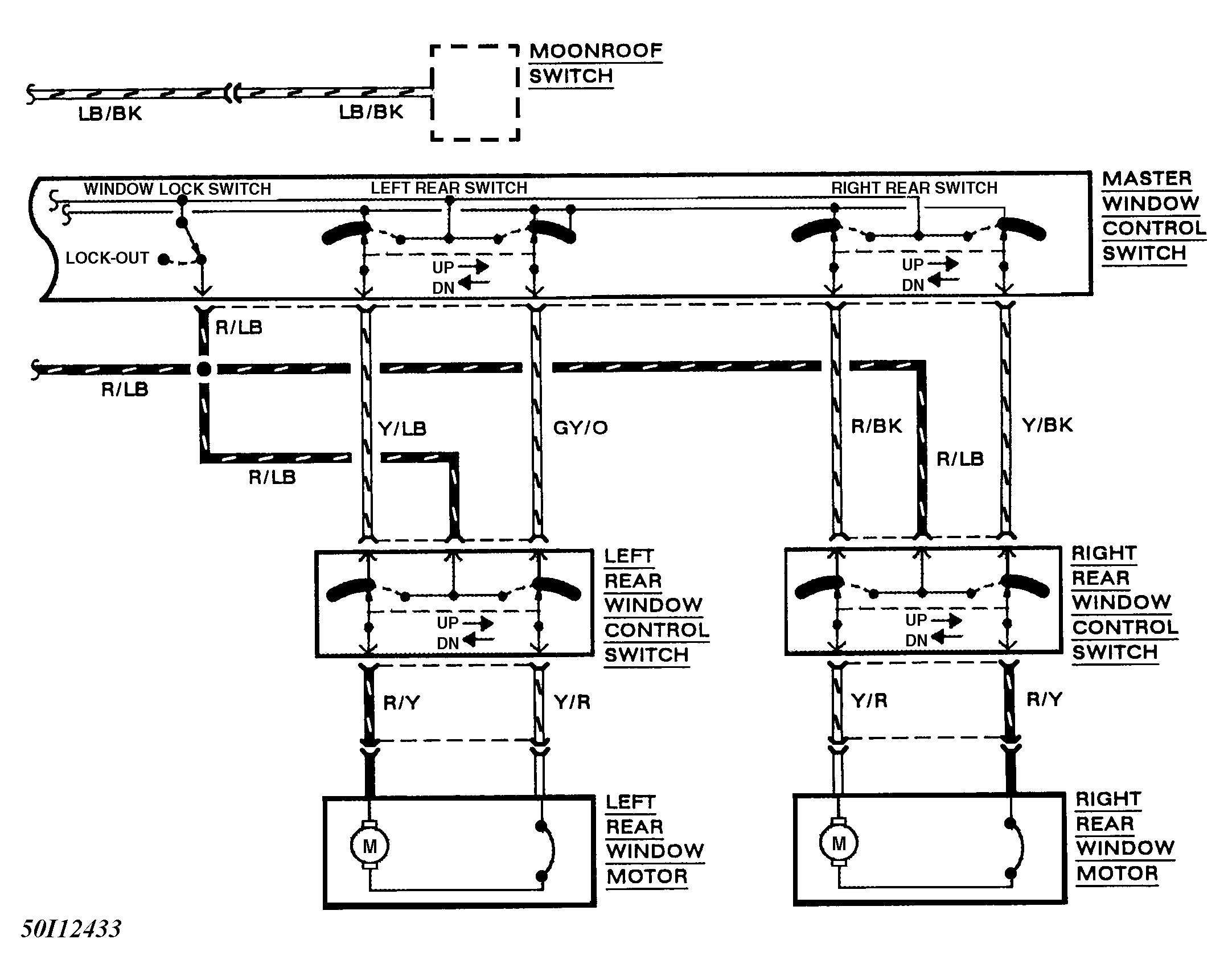

Fig 2: Wiring Diagram (Crown Victoria & Grand Marquis - 2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 3: Wiring Diagram (Town Car - 1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 4: Wiring Diagram (Town Car - 2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
