Pump Assembly: Disassembly
- Remove coast clutch and converter clutch seals from stator support. Remove large square cut seal from outside diameter of pump housing. Using internal puller, remove converter hub seal from pump body.
- Remove 11 pump control-to-pump body bolts. Separate pump control body from pump body. Apply pressure to main regulator booster sleeve. Remove internal retaining ring. Remove main regulator valve train.

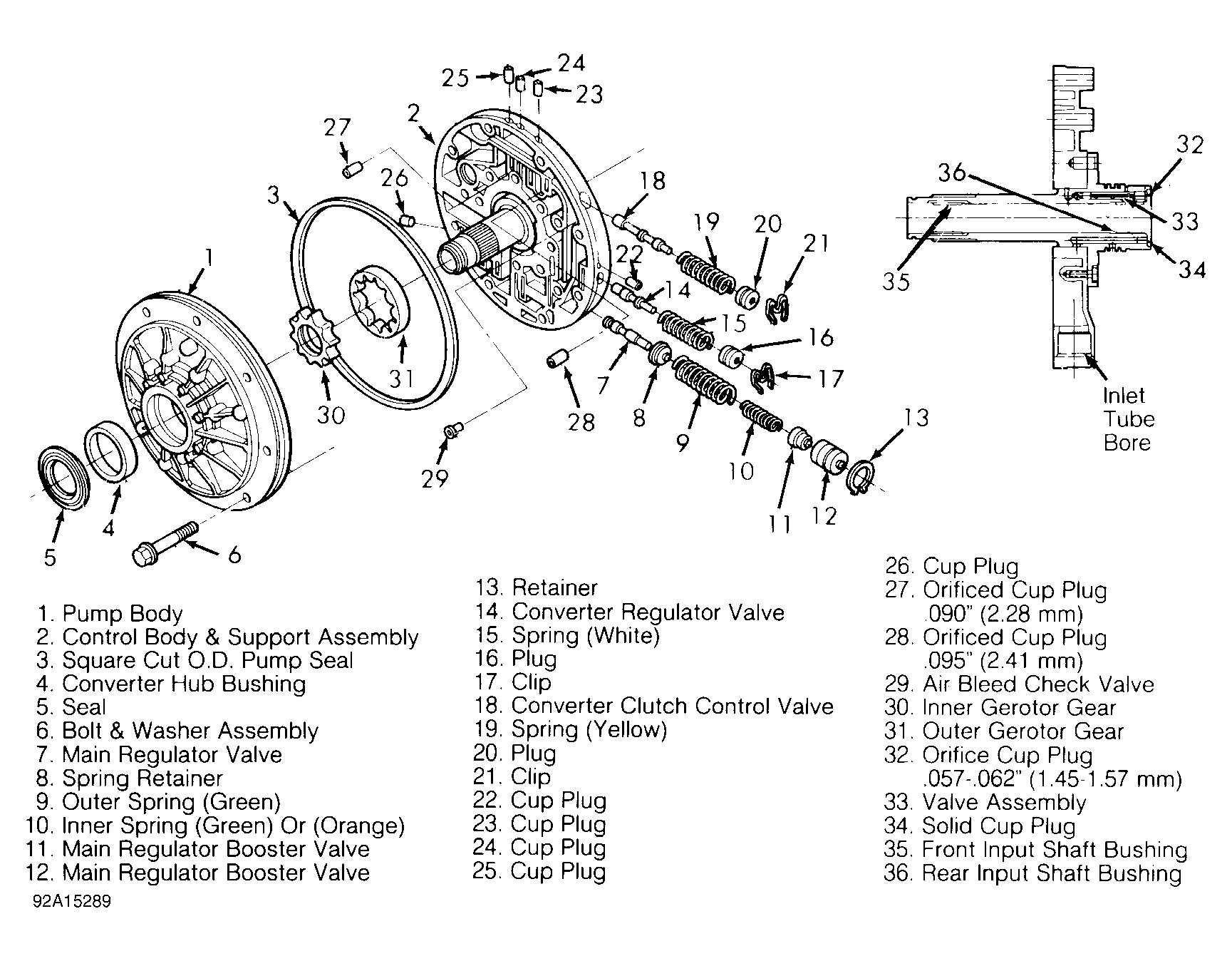

- Apply pressure to end plug and remove retainer clip with small screwdriver or tweezers. Remove converter regulator valve and converter clutch valve. DO NOT remove any cup plugs unless damaged or leaking. See Fig 1. Remove gerotor gear set from pump body.
NOTE:
To prevent distortion of control body surface, DO NOT remove stator support from control body.
