Intermediate/Overdrive Cylinder Assembly: Disassembly
- Using spring compressor tool assembly, compress overdrive return spring. Remove retaining ring. Remove compressor tool assembly. Remove return spring.

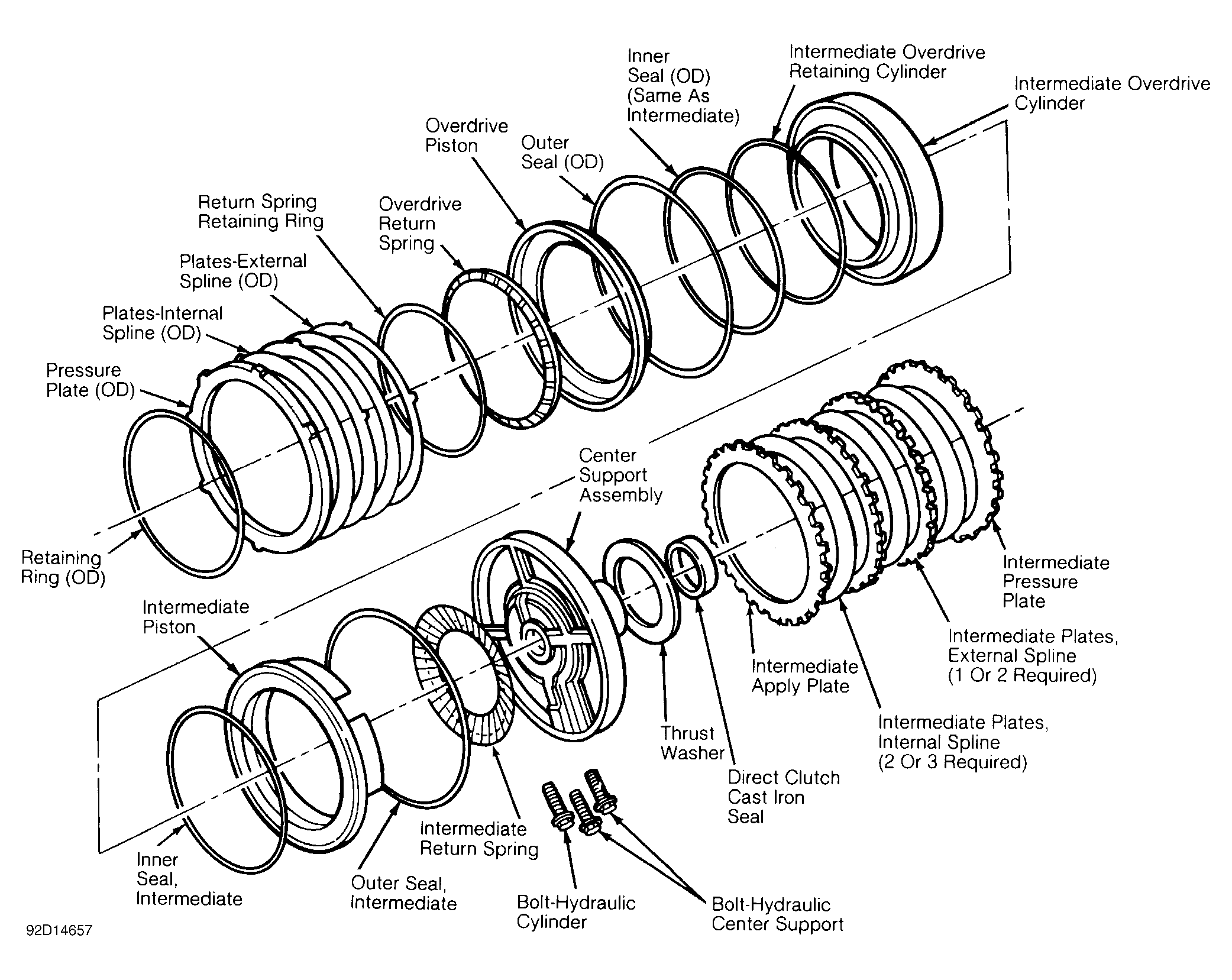

- Remove overdrive piston. Remove outer and inner seals and intermediate piston. See Figure. Remove intermediate-overdrive inner seal from cylinder bore. Remove outer seal from intermediate piston. Remove 2 cast iron outer seal rings from center support.
- Remove plastic thrust washer from front face of forward hub and ring gear. Using a screwdriver remove retaining ring. Remove forward hub from ring gear.
