Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Panel Behind Lower Left Side Of Instrument Panel, Left Of Steering Column. See Fig 1 .
Ground G201 Behind Bottom Of Left Cowl Panel. See Fig 2 .
Left Power Lumbar Compressor Under Front Of Left Front Seat
Left Power Lumbar Switch Left Side Of Left Front Seat
Right Power Lumbar Compressor Under Front Of Right Front Seat
Right Power Lumbar Switch Right Side Of Right Front Seat

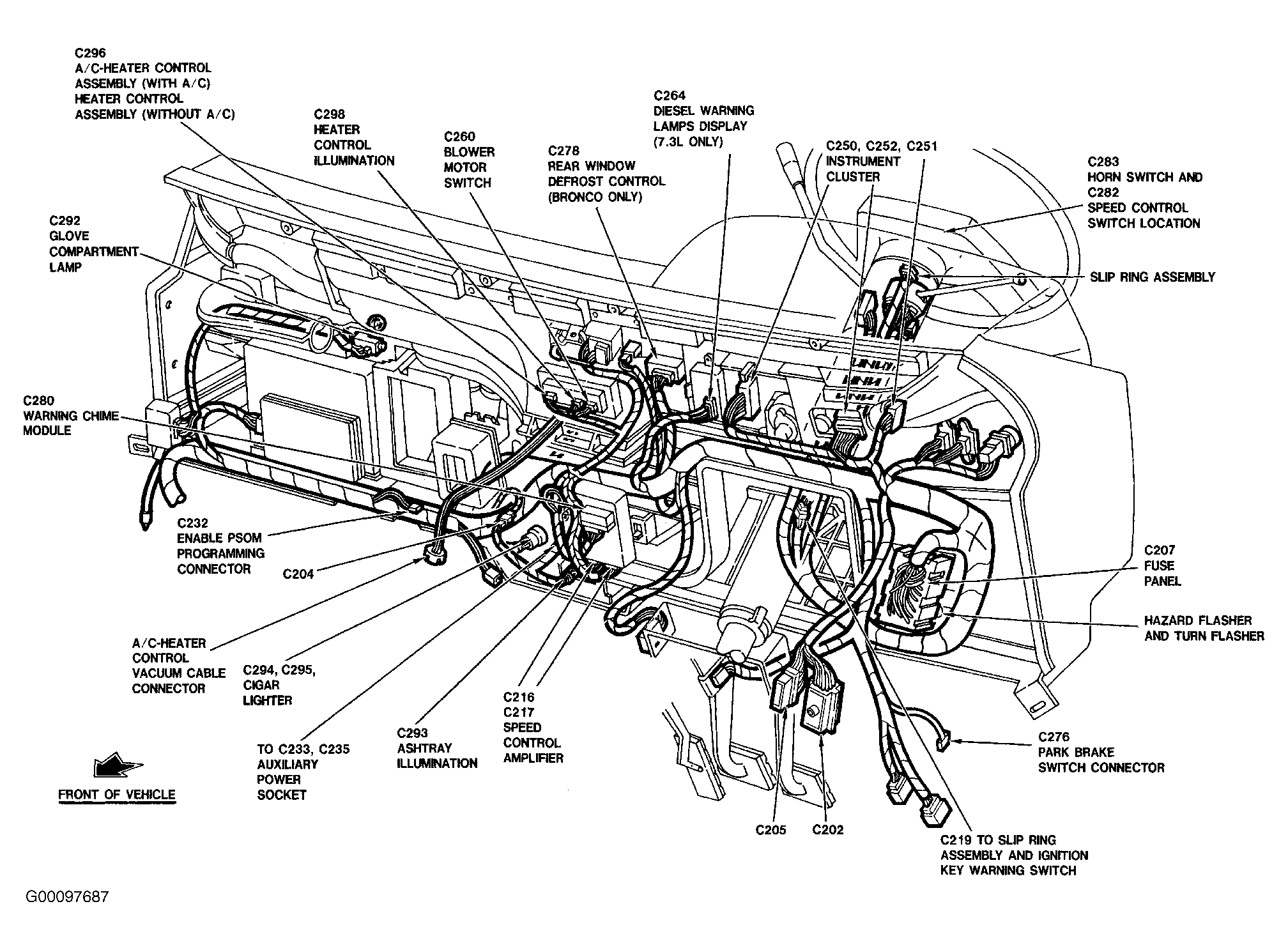

Fig 1: Locating Fuse Panel
G00097687Courtesy of FORD MOTOR CO.

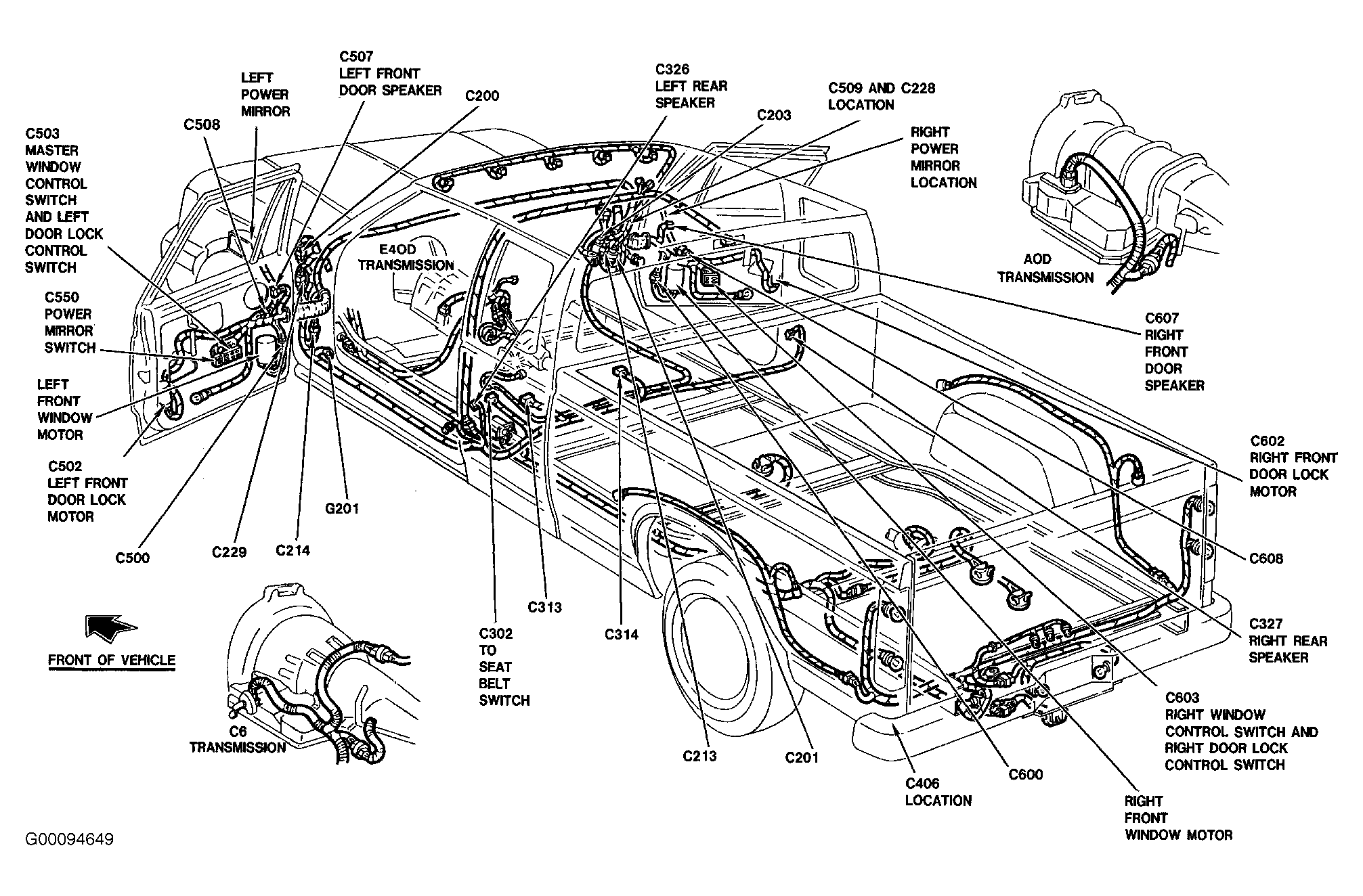

Fig 2: Locating Ground G201
G00094649Courtesy of FORD MOTOR CO.

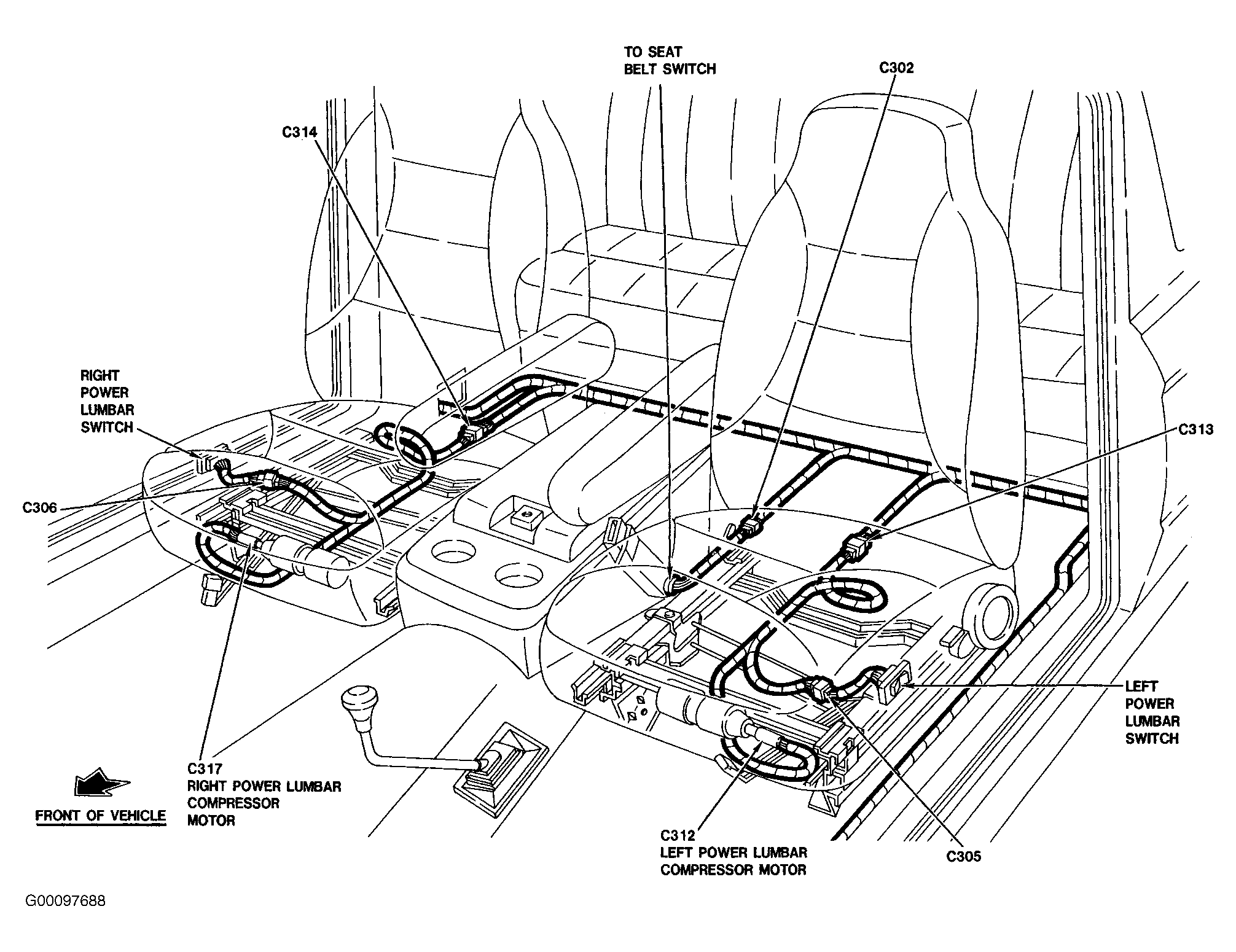

Fig 3: Locating Power Lumbar Seat Components
G00097688Courtesy of FORD MOTOR CO.
