Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Diagnostic Module | Above left kick panel. |

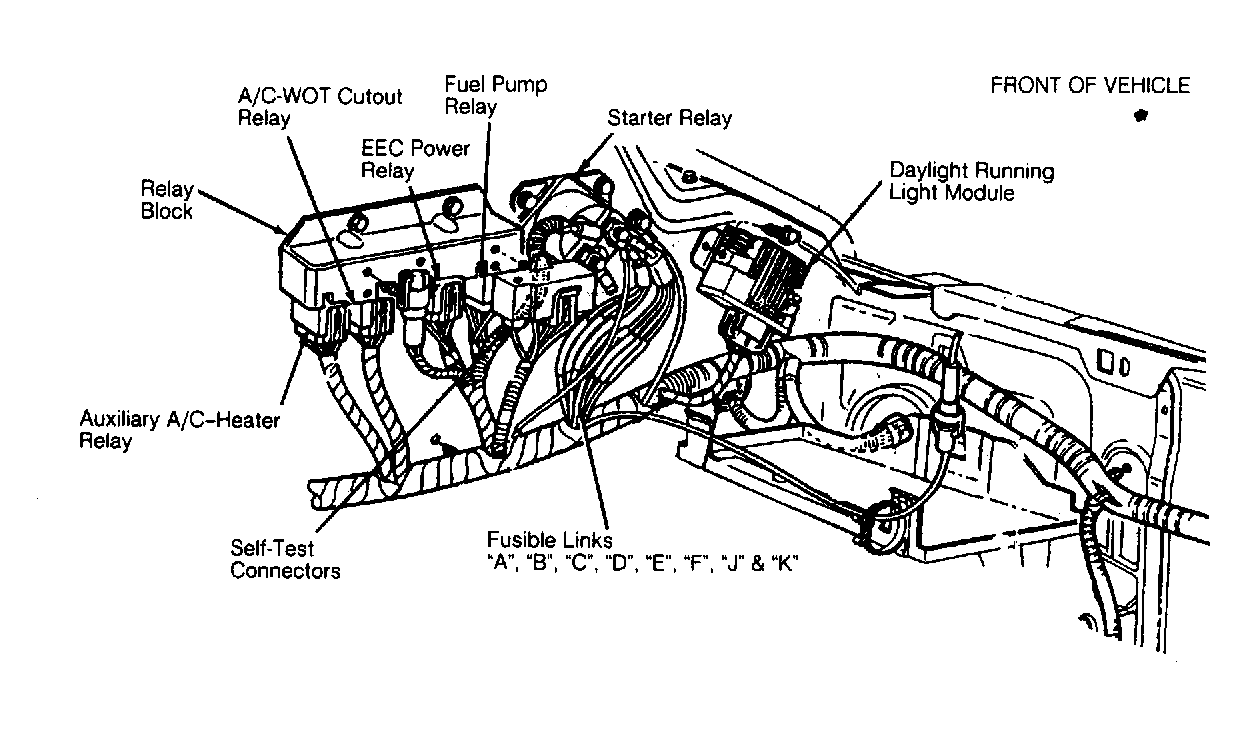

| Daytime Running Lights (DRL) Module | In front of starter relay, on left front fender panel. See Figure . |
| Distributorless Ignition System (DIS) Module | On right inner fender panel, near air cleaner. |
| Electronic Engine Control (EEC) Module | On left side of master cylinder. |
| Electronic 4WD Module | Under driver's seat. |
| Power Door Lock Module | Behind left "B" pillar. |
| Rear ABS Module | Below front ashtray. |
| Remote Headphone Module | Behind left rear quarter panel. |
| Switch Module | At top left side of dash, near instrument cluster. |
| TFI Ignition Module | At right rear of engine bay, near air cleaner. |
| Trailer Tow Relay Module | Above left rear wheelwell. |
| Warning Chime Module | Above left kick panel. |
| Windshield Wipers Interval Governor | On right side of steering column. |
