Door Trim Panel: Installation

If watershield has been removed, position it correctly before installing the trim panel. Ensure that armrest retaining clips are properly positioned on door inner panel. If they have been dislodged, they must be installed before installing watershield.
Position trim panel to door inner panel and route mirror control cable through bezel, if so equipped. See Fig 1 , Fig 2 or Fig 3 .
Position trim panel to door inner panel, and locate push pins in countersunk holes. Firmly push trim panel at push pin locations to set each push pin.
Install set screw for remote control outside mirror bezel, if so equipped.
Install trim panel retaining screws.
Install door handle pull cup, if so equipped
Install window regulator handle.

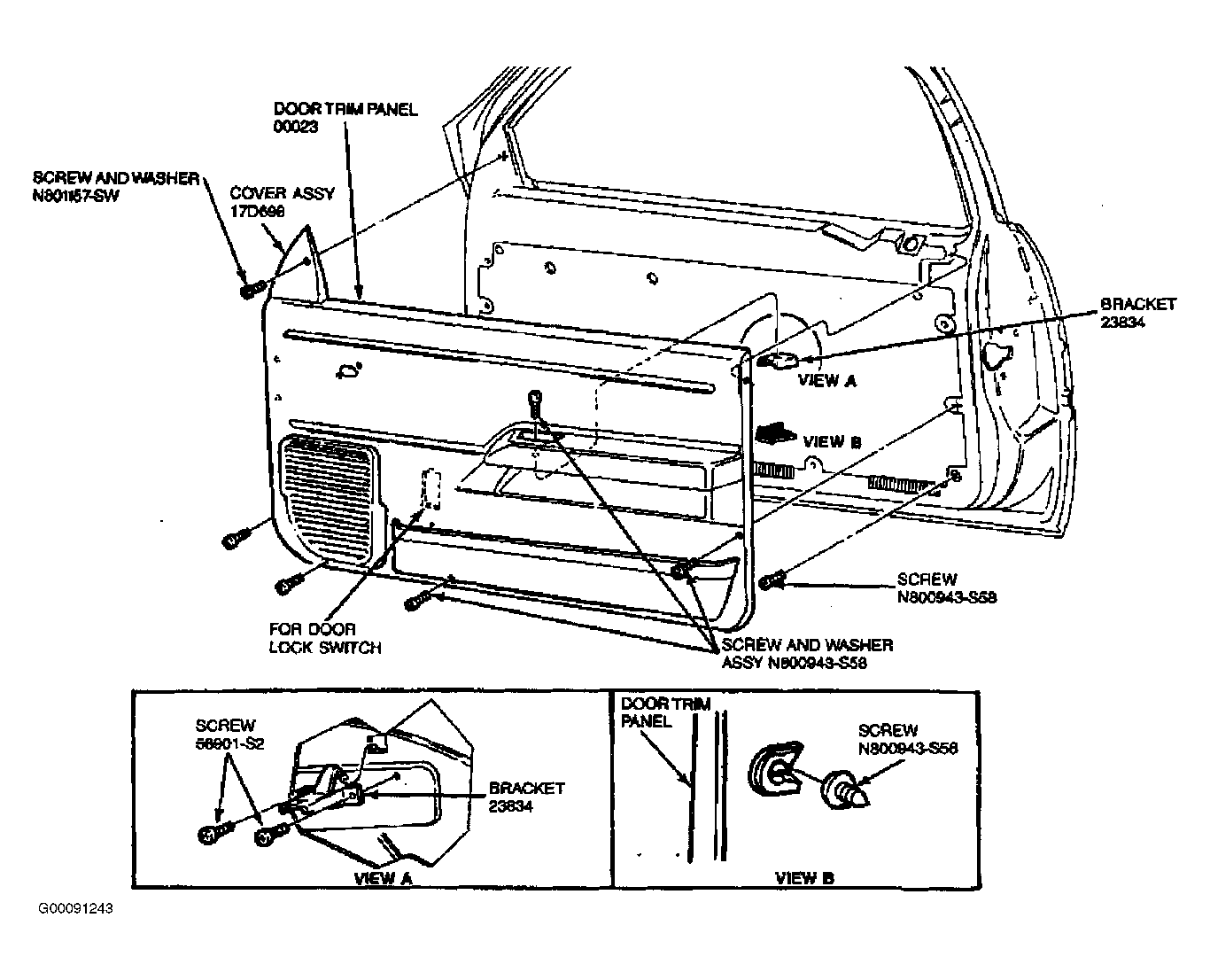

Fig 1: Removing Door Trim Panel (2-Door)

Courtesy of FORD MOTOR CO.

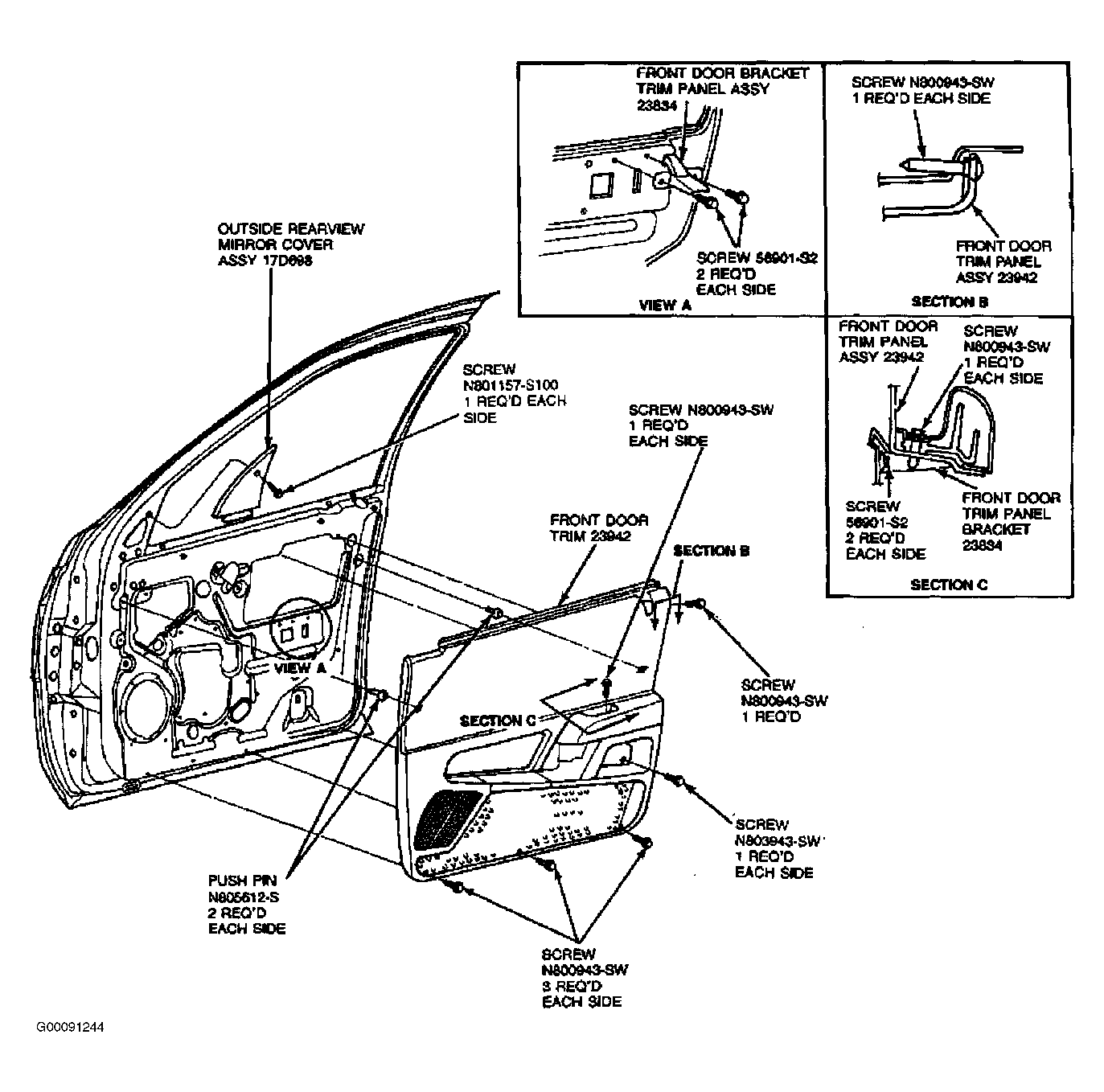

Fig 2: Removing Front Door Trim Panel (4-Door)

Courtesy of FORD MOTOR CO.

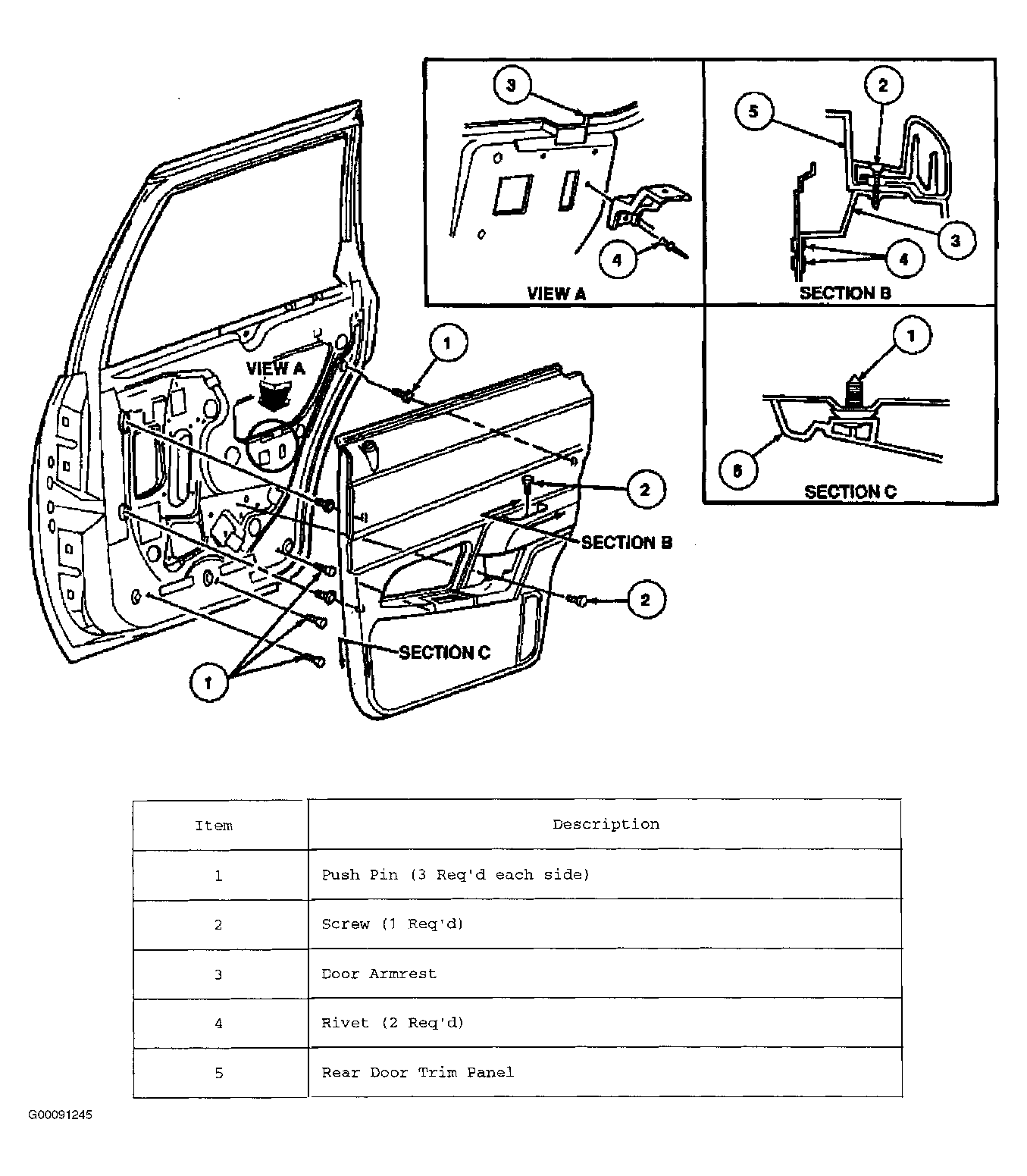

Fig 3: Removing Rear Door Trim Panel (4-Door)

Courtesy of FORD MOTOR CO.
