Wiring Diagrams: 3.0L

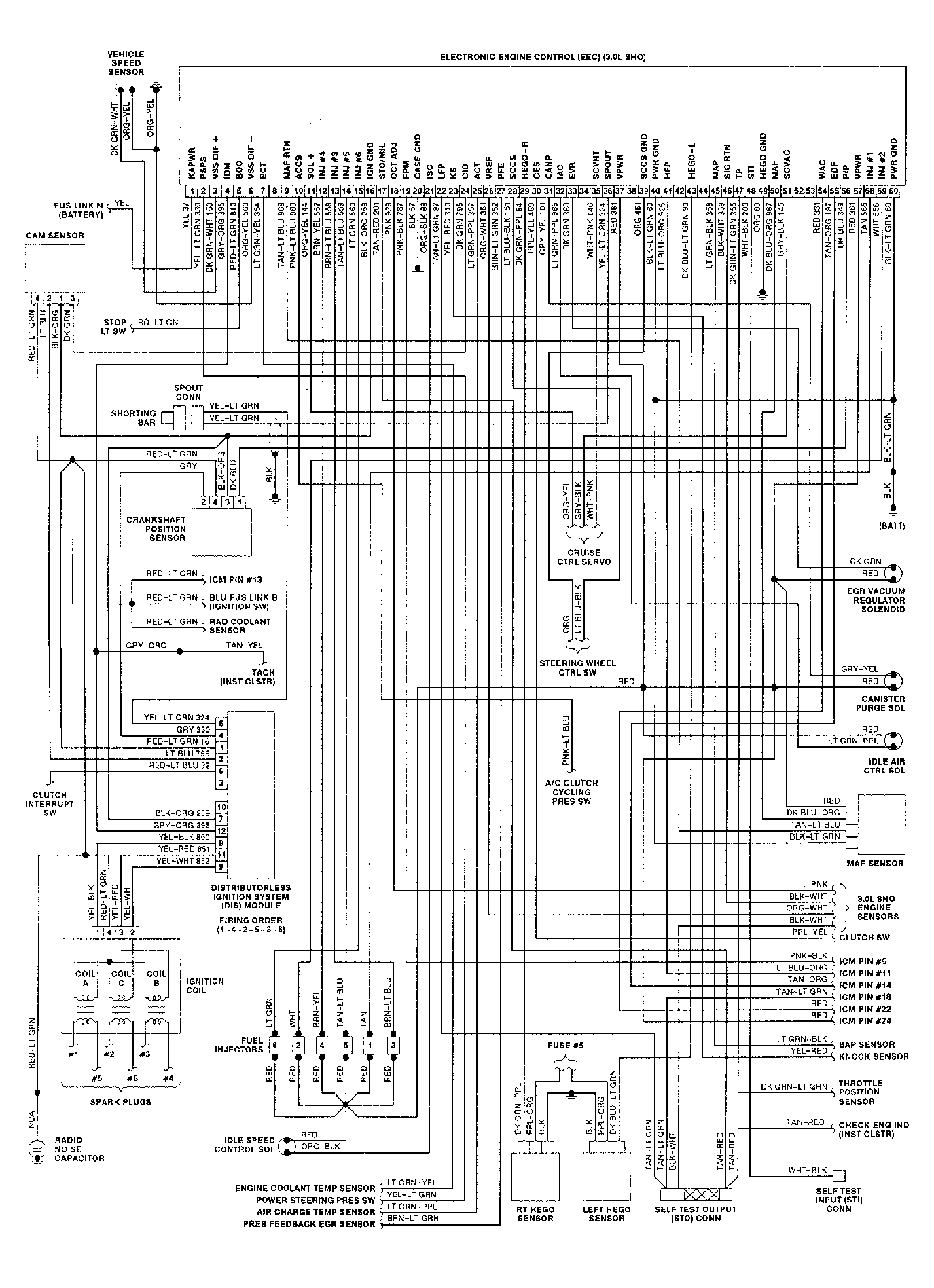

Fig 1: 3.0L SHO Taurus EEC-IV Wiring Diagram (1 of 2)

G91J08213

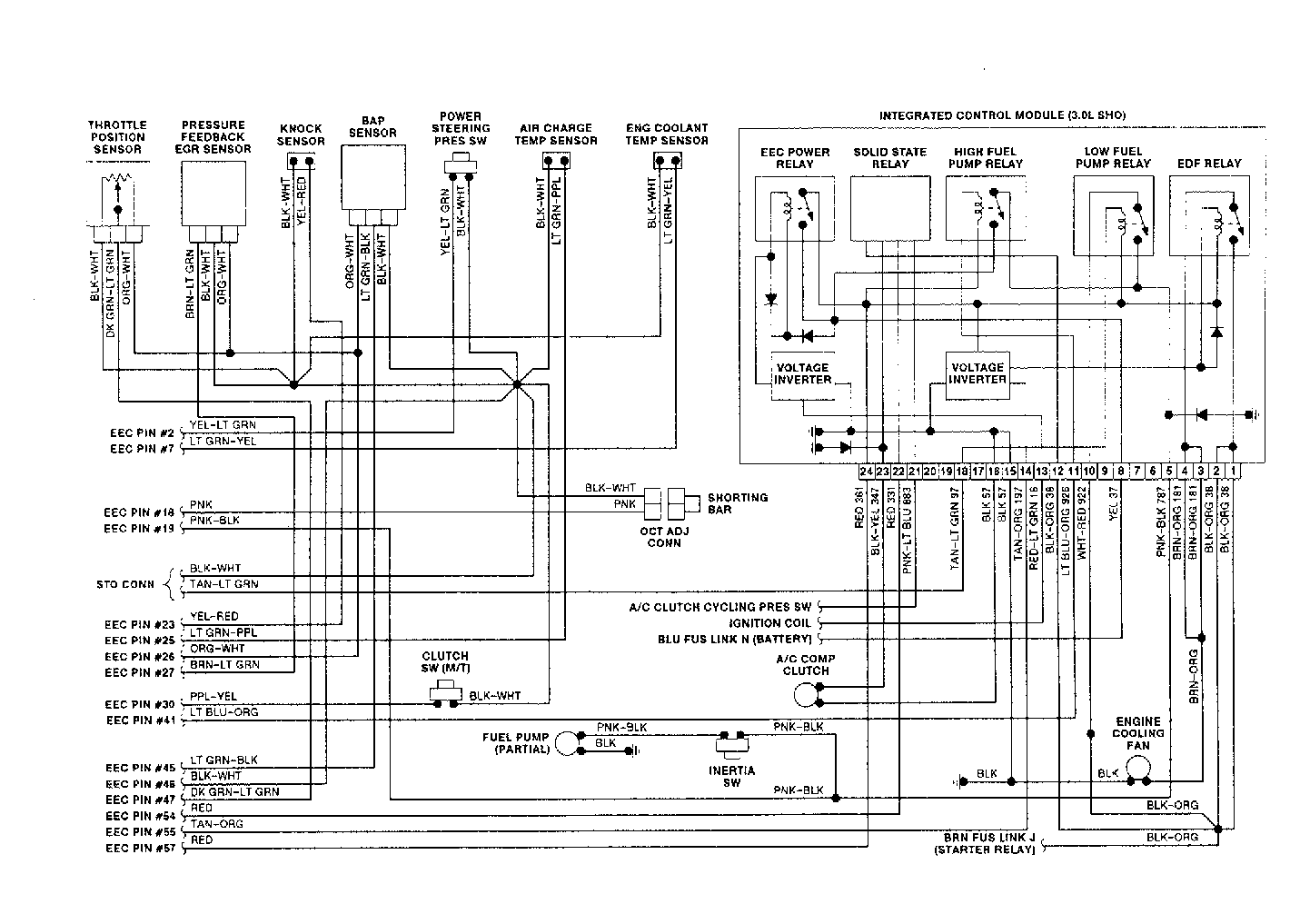

Fig 2: 3.0L SHO Taurus EEC-IV Wiring Diagram (2 of 2)

G91B08214
