Taurus SHO
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System
>>
Wiring Diagrams
Wiring Diagrams
Fig 1: Keyless Entry System Wiring Diagram
Courtesy of FORD MOTOR CO.

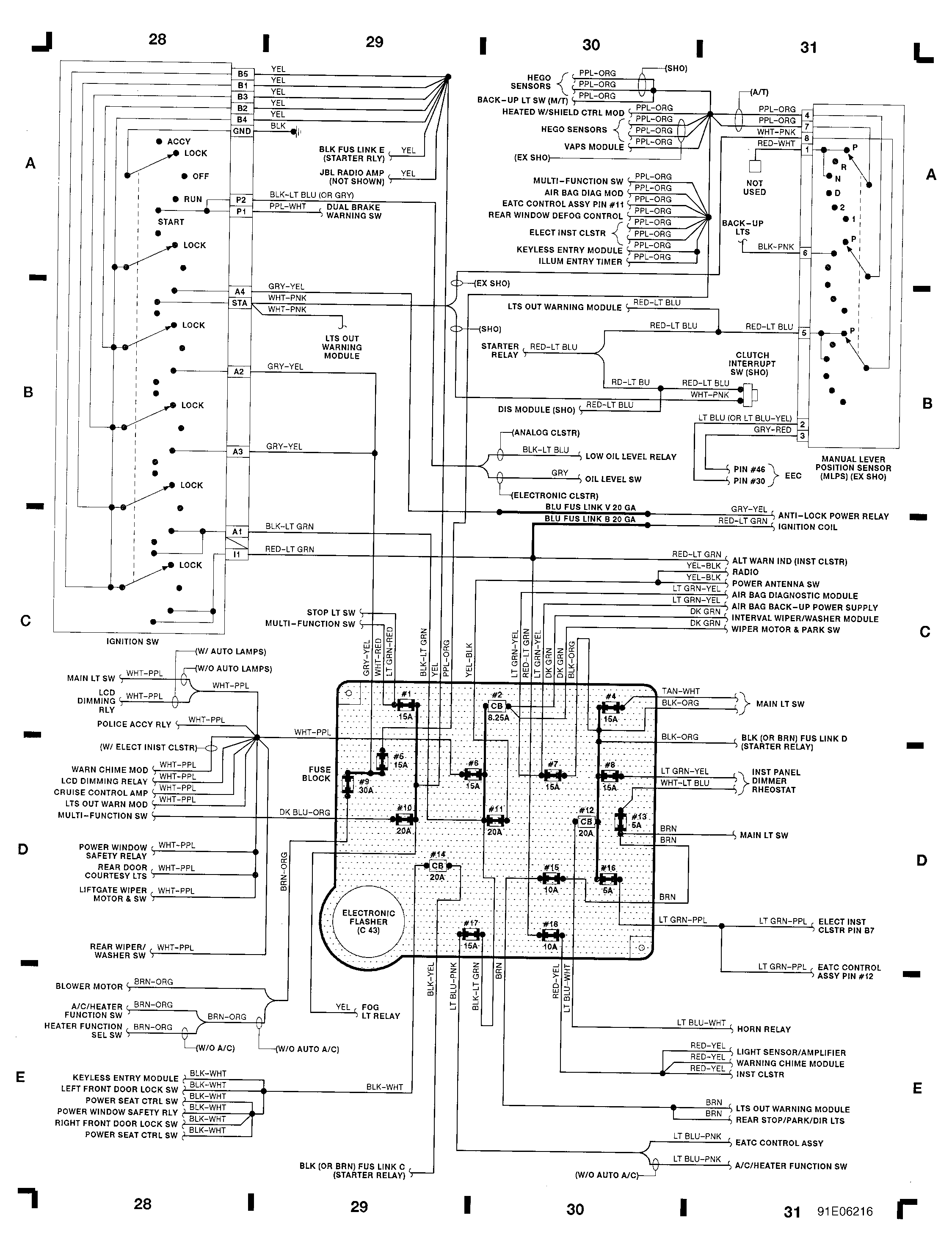

Fig 2: Ignition Switch And Fuse Block Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
