Air Intake Selector Cable

  1. Position REC/FRESH control lever in fresh air position. Remove right side sound deadening panel. Remove cable from cable housing brace on left side of blower case. See Fig 1 .
  2. With cable end on door lever pin, push door lever forward to its extreme stop. To install, reverse removal procedure. Secure cable on cable housing brace. Check air door control lever operation. Install right side sound deadening panel.

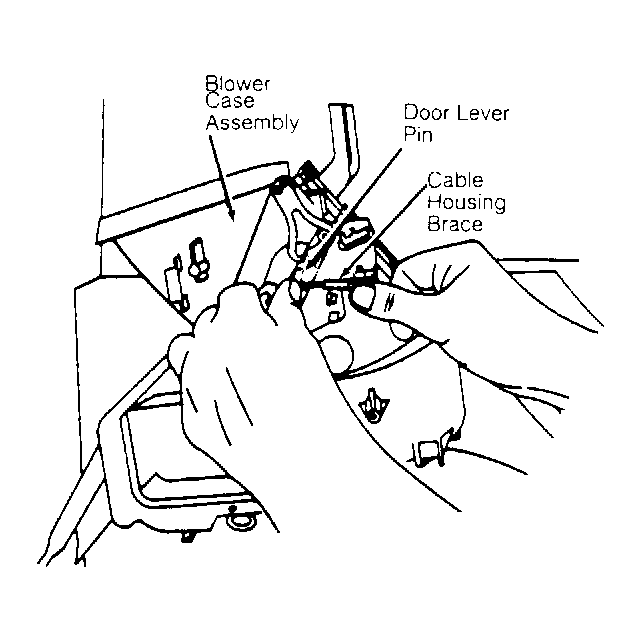

    Fig 1: Adjusting Air Intake Selector Cable
    G91H05355Courtesy of FORD MOTOR CO.
