2.3L Wiring Diagrams

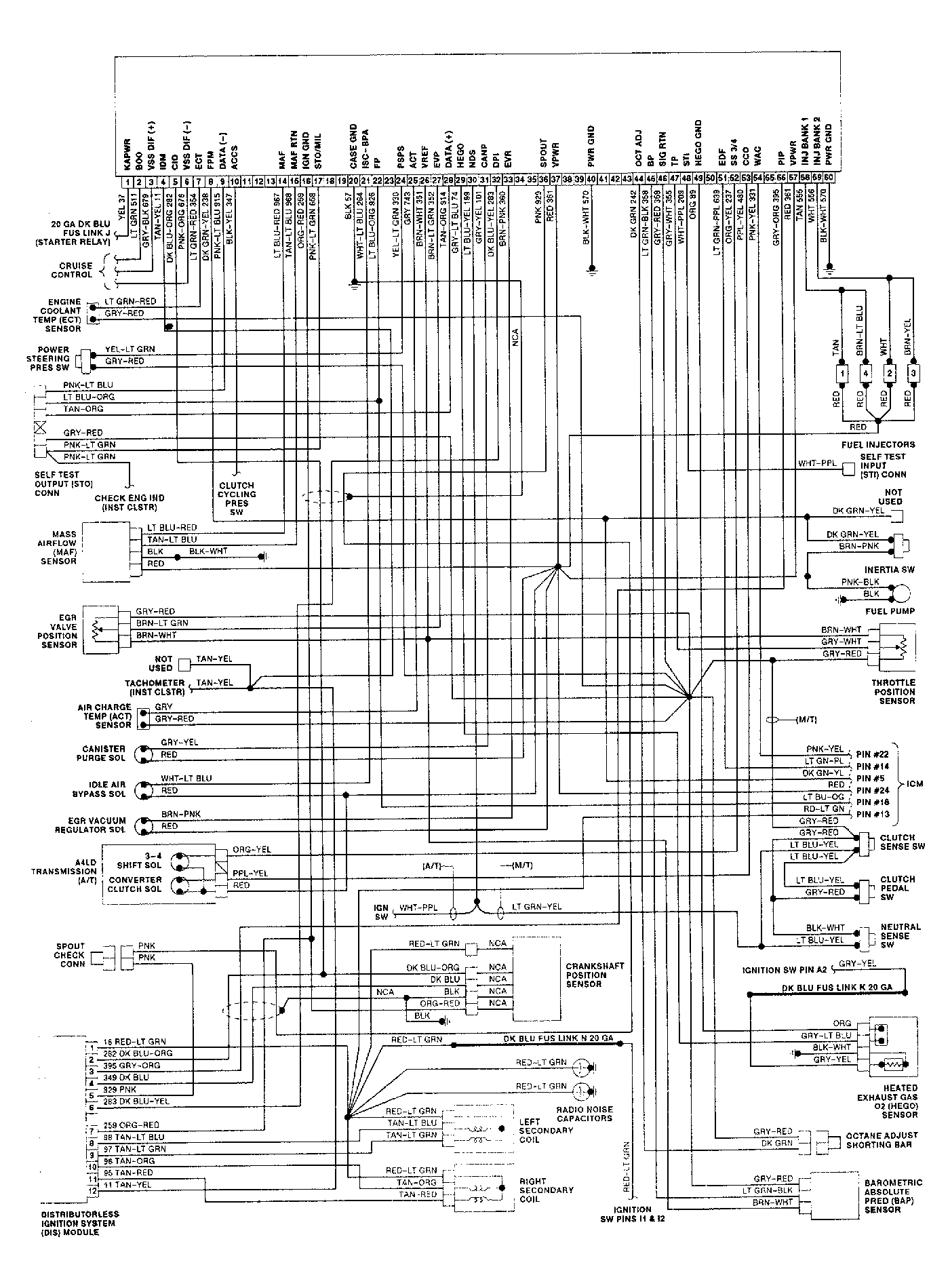

Fig 1: 2.3L Mustang EEC-IV Wiring Diagram (1 of 2)

G91H08207

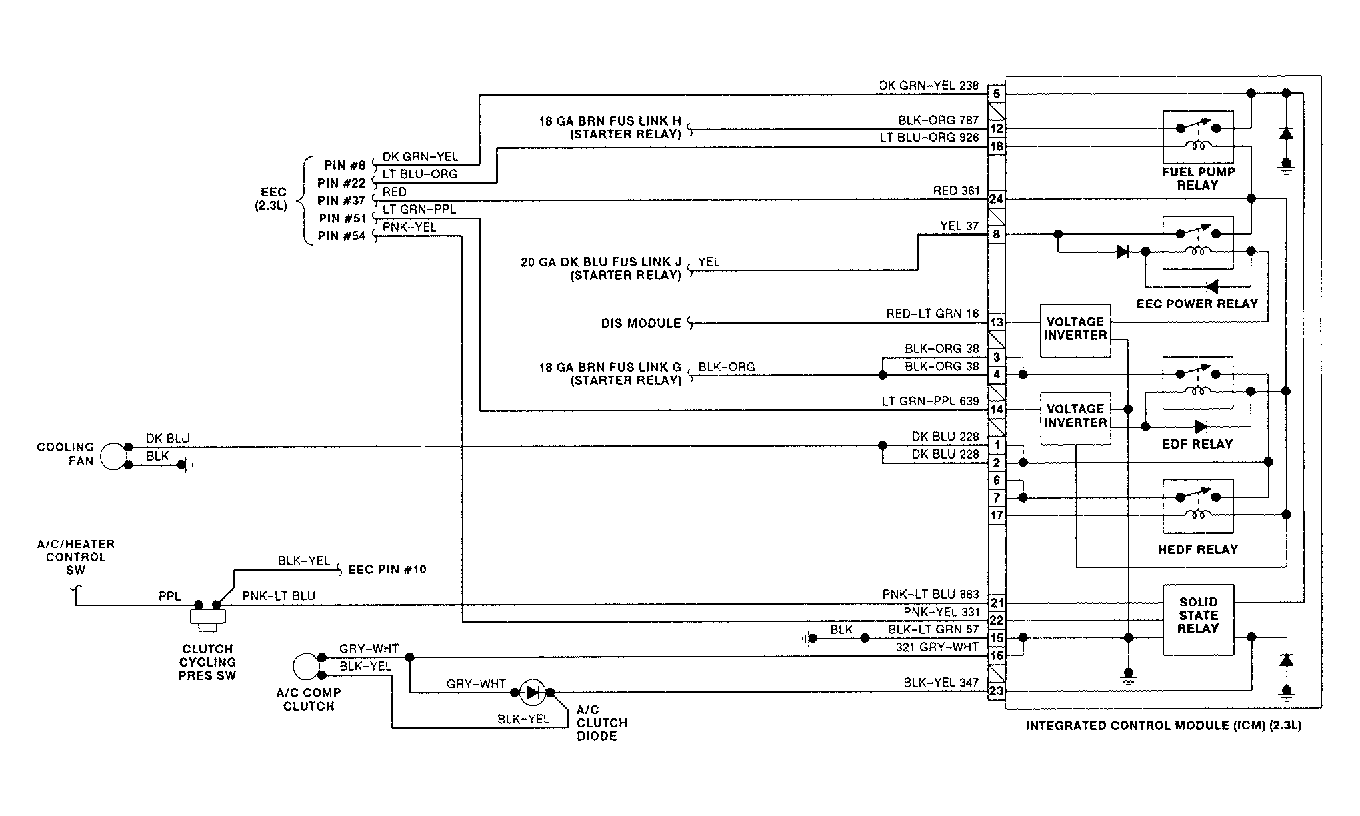

Fig 2: 2.3L Mustang EEC-IV Wiring Diagram (2 of 2)

G91J08208

Fig 3: 2.3L Tempo & Topaz EEC-IV Wiring Diagram

G91B08209
