Wiring Diagrams

Fig 1: Electric Cooling Fan Wiring Diagram (Continental)

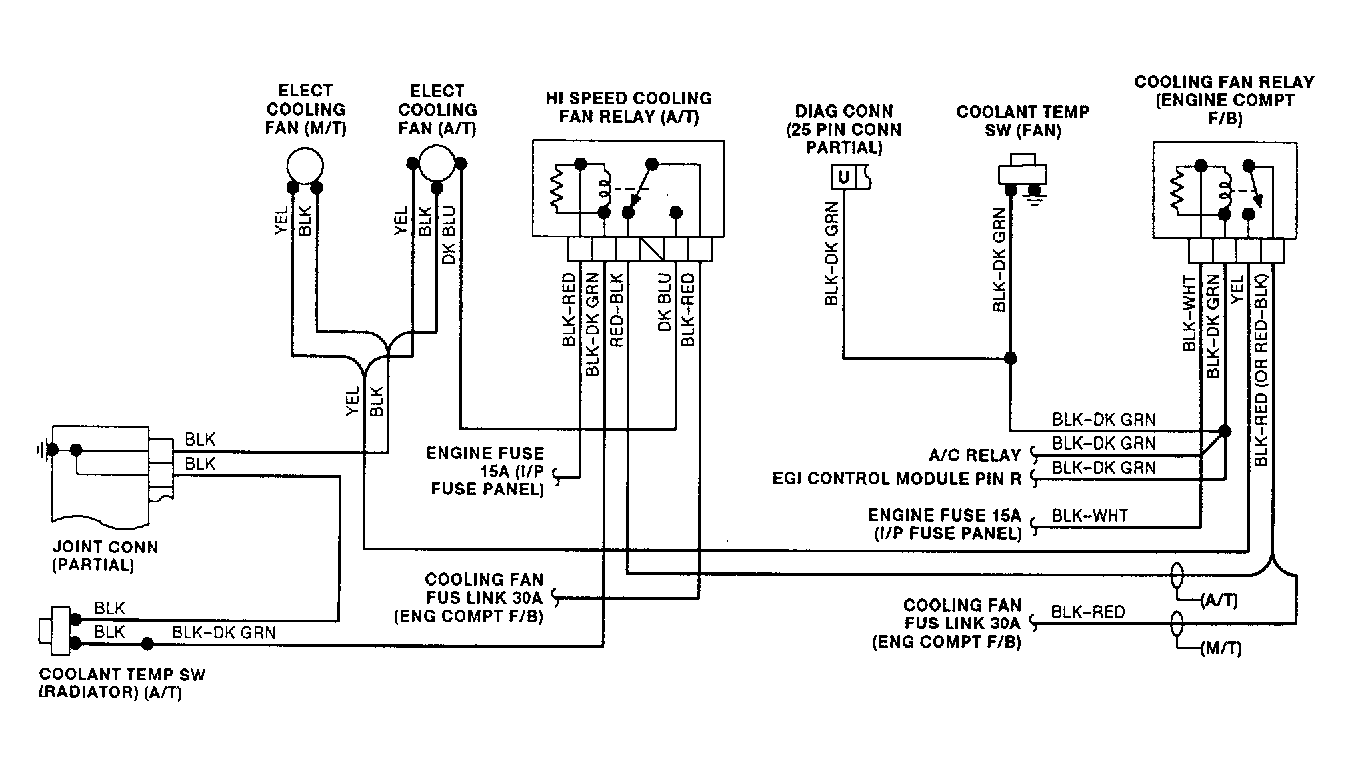

Fig 2: Electric Cooling Fan Wiring Diagram (Escort & Tracer 1.8L)

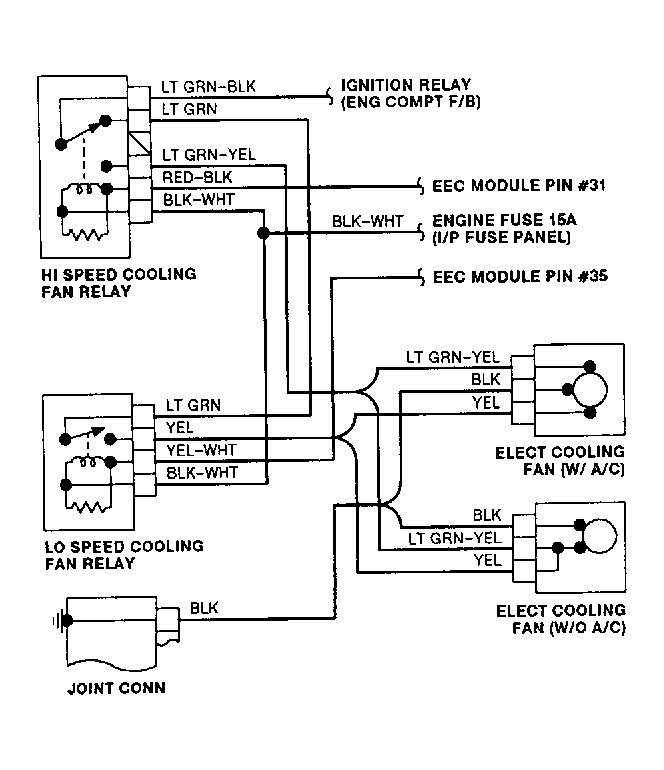

Fig 3: Electric Cooling Fan Wiring Diagram (Escort & Tracer 1.9L)

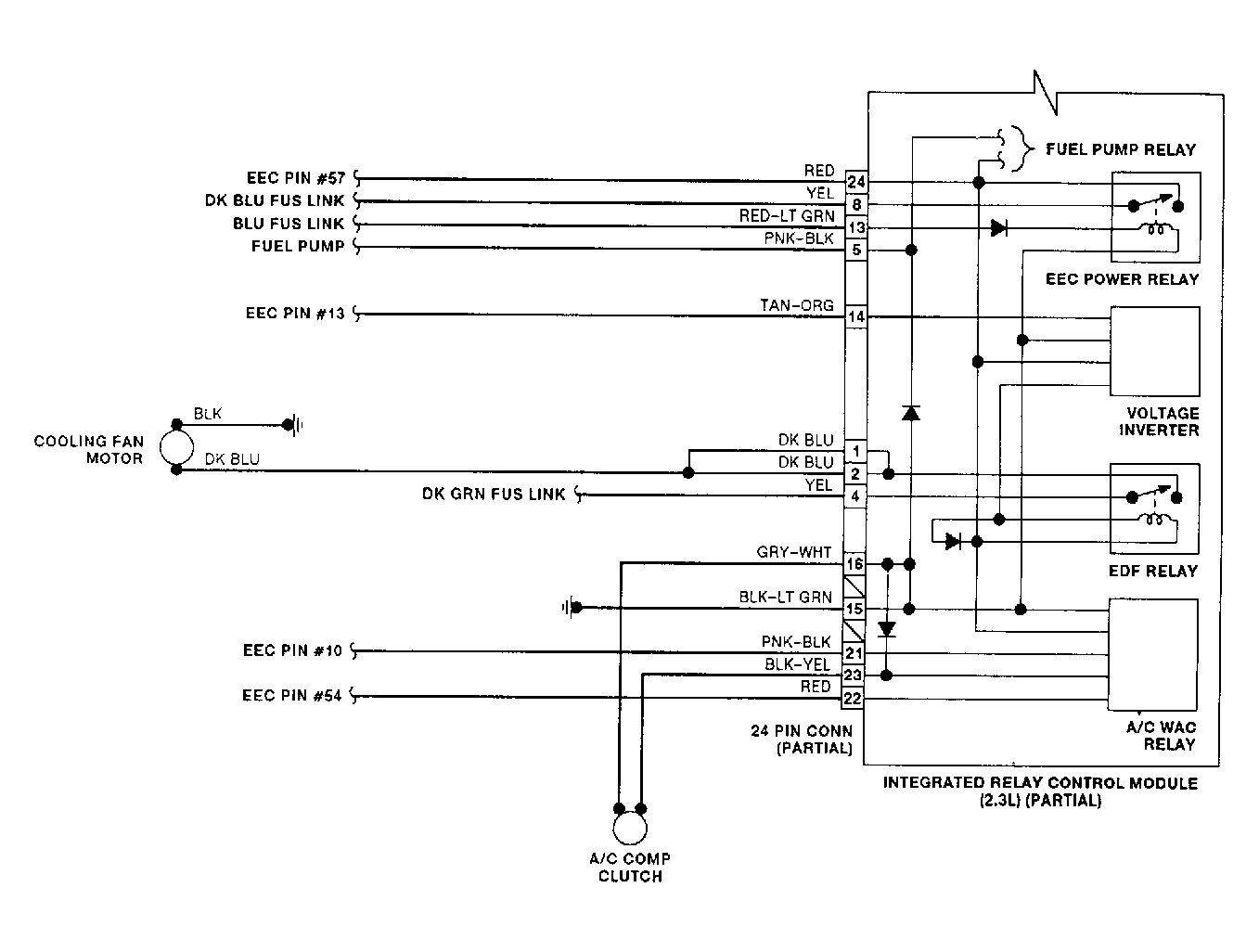

Fig 4: Electric Cooling Fan Wiring Diagram (Mustang 2.3L)

Fig 5: Electric Cooling Fan Wiring Diagram (Probe 2.2L)

Fig 6: Electric Cooling Fan Wiring Diagram (Probe 3.0L)

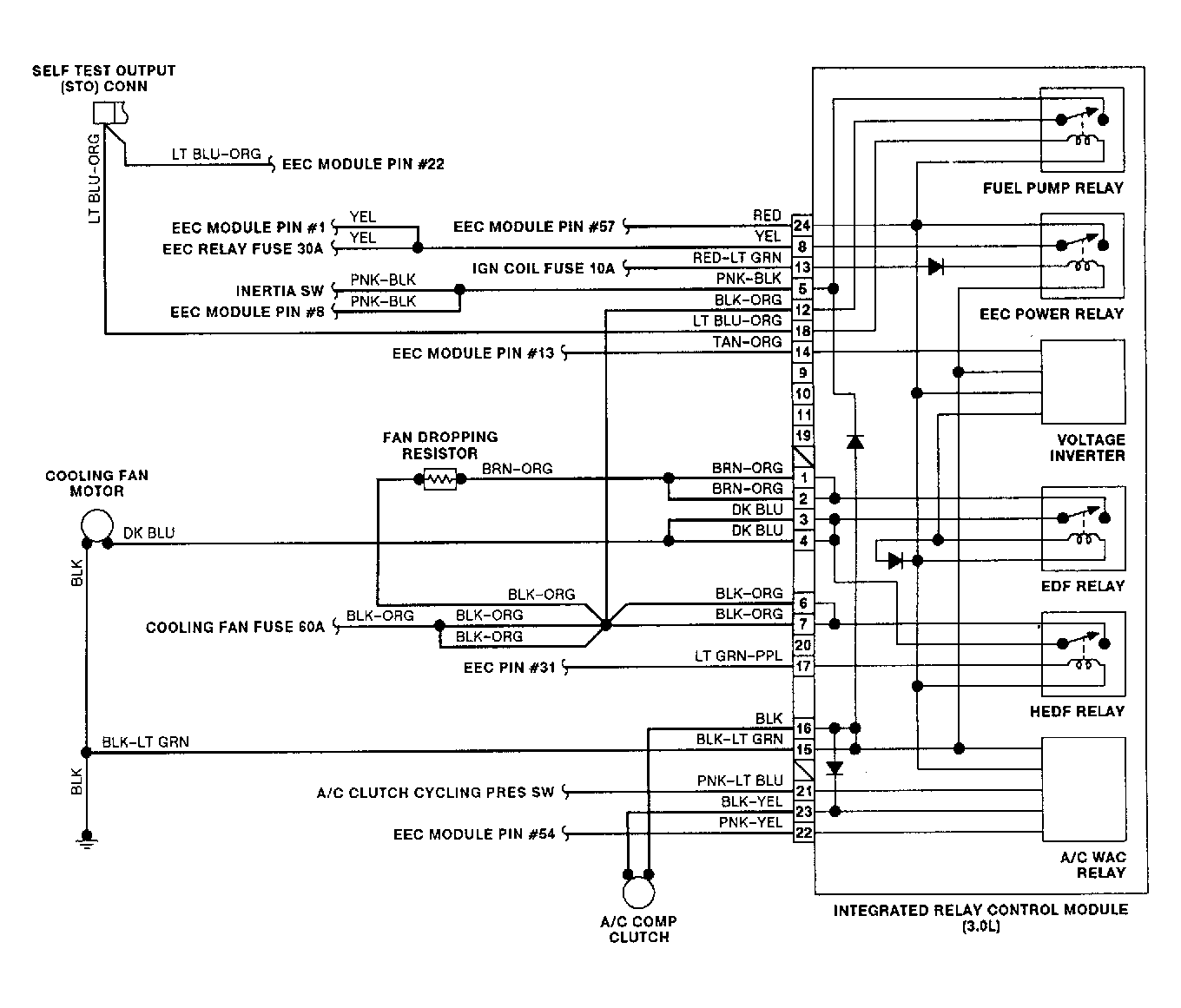

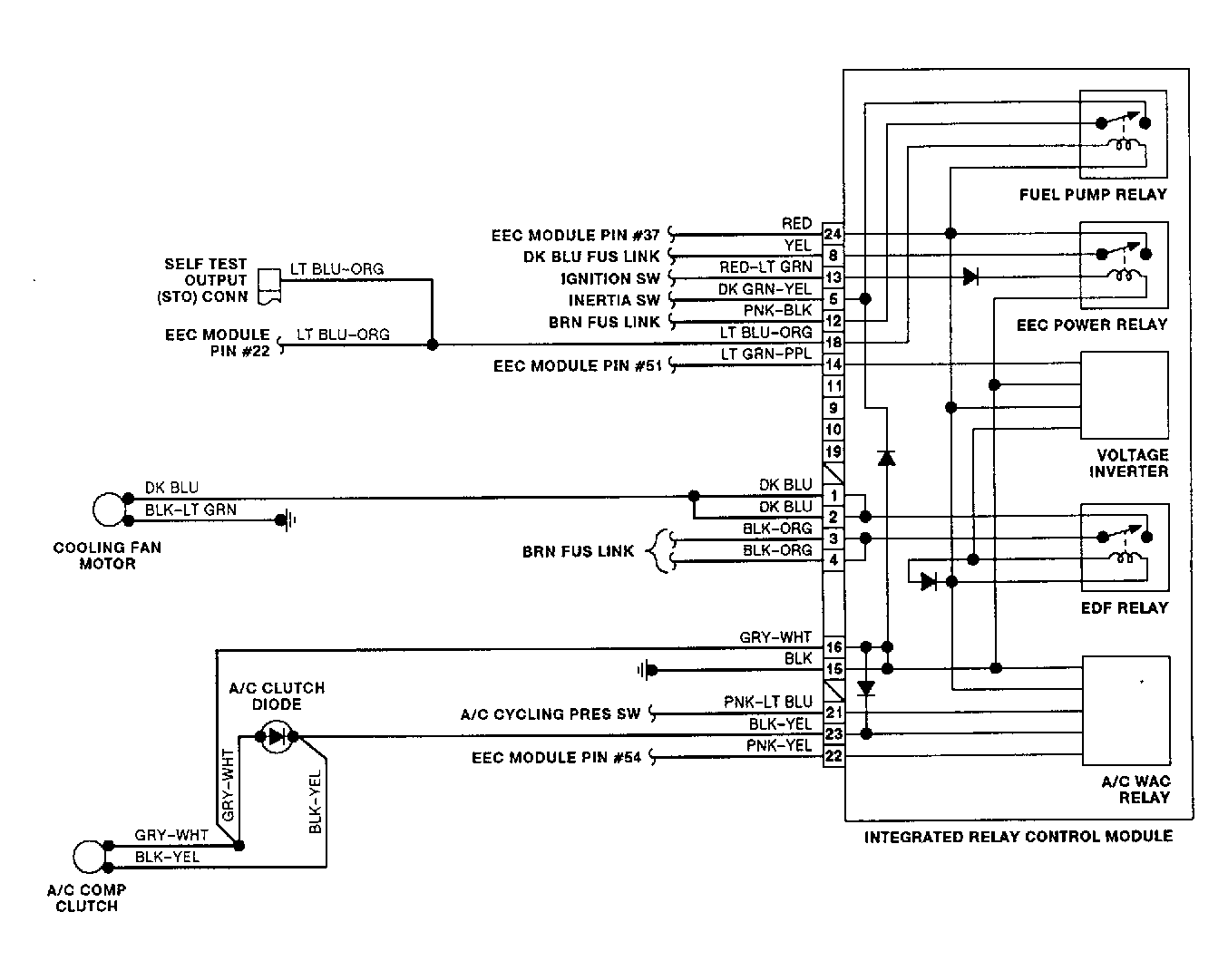

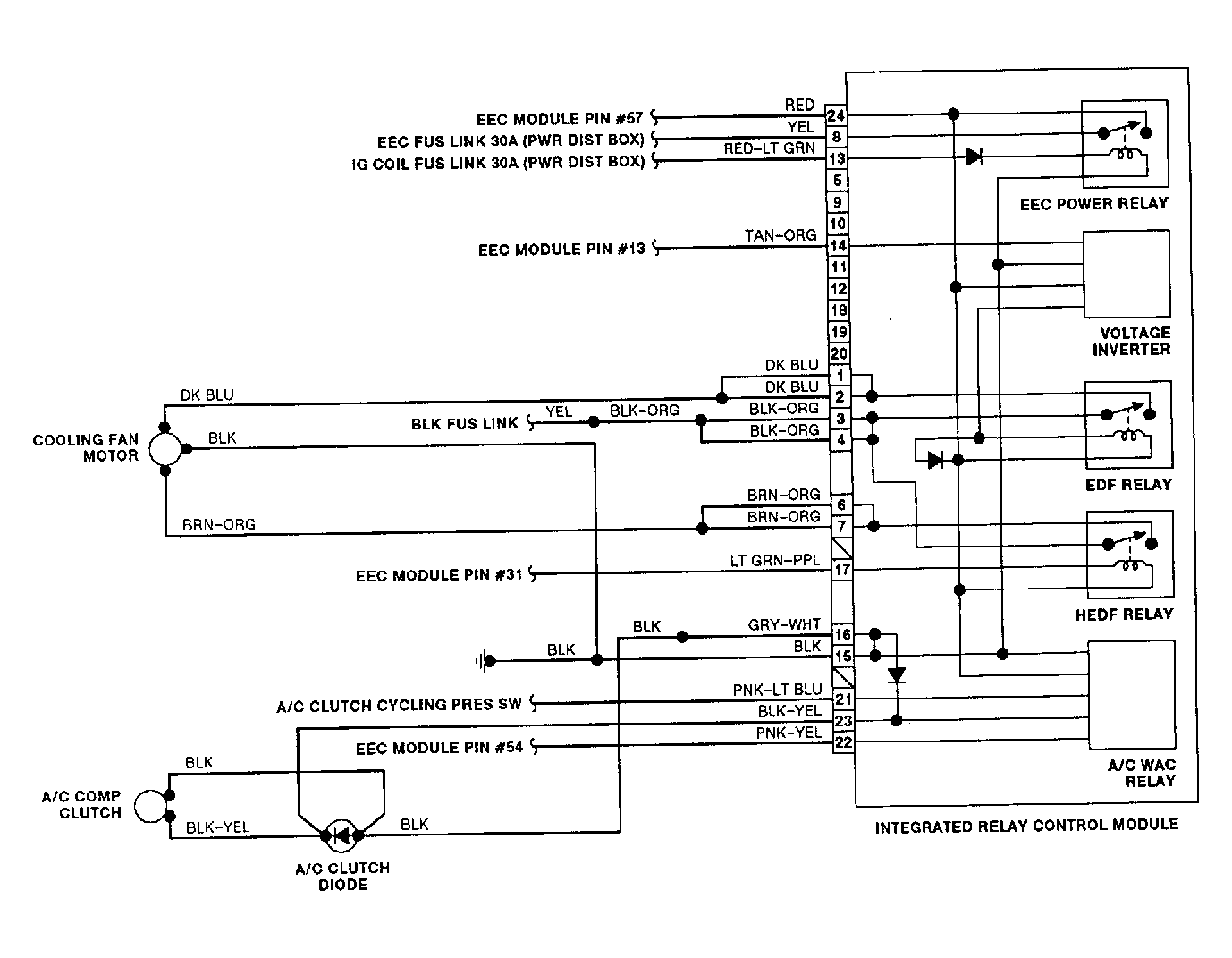

Fig 7: Electric Cooling Fan Wiring Diagram Sable/Taurus 2.5L/3.0L EXCEPT 3.0L SHO

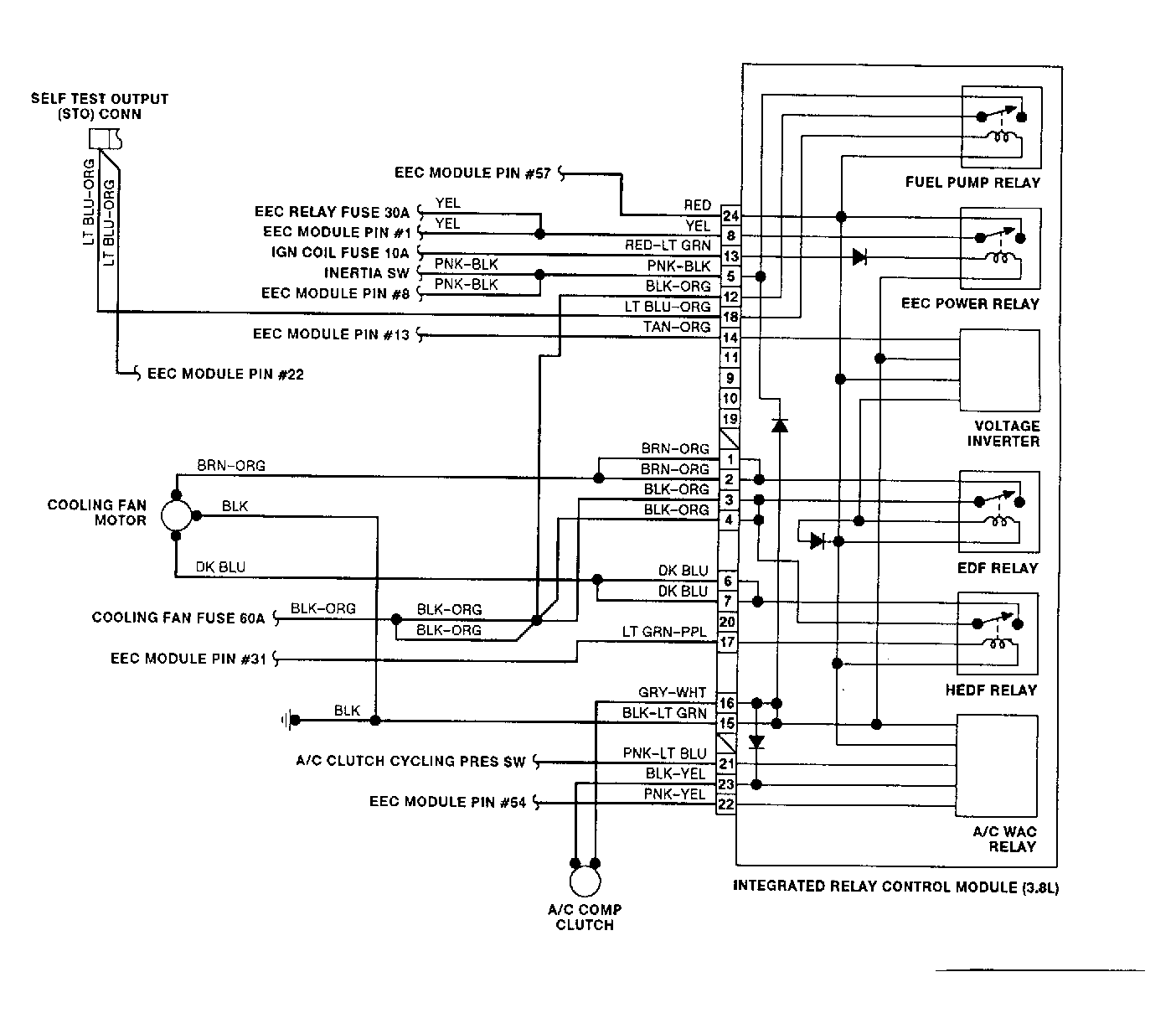

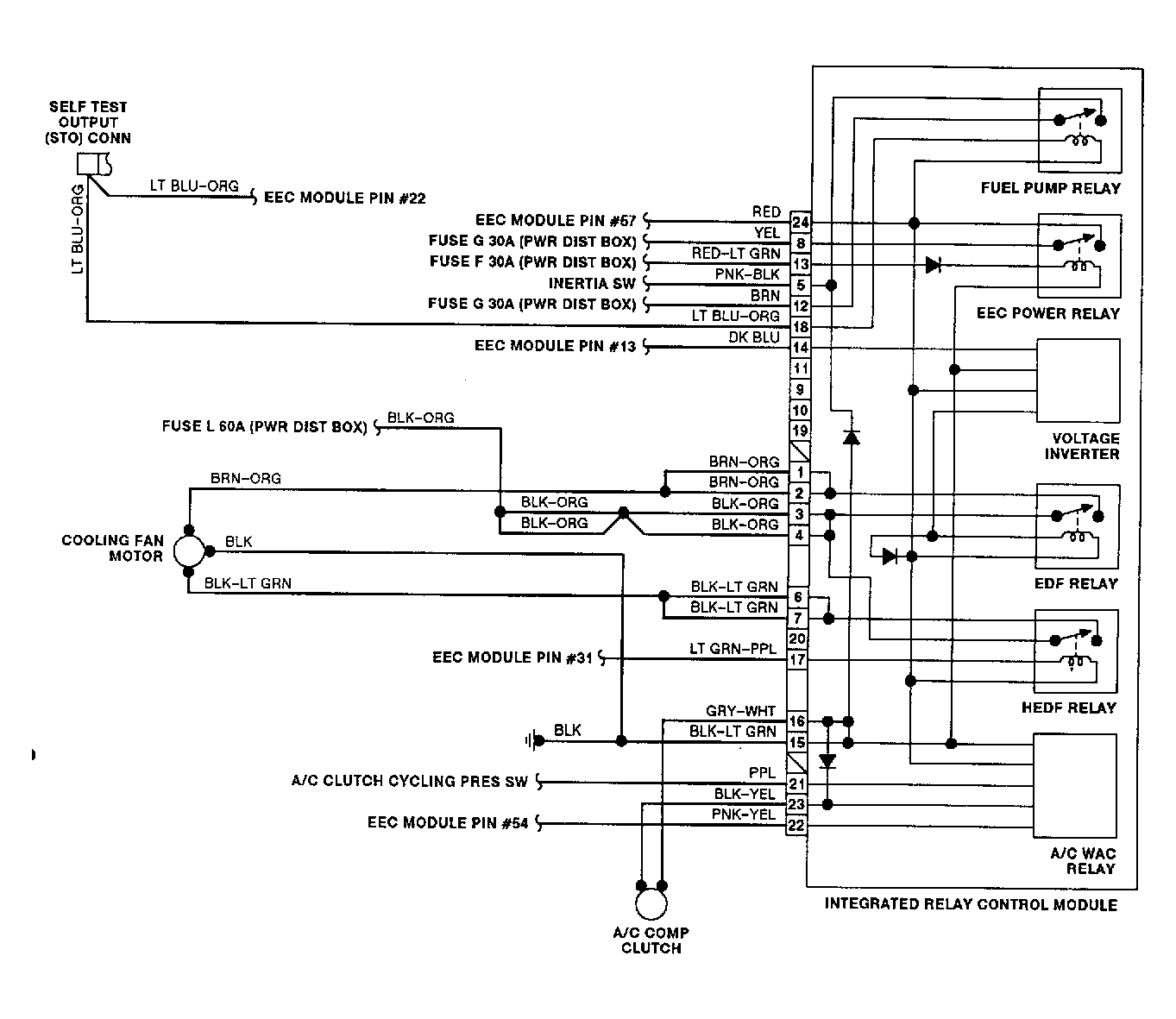

Fig 8: Electric Cooling Fan Wiring Diagram (Sable & Taurus 3.8L)

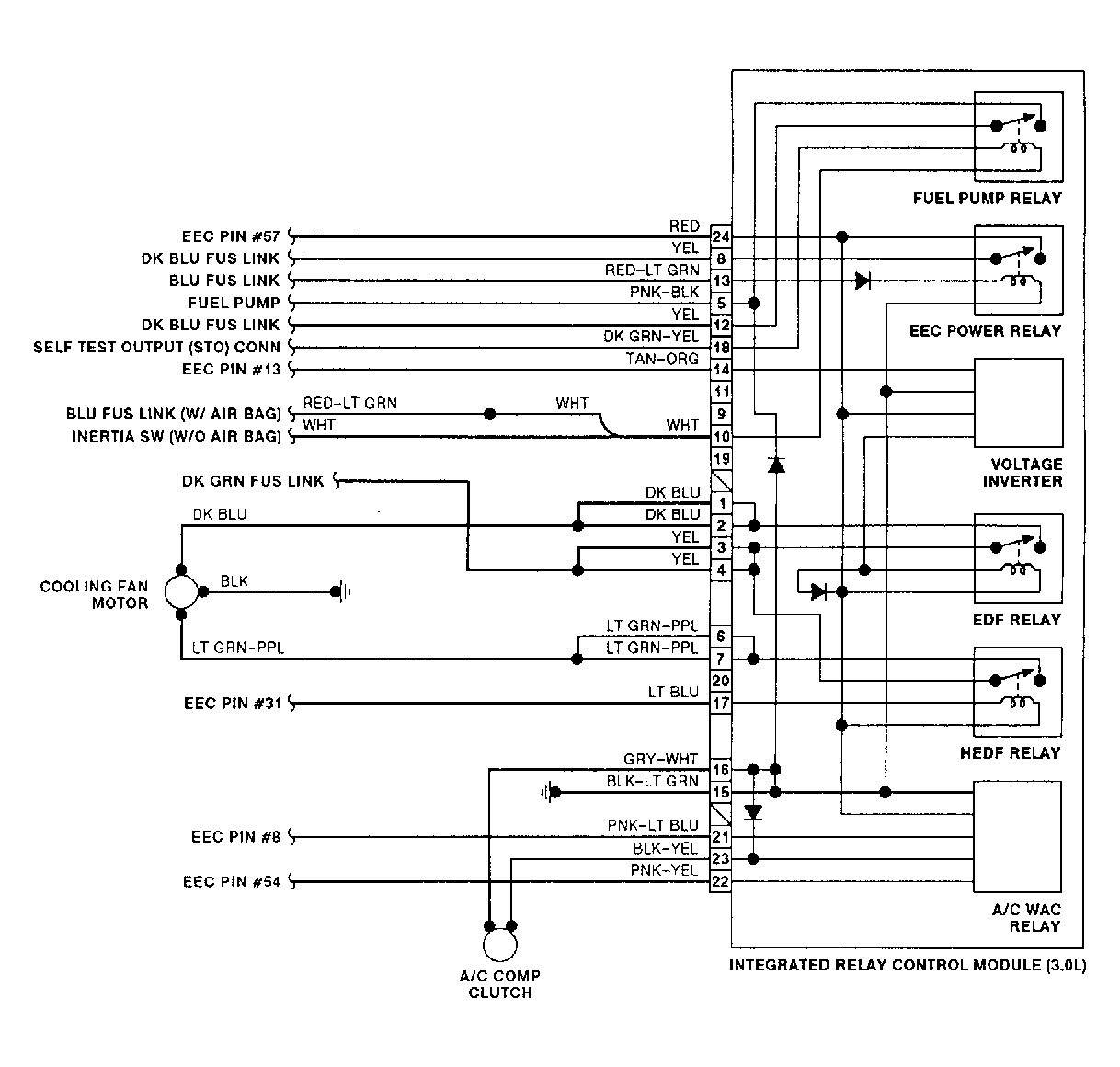

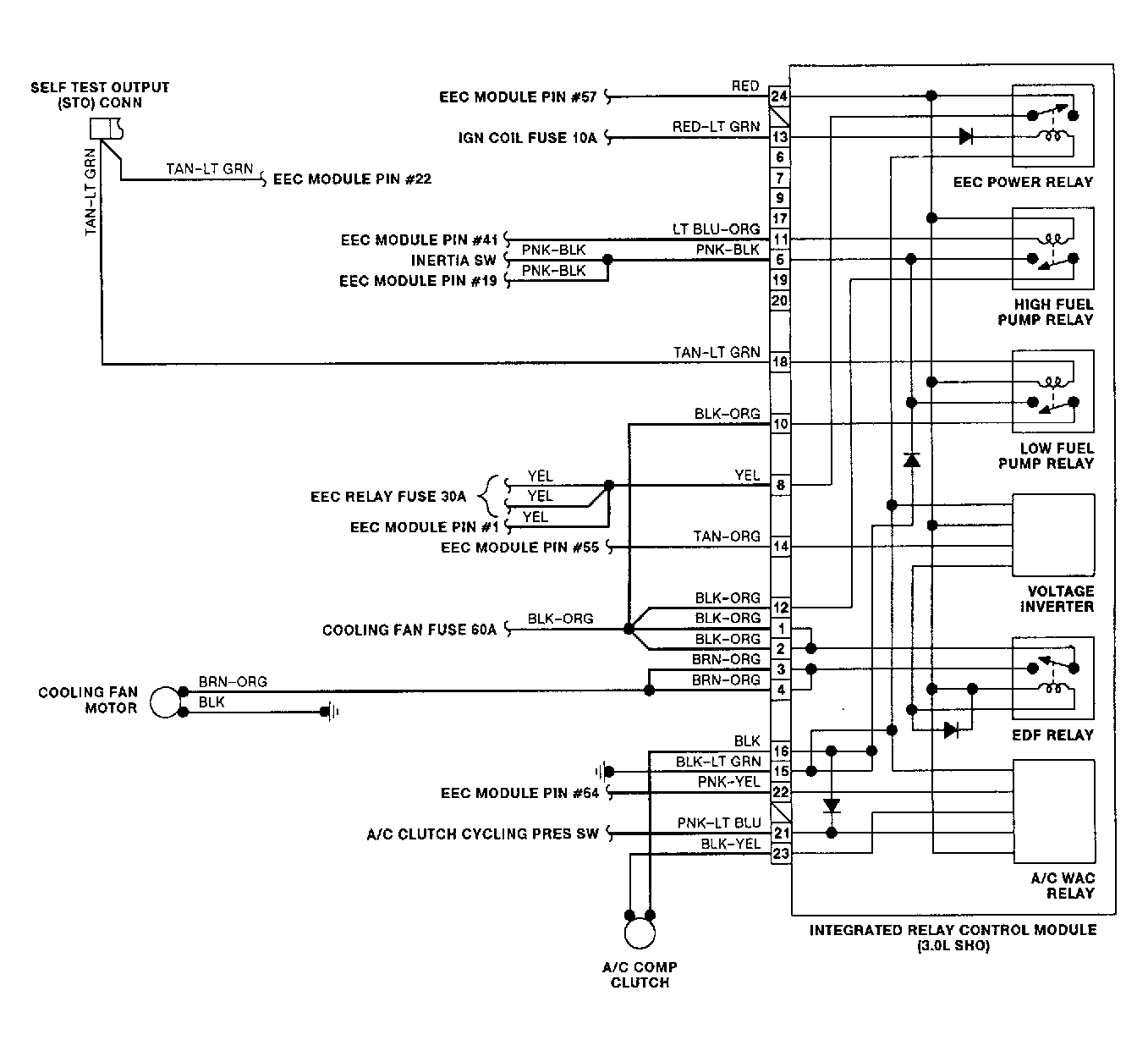

Fig 9: Electric Cooling Fan Wiring Diagram (Taurus 3.0L SHO)

Fig 10: Electric Cooling Fan Wiring Diagram (Tempo & Topaz with A/C)

Fig 11: Electric Cooling Fan Wiring Diagram (Tempo & Topaz w/o A/C)

Fig 12: Electric Cooling Fan Wiring Diagram (Thunderbird 3.8L SC)
