Qt-6 Abs Service Code Retrieval

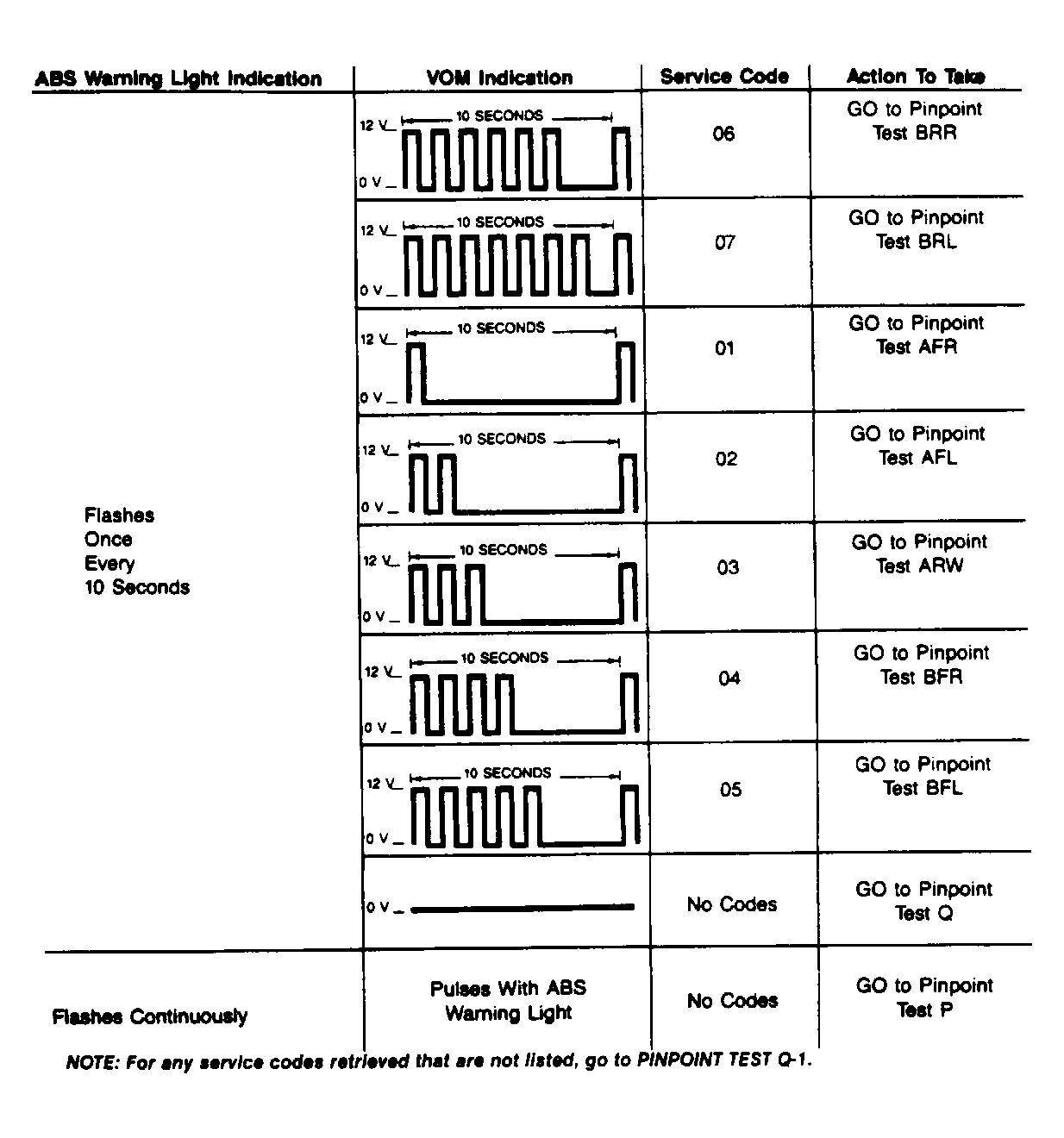

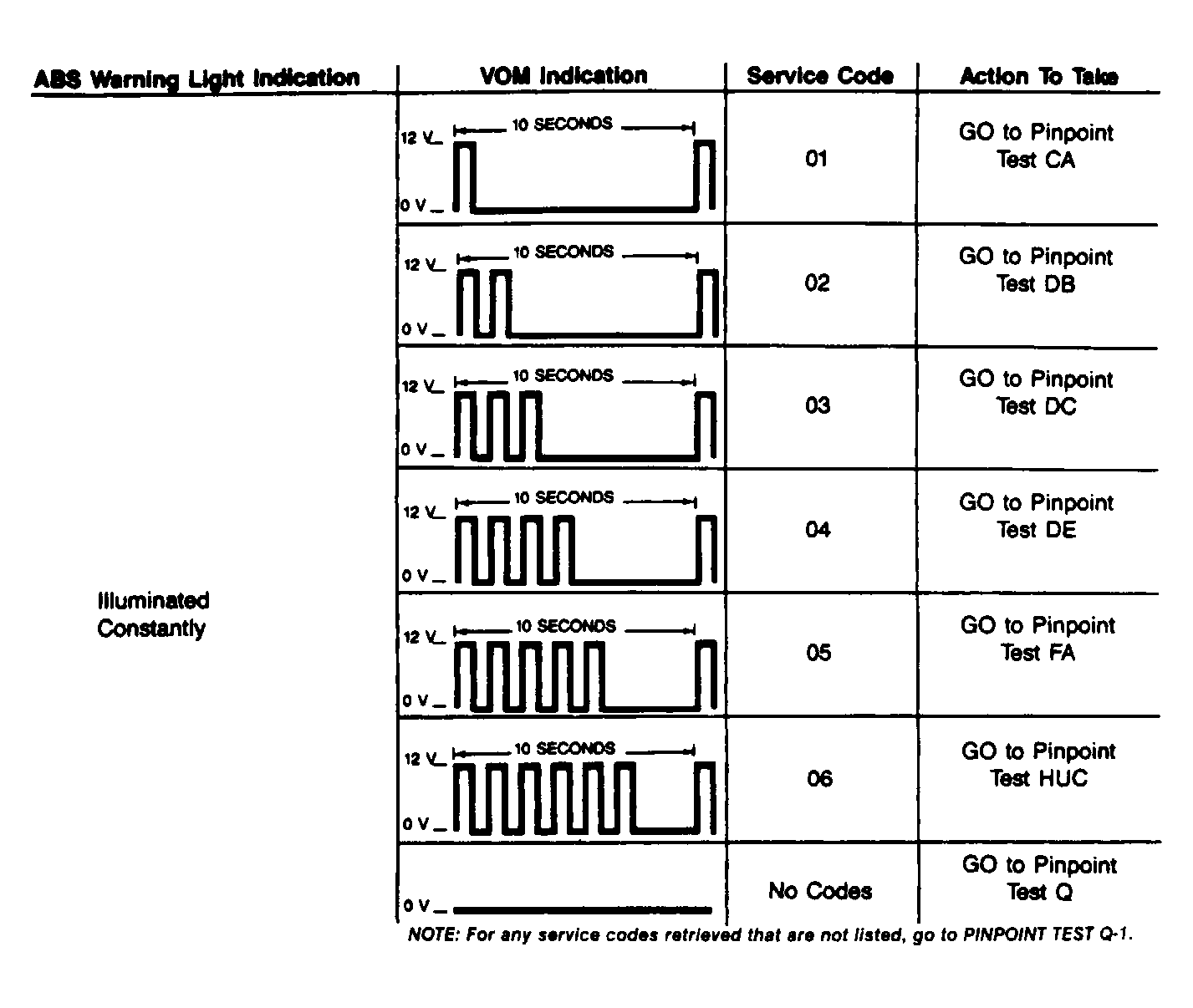

Verify that ABS warning light was on in QT-3 and QT-4. Start engine and observe ABS warning light. Light should flash once every 10 seconds. Record voltmeter service codes and refer to CODE IDENTIFICATION CHART "A". See Figure . If light stays on constantly, record voltmeter service codes and refer to CODE IDENTIFICATION CHART "B". See Figure . If light flashes more than once every 10 seconds, this indicates intermittent fault. Record any service codes and proceed to QT-7 CONTINUOUS TEST  .
