Engine Controls - Specifications - Diesel
>>
Belt Routing Diagrams
Belt Routing Diagrams

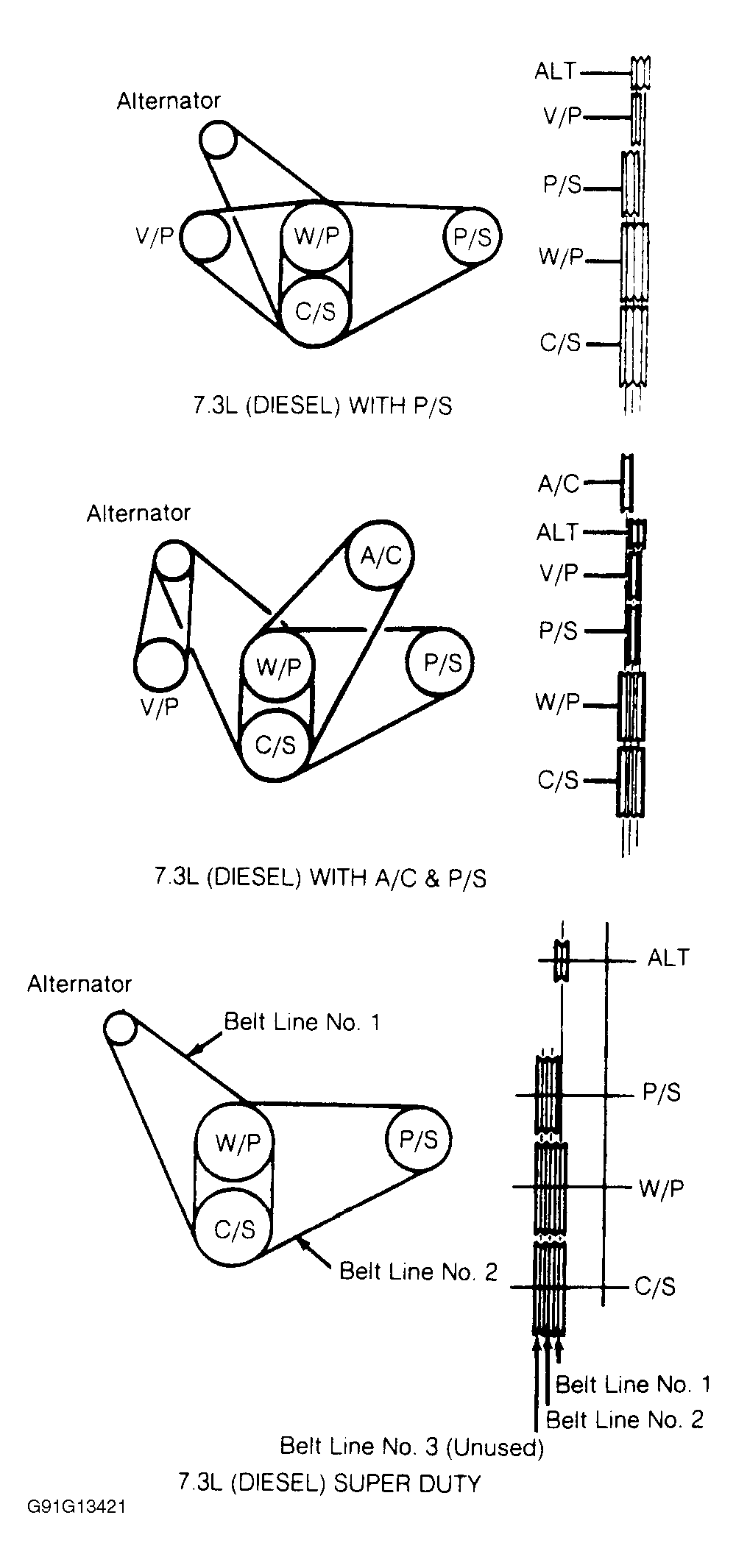

Fig 1: Checking Belt Routing (7.3L Diesel)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
