Window Motor: Removal

  1. Disconnect battery negative ground cable.
  2. Remove door trim panel and watershield. DOOR TRIM PANEL (BRONCO & F-SERIES)  or DOOR TRIM PANEL (ECONOLINE)  .
  3. Disconnect power window motor wire from harness connector.
  4. Check inside the door to ensure electrical wires are not in line with holes to be drilled in the door panel. Using a 1/2" (12.7 mm) diameter drill bit, drill two holes in door inner panel at drill dimples located opposite two exposed motor drive retainer screws.
  5. Remove three motor mount retainer screws using two drilled holes and existing larger hole access to screw heads.
  6. Push the motor toward outside sheet metal to disengage motor and drive from regulator gear. After motor and drive are disengaged, prop window in full UP position.
  7. Remove motor and drive from inside door.

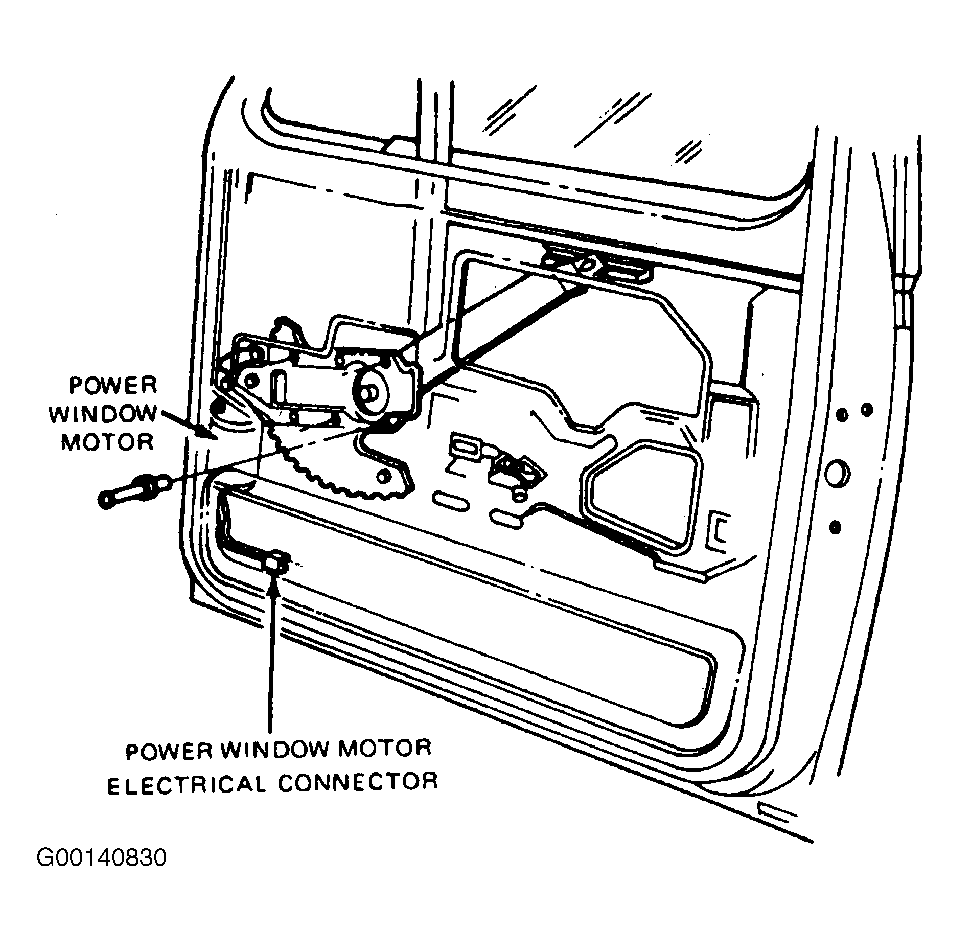

Fig 1: Window Motor (Bronco & F-Series)
G00140830Courtesy of FORD MOTOR CO.
Fig 2: Window Motor (Econoline)
G00140831Courtesy of FORD MOTOR CO.
