Tailgate Glass (Bronco): Installation

1. Slide glass midway into tailgate assembly.
2. Connect heated glass wires, if so equipped.
3. Install glass bracket C-channels onto regulator arm slide guides. See View A in Fig 1.
4. Position tailgate glass over glass bracket C-channel studs and install four spacers, retainers and rivets. See View A in Fig 1.
5. Lower glass to connect heated glass wiring terminals.
6. Close tailgate and cycle glass to ensure smooth operation.
7. Install watershield.
8. Install inside cover panel support (1 screw).
9. Install ten inside cover access panel screws. See Main View in Fig 1.
10. Close door and cycle tailgate to ensure proper function.

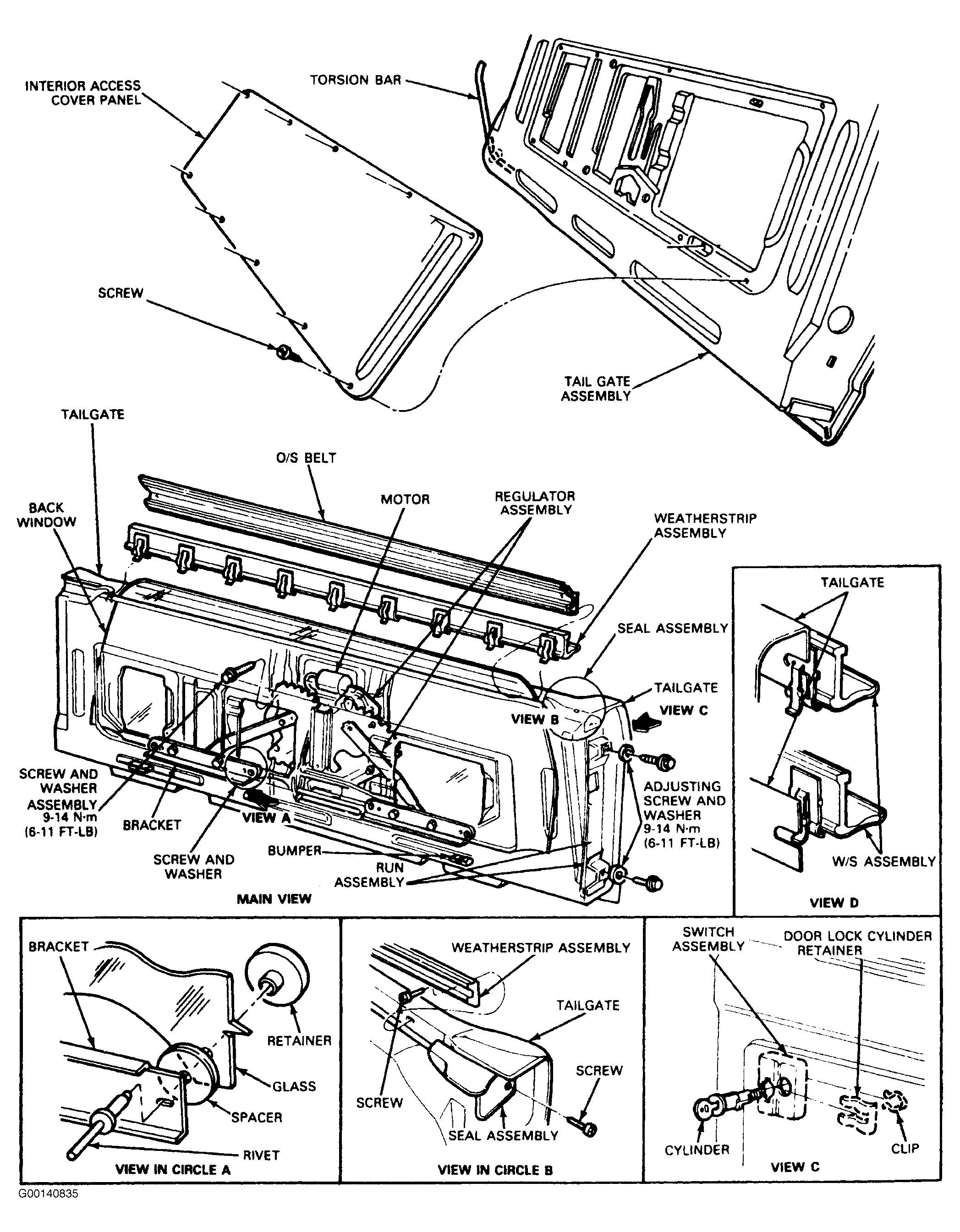

Fig 1: Exploded View Of Tailgate Glass (Bronco)
