Component Locations(ECONOLINE)

COMPONENT LOCATIONS(ECONOLINE)

Component Location
Ground G201 Behind Left Side Of Instrument Panel, Near Fuel Tank Selector Switch
Interior Fuse Panel Lower Left Side Of Instrument Panel. See Fig 1.

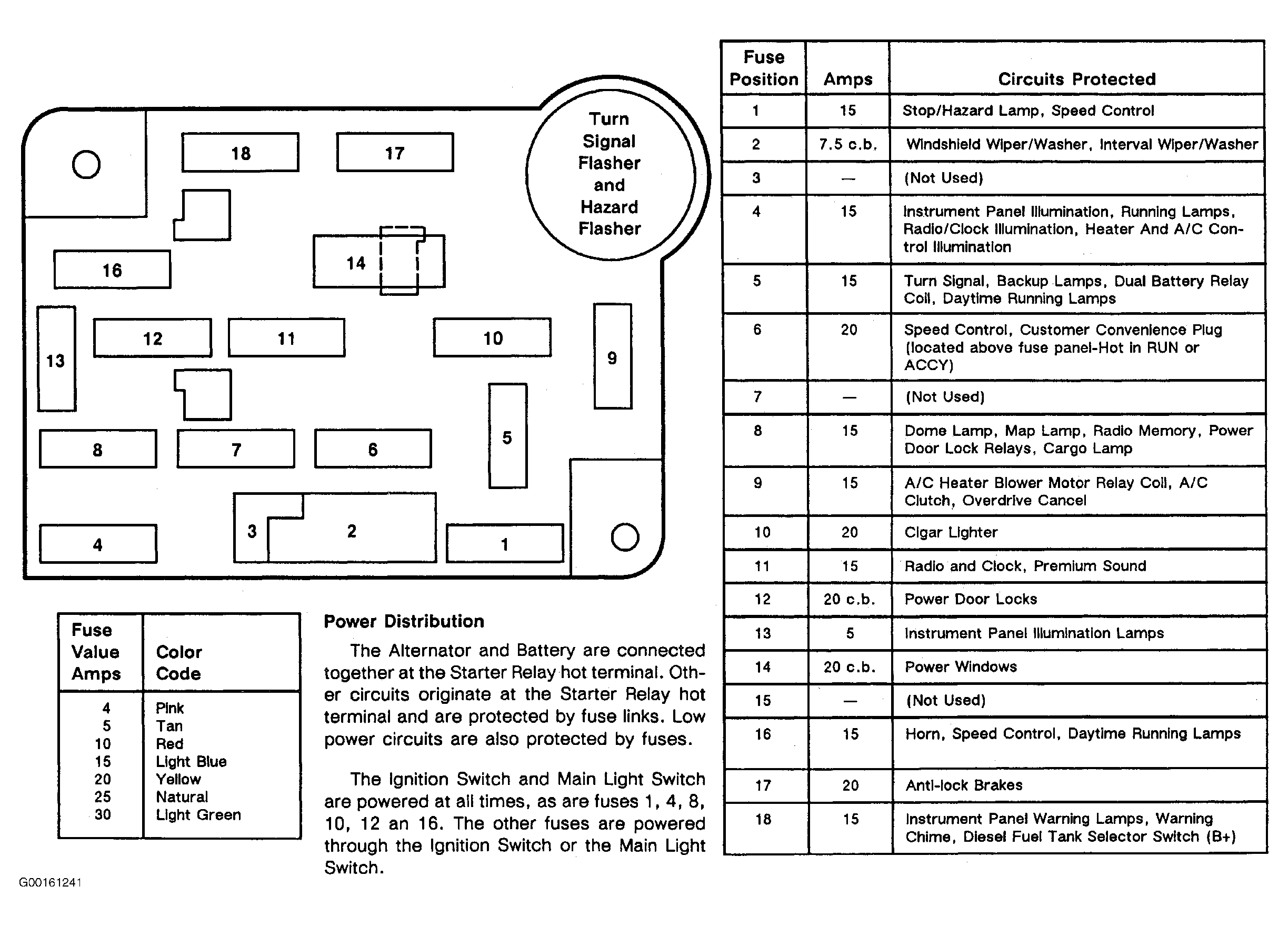

Fig 1: Identifying Interior Fuse Panel Components (Econoline)
G00161241Courtesy of FORD MOTOR CO.
