Front Door Window Mechanism

The front door windows can be adjusted fore or aft on these vehicles by loosening the front division bar lower attaching screws and the rear run retainer lower attaching screws. See Fig 1 or Fig 2 .

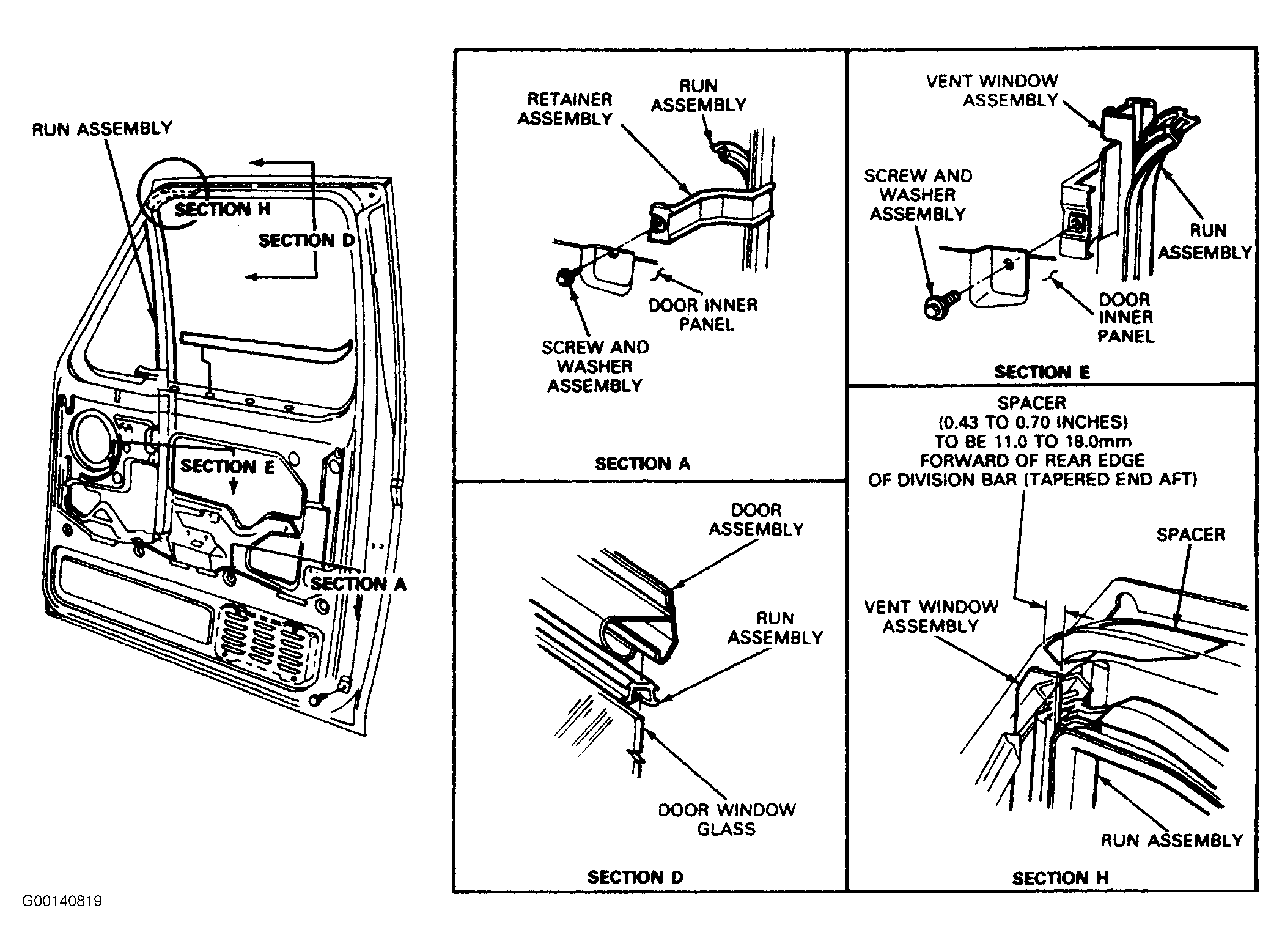

Fig 1: Adjusting Front Window Glass (Bronco & F-Series)

Courtesy of FORD MOTOR CO.

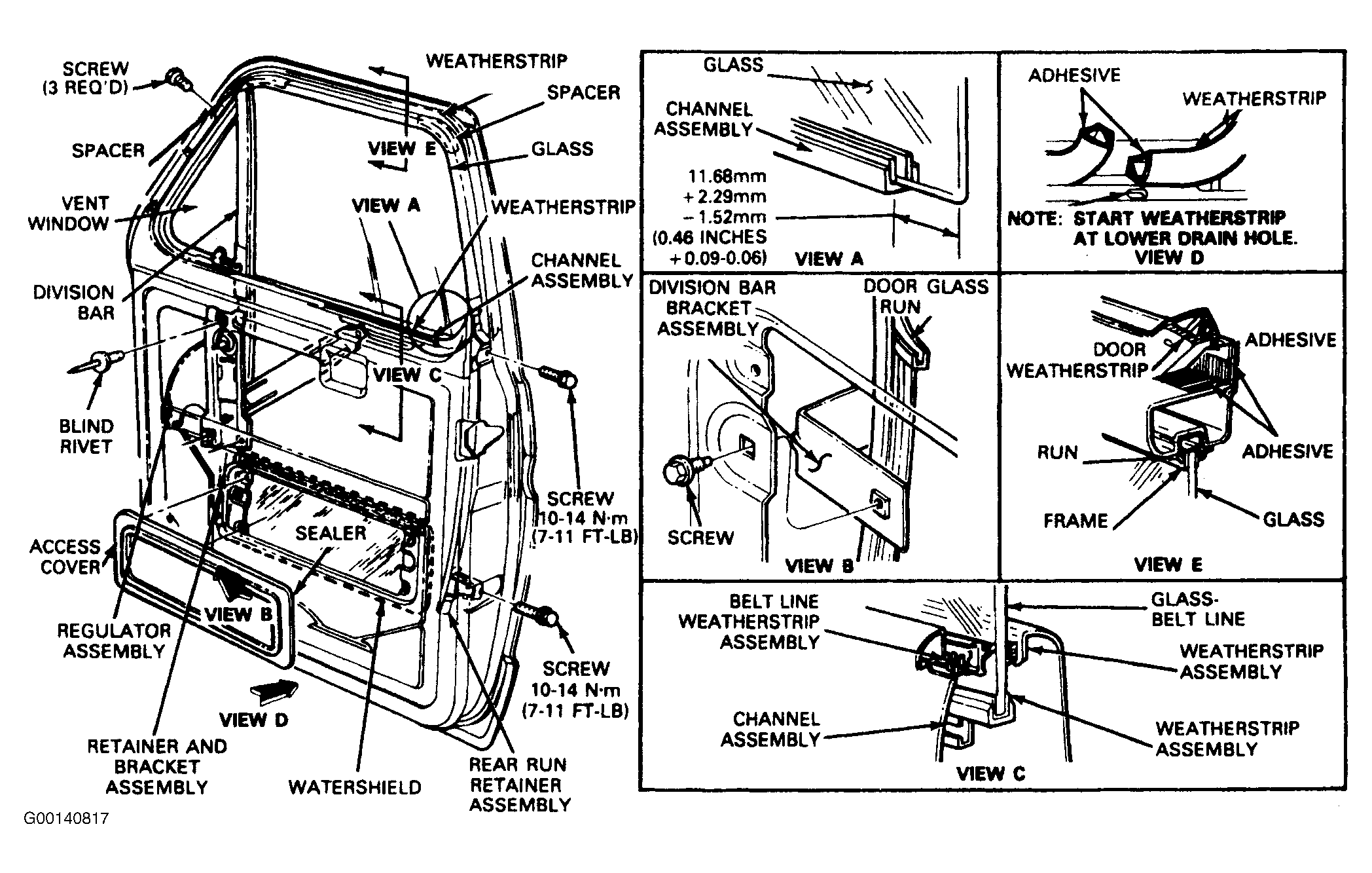

Fig 2: Adjusting Front Window Glass (Econoline)

Courtesy of FORD MOTOR CO.
