Steering System - Variable Assist: Wiring Diagram

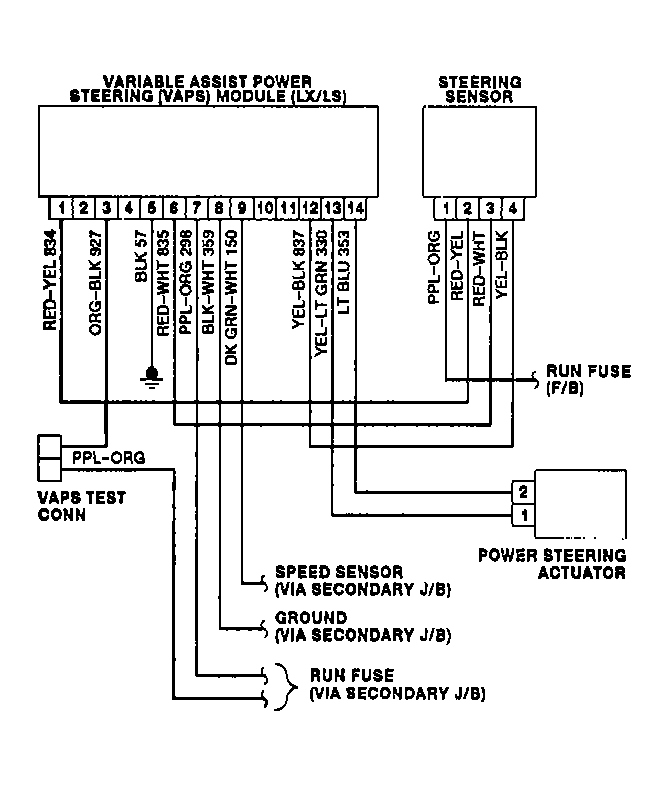

Fig 1: Variable Assist Power Steering Wiring Diagram

G90J06049
