Engine Controls - Tests W/Codes - 3.8L
>>
PFI Service Code Definitions
>>
All PFI & Ma PFI Models
All PFI & Ma PFI Models

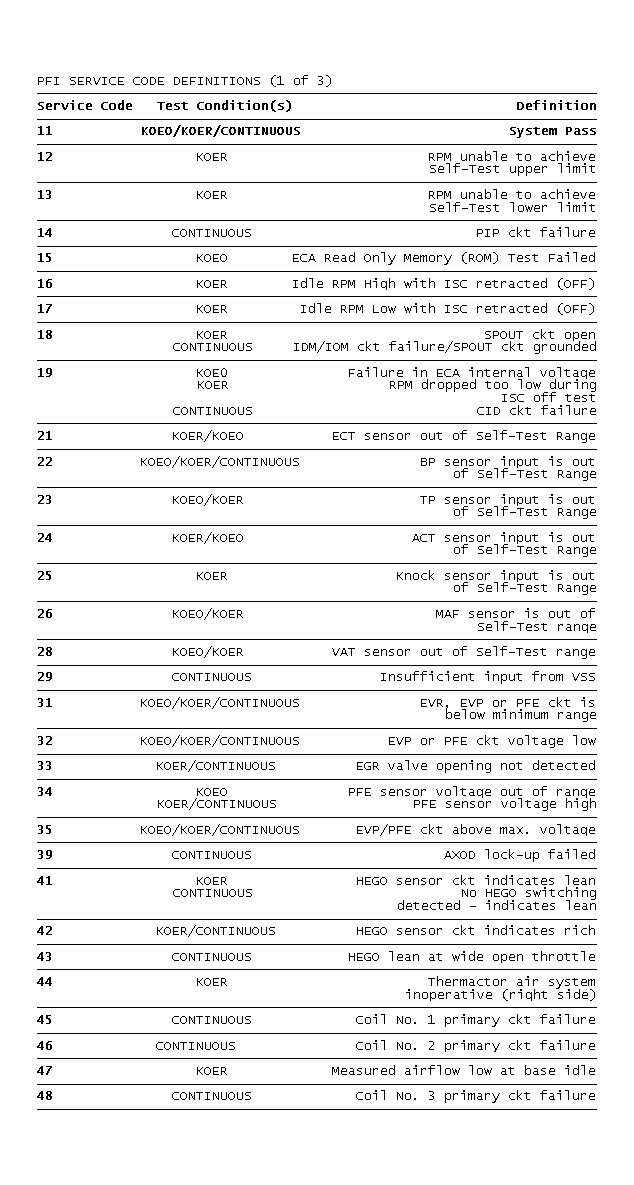

Fig 1: PFI SERVICE CODE DEFINITIONS (1 of 3)

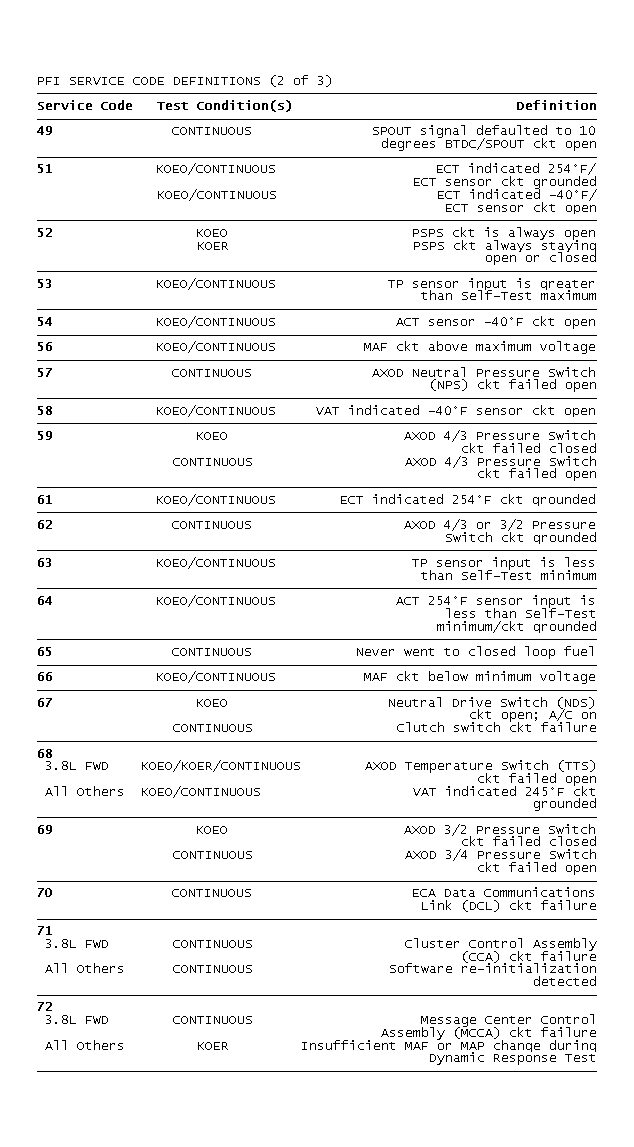

Fig 2: PFI SERVICE CODE DEFINITIONS (2 of 3)

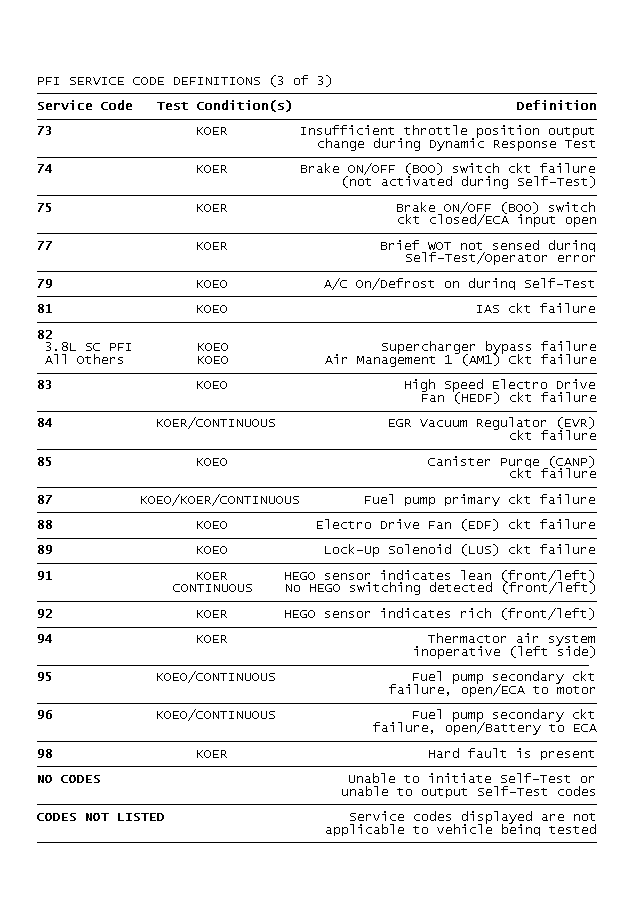

Fig 3: PFI SERVICE CODE DEFINITIONS (3 of 3)
