Control Module
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1990 Mercury Sable, 1990 Mercury Grand Marquis, 1990 Lincoln Town Car, 1990 Lincoln Continental, and 1990 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

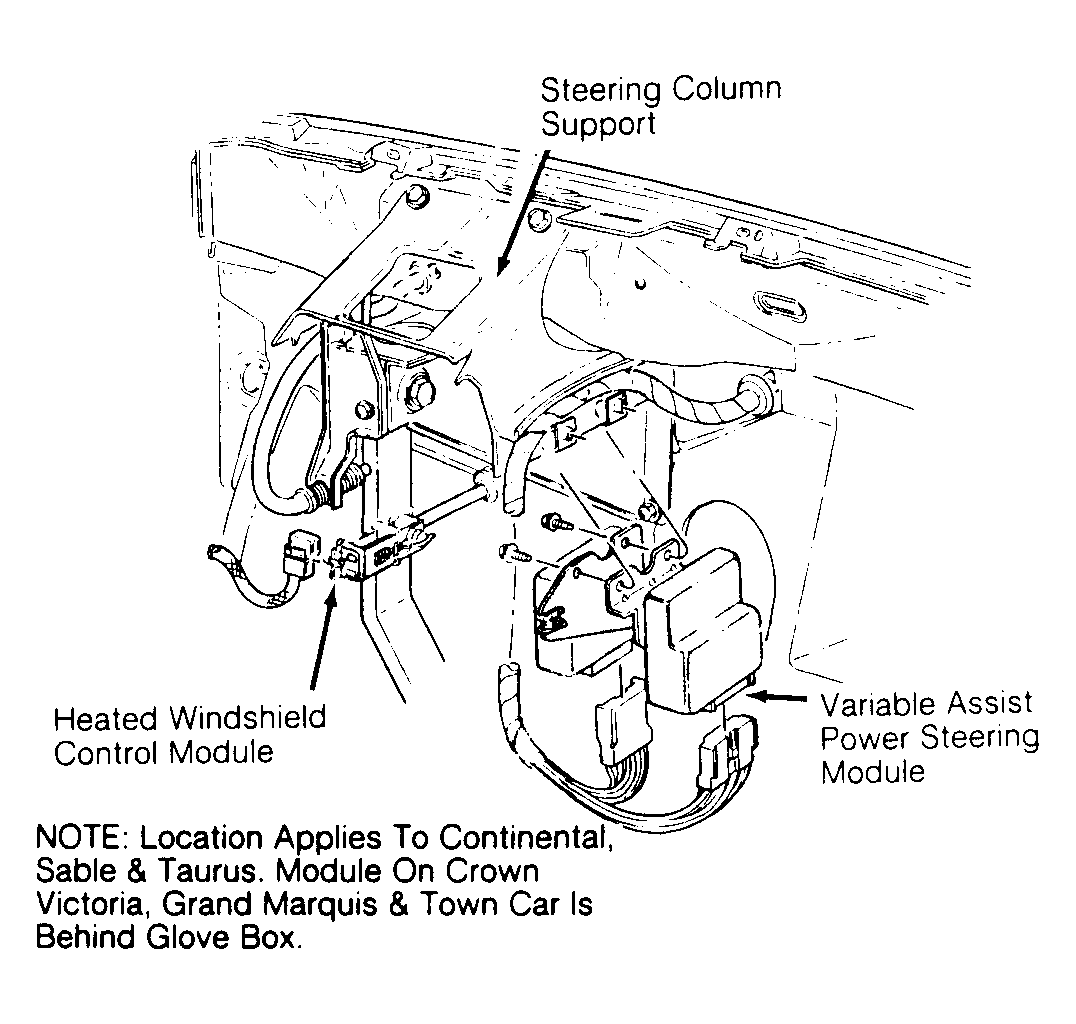

The control module is the main switching control for all system operations. See Fig 1 . It also has 4 other functions:
- It contains a thermistor which prevents heated windshield operation if passenger compartment temperature is above 50°F (10°C).
- Contains timers that limit system operation to 4 minutes per cycle.
- Provides a link to the EEC-IV ECA to increase engine idle during heated windshield operation.
- It is linked to the sense resistor that prevents system operation if the windshield is cracked or damaged.
