Home >> Ford >> 1990 >> Tempo Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Basic Testing >> Supercharger (THUNDERBIRD & Cougar) >> Diagnosis

Supercharger (THUNDERBIRD & Cougar): Diagnosis

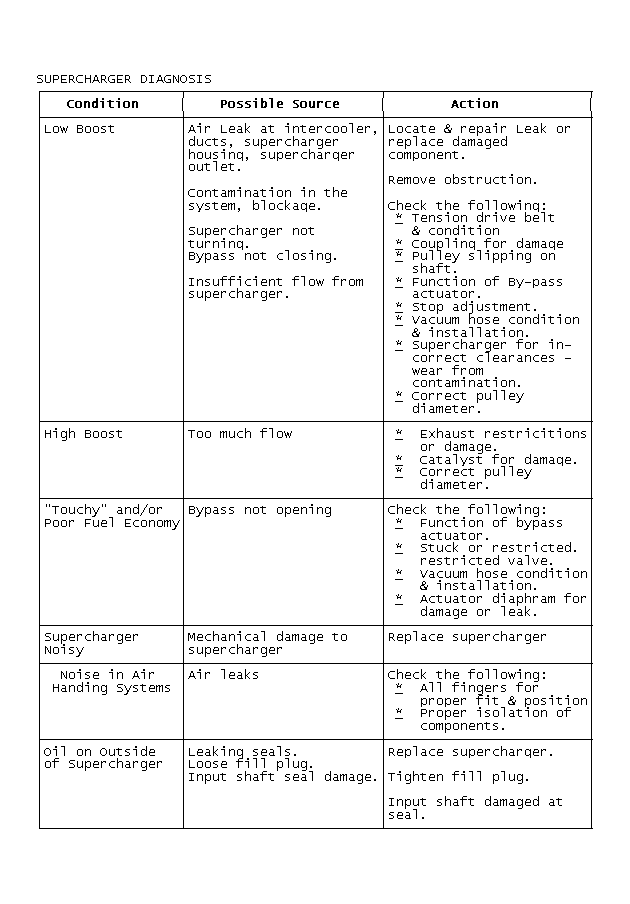

Fig 1: SUPERCHARGER DIAGNOSIS

GB0044616
