Alternator & Regulator - Models W/Internal Fan: Description

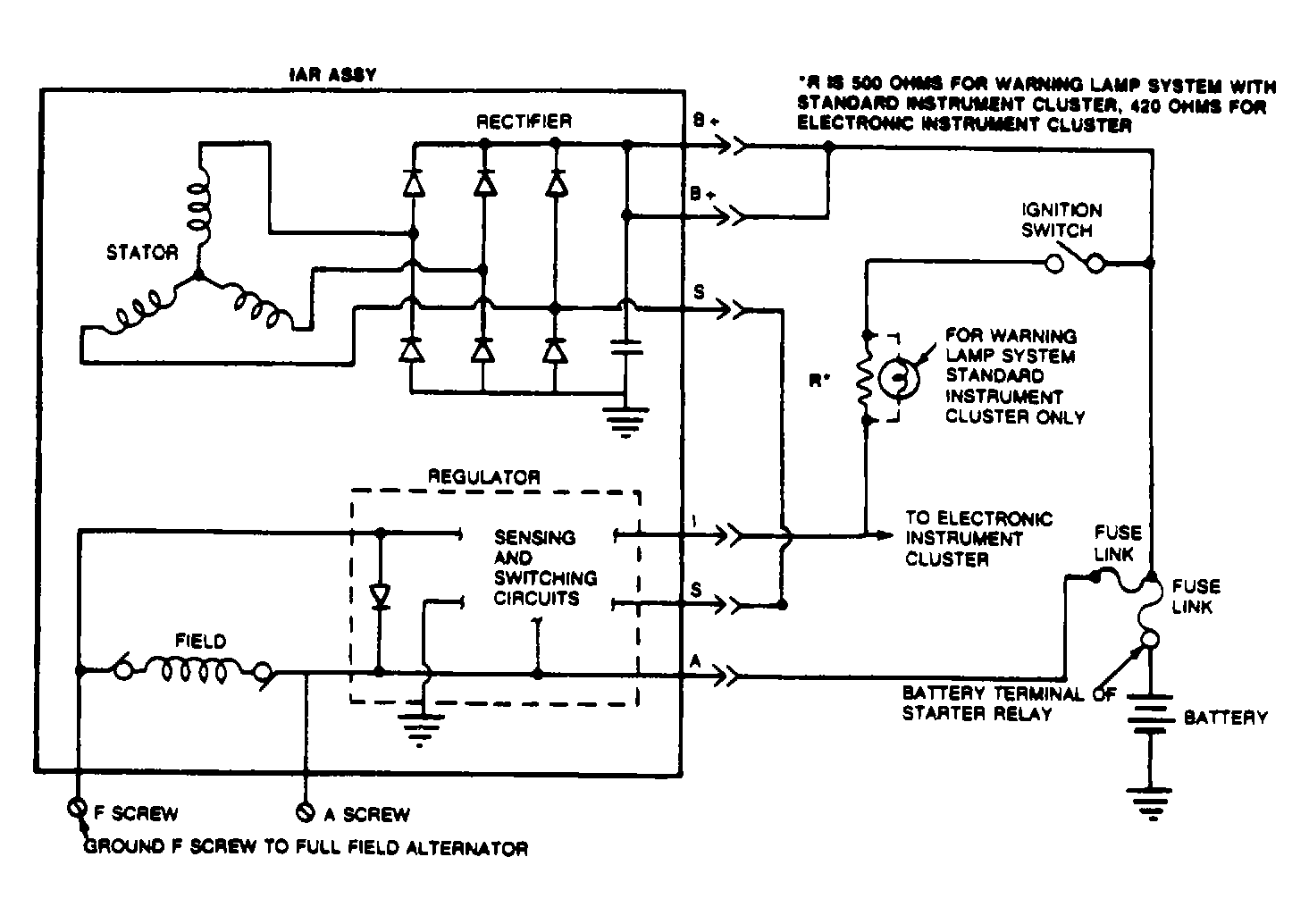

The Motorcraft Integral Alternator-Regulator (IAR) system with internal fan has an electronic voltage regulator mounted on the rear side of the alternator. Current is supplied from alternator/regulator system to rotating field of alternator through 2 brushes contacting 2 slip rings. Alternating current is rectified to direct current by 6 diodes. See Figure.
Some models are optionally equipped, see appropriate ALTERNATOR article in this section listed below.
- ALTERNATOR & REGULATOR - MODELS W/INTERNAL FAN
- ALTERNATOR - W/EXTERNAL REGULATOR
- ALTERNATOR & REGULATOR - W/EXTERNAL FAN
