Instrument Panel - Electronic: Testing: Notes

NOTE: The following diagnostic charts, circuits and illustrations are supplied courtesy of Ford Motor Co.

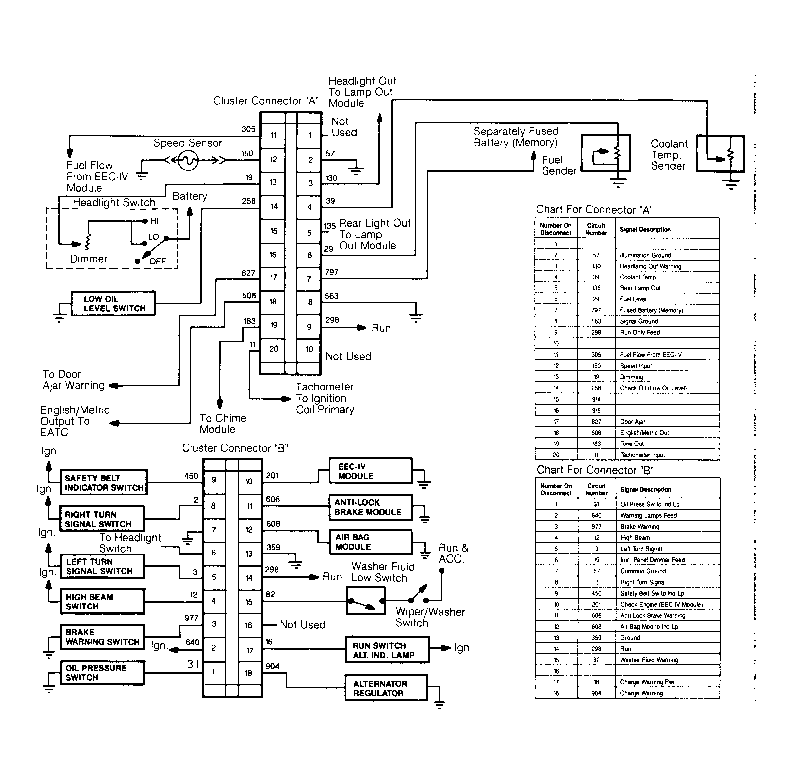

Fig 1: Instrument Cluster Connector Identification
G90J08289Courtesy of FORD MOTOR CO.
