ATX & AXOD

Loosen switch attaching bolts. With manual shaft in neutral detent, align switch using a No. 43 (.089") drill. See Fig 1. Tighten bolts to 84-108 INCH lbs. (9-12 N.m).

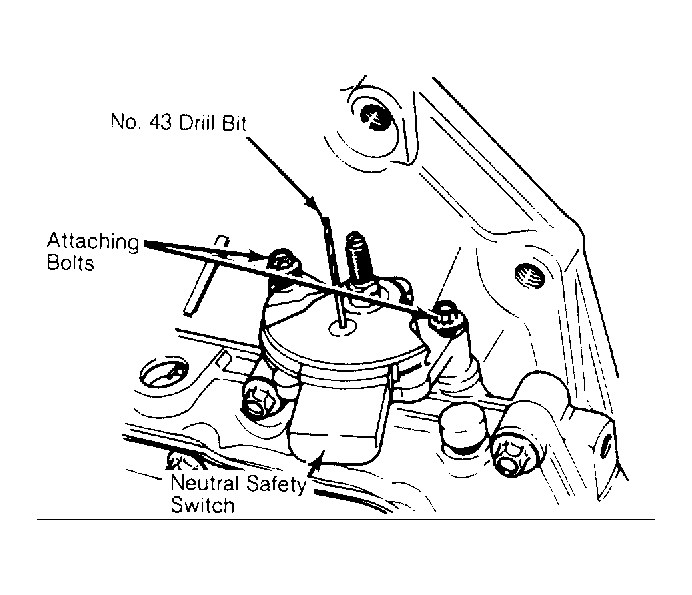

Fig 1: Adjusting ATX & AXOD Neutral Safety Switch

Courtesy of FORD MOTOR CO.
