Wiring Diagrams

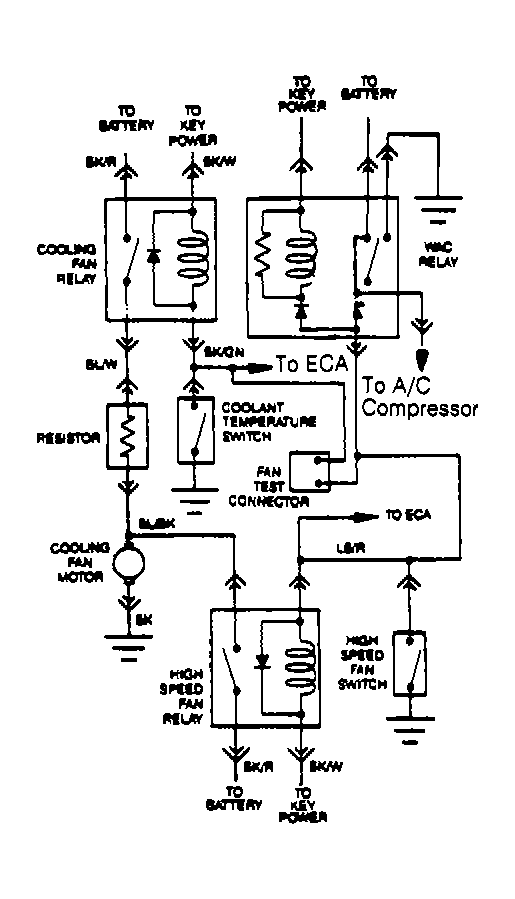

Fig 1: Probe (2.2L A/T) Electric Cooling Fan Schematic

G90I02531

Courtesy of FORD MOTOR CO.

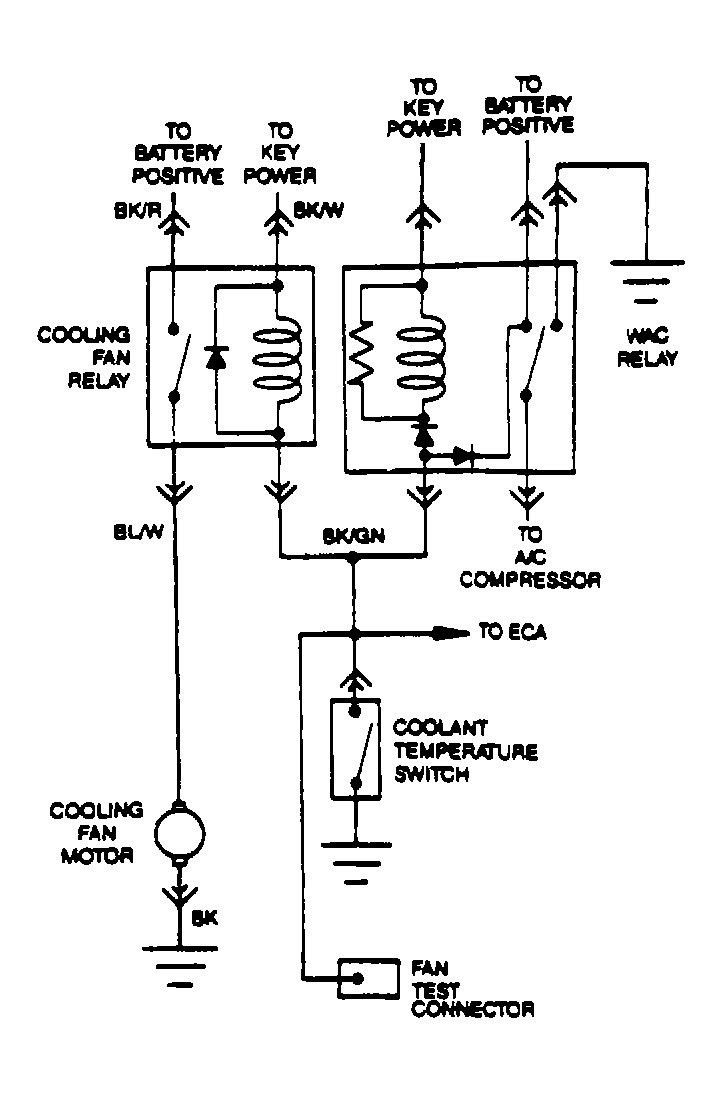

Fig 2: Probe (2.2L M/T) Electric Cooling Fan Schematic

G90A02532

Courtesy of FORD MOTOR CO.
