5.0L Wiring Diagrams

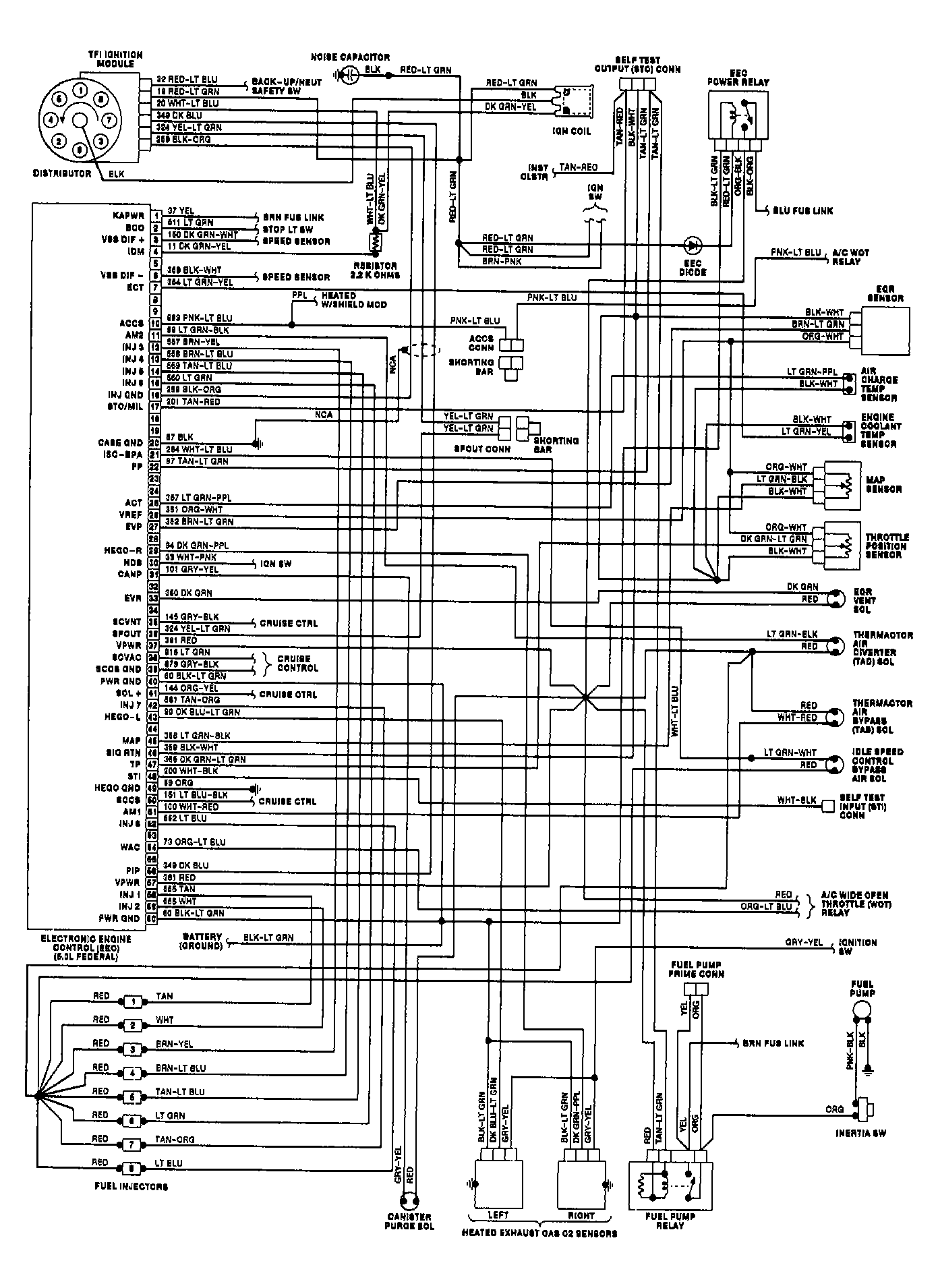

Fig 1: 5.0L Crown Victoria & Grand Marquis (Except MA Calif.)

G90A13649

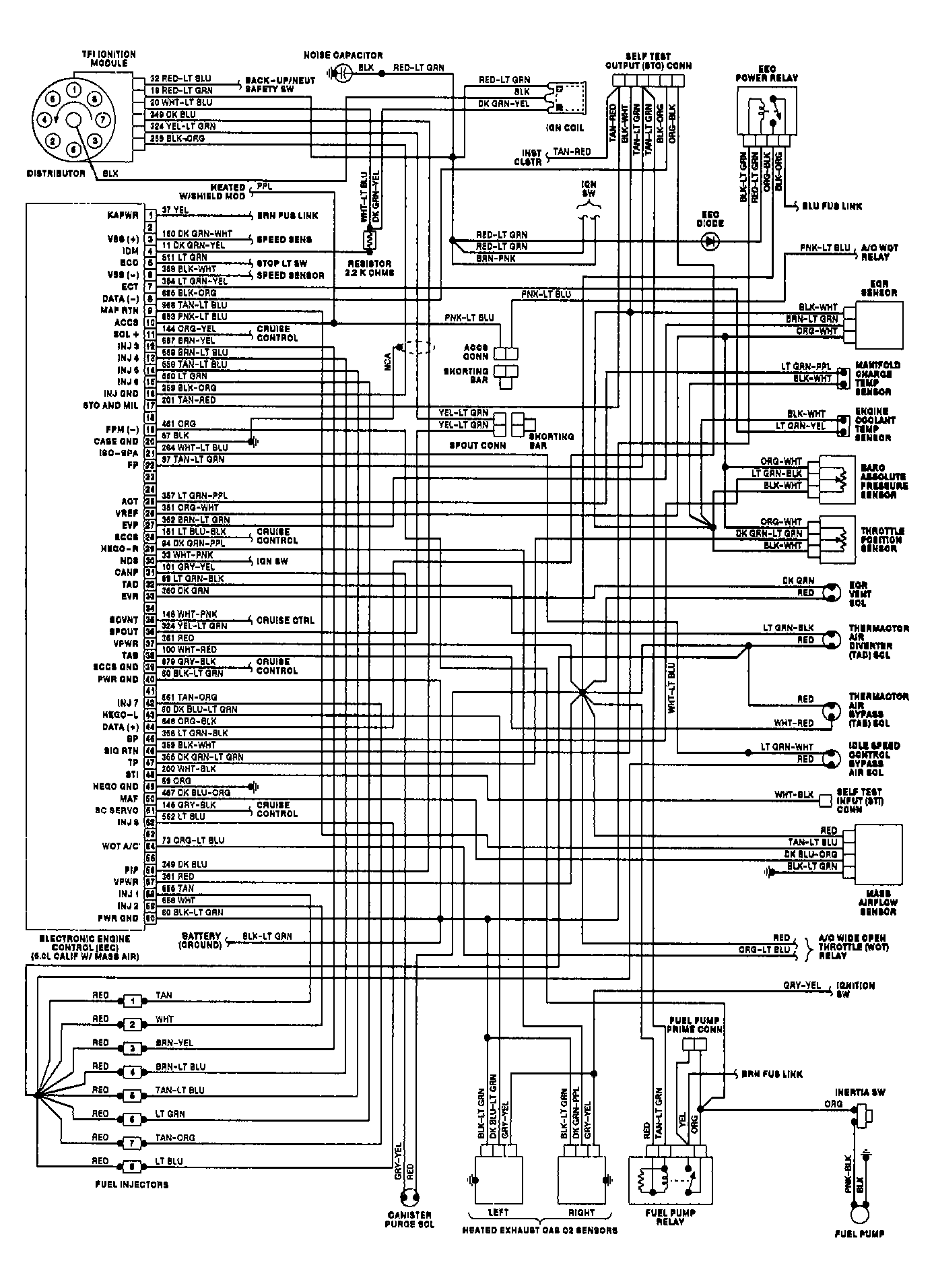

Fig 2: 5.0L Crown Victoria & Grand Marquis (MA Calif.)

G90E13650

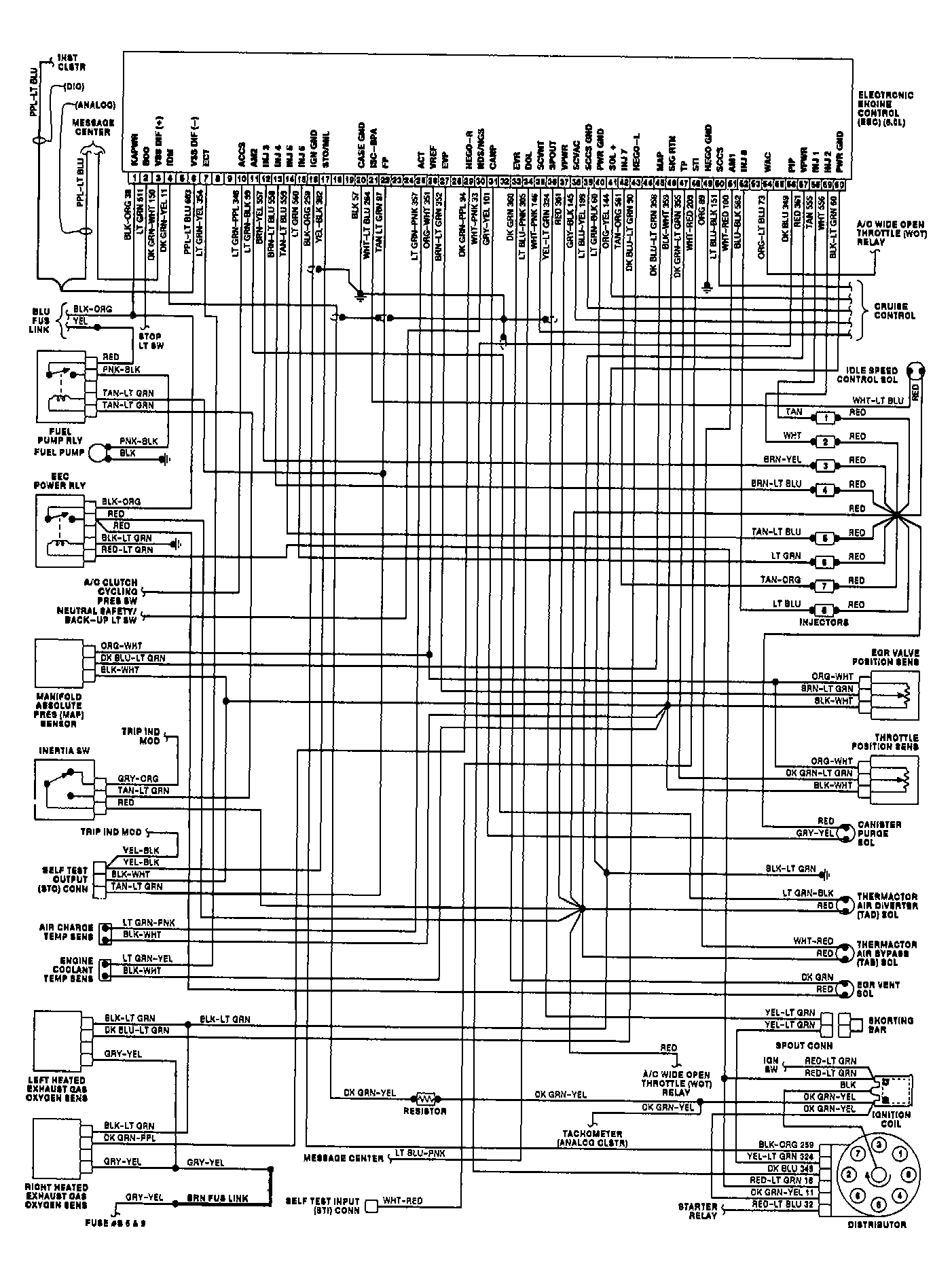

Fig 3: 5.0L Mark VII EEC-IV Wiring Diagram

G90I13654

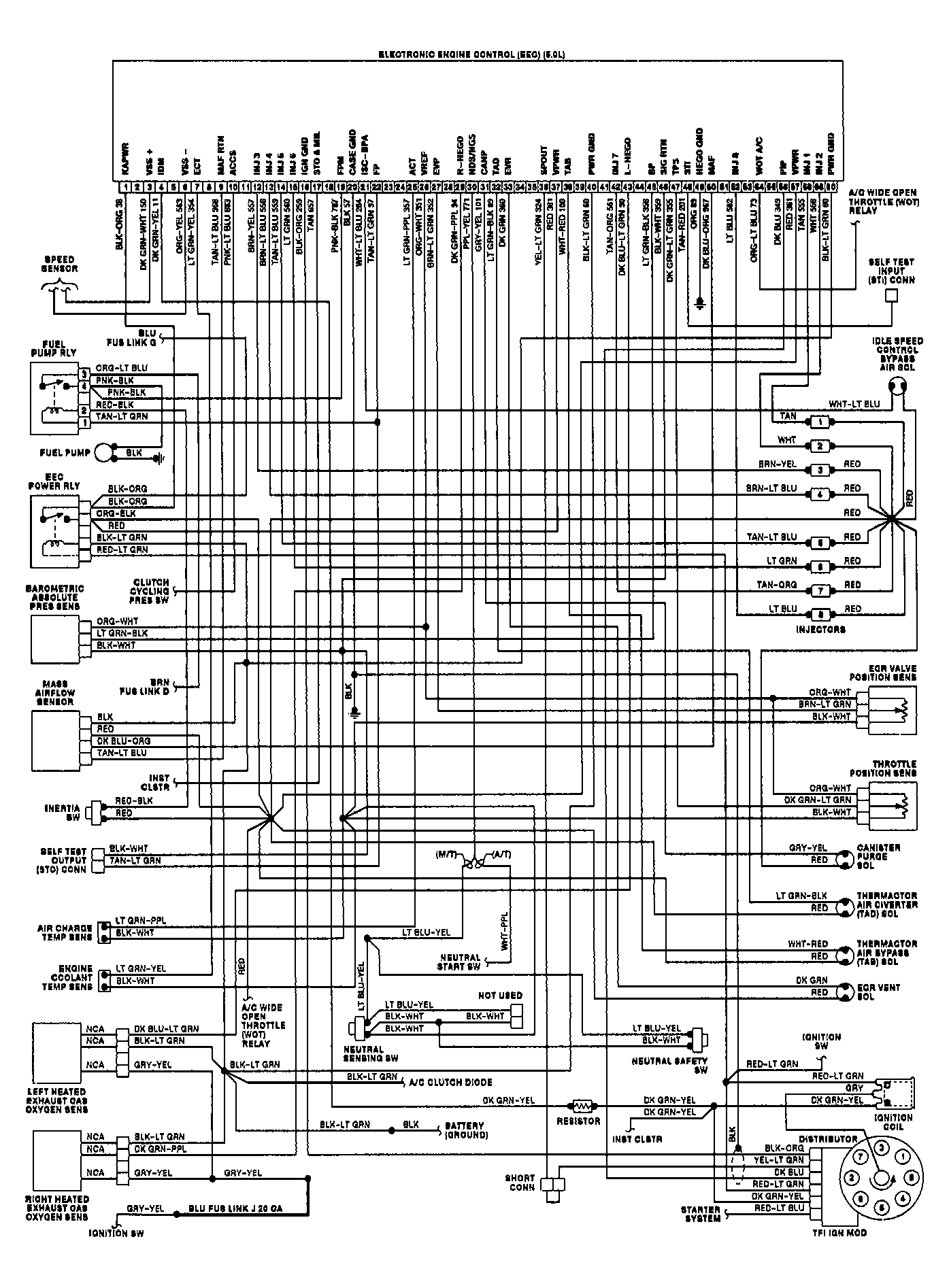

Fig 4: 5.0L Mustang EEC-IV Wiring Diagram

G90B13657

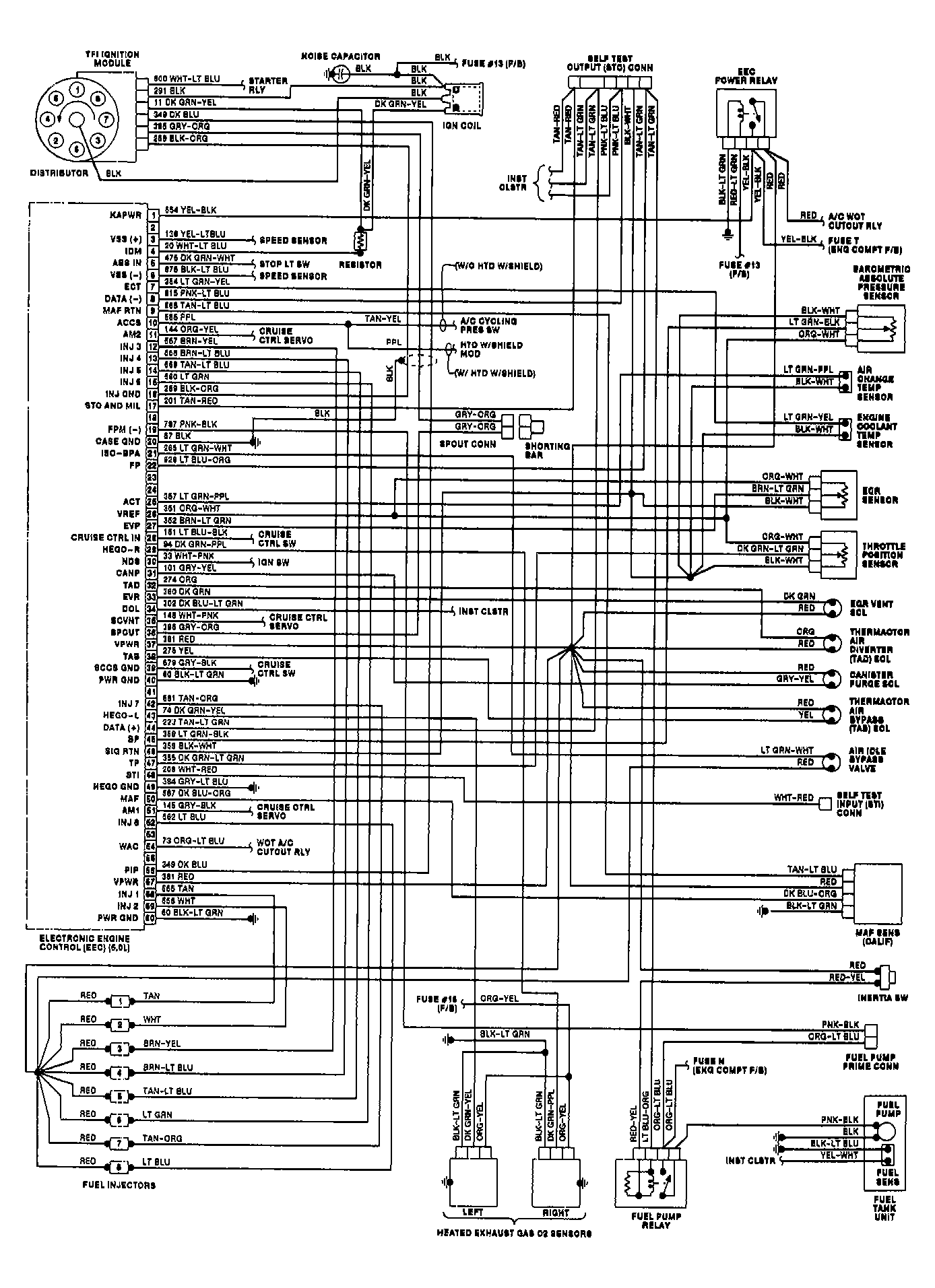

Fig 5: 5.0L Town Car EEC-IV Wiring Diagram

G90F13669
