2.3L Wiring Diagrams

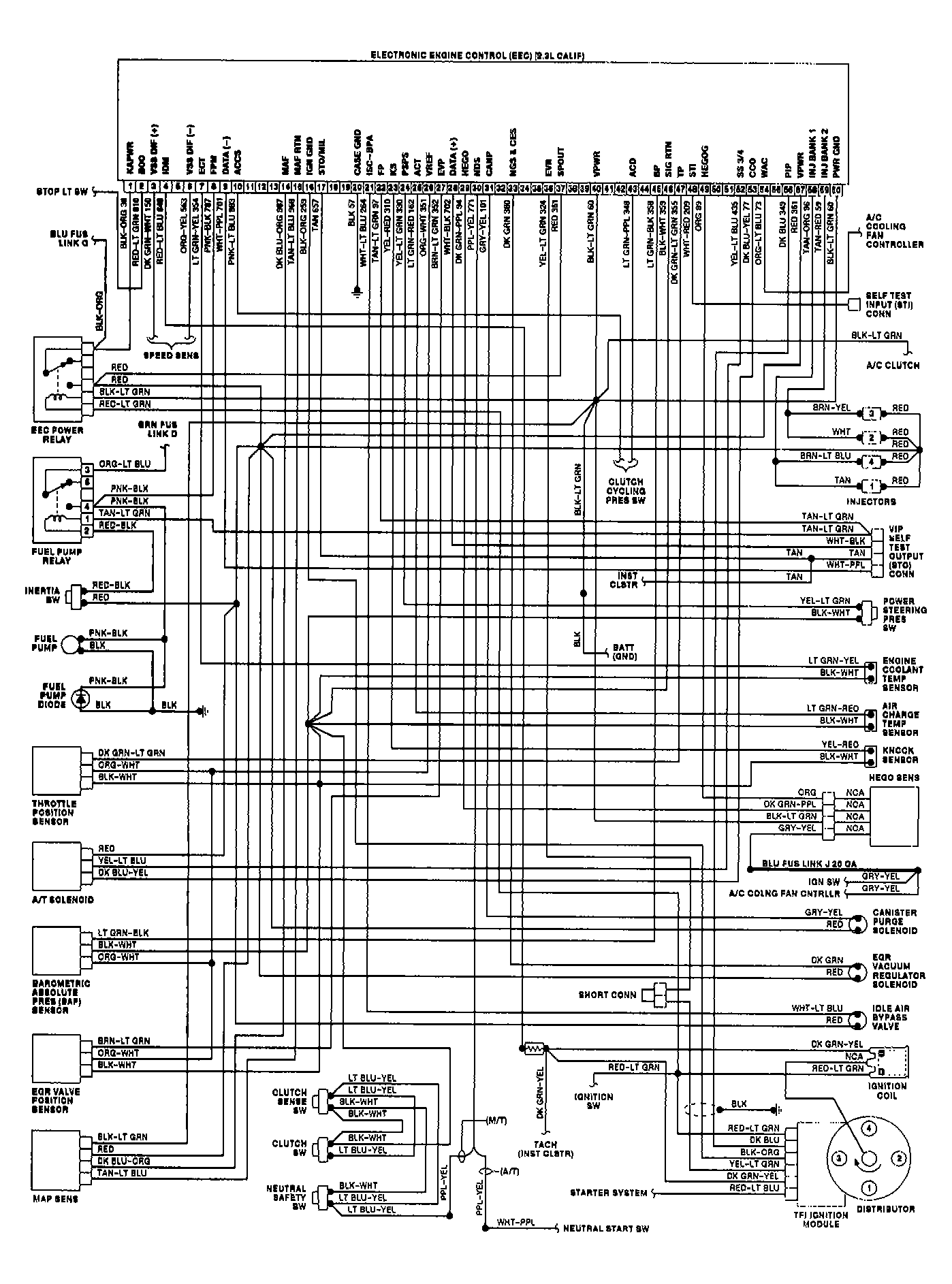

Fig 1: 2.3L Mustang EEC-IV Wiring Diagram (California)

G90J13655

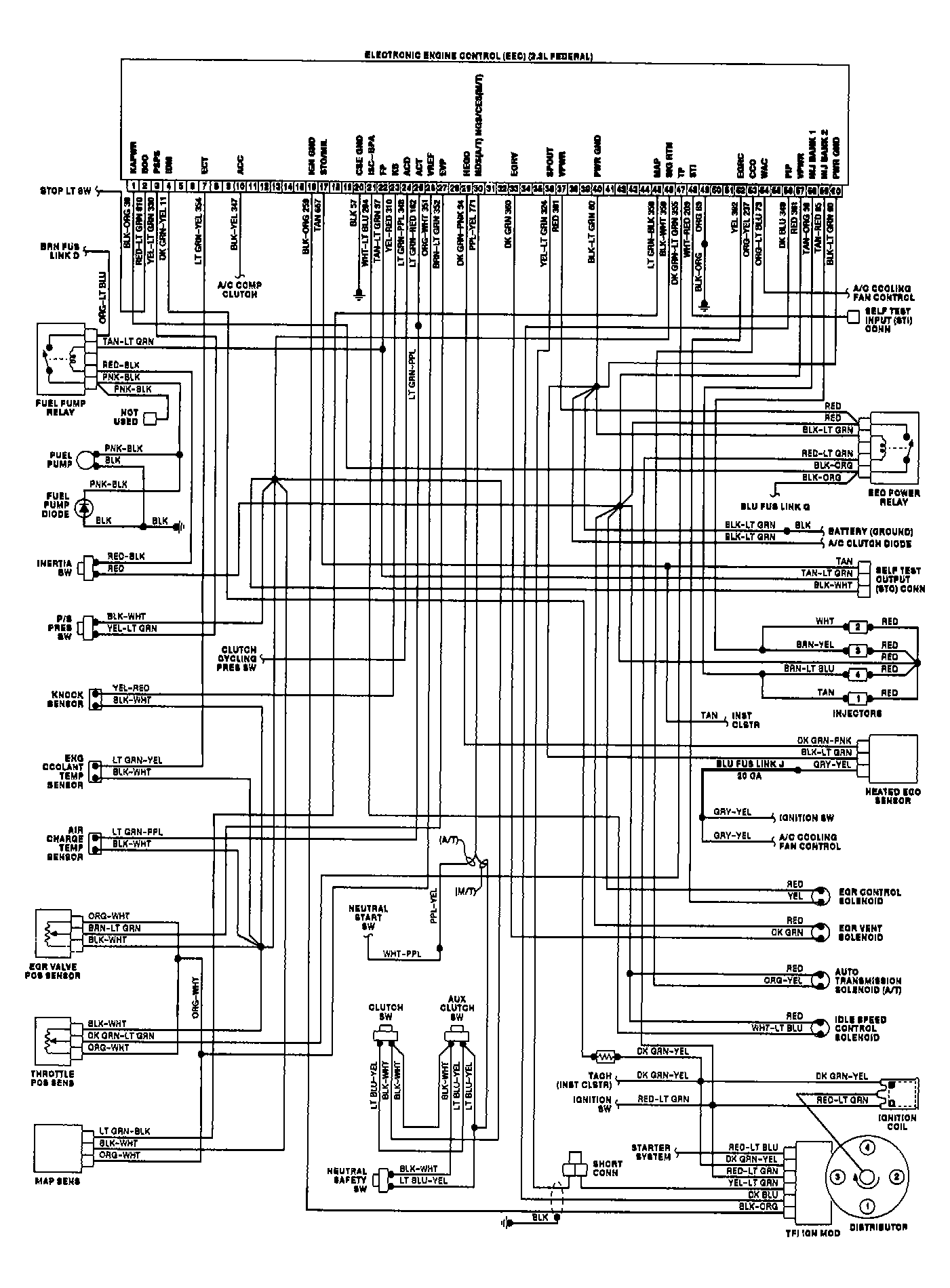

Fig 2: 2.3L Mustang EEC-IV Wiring Diagram (Federal)

G90A13656

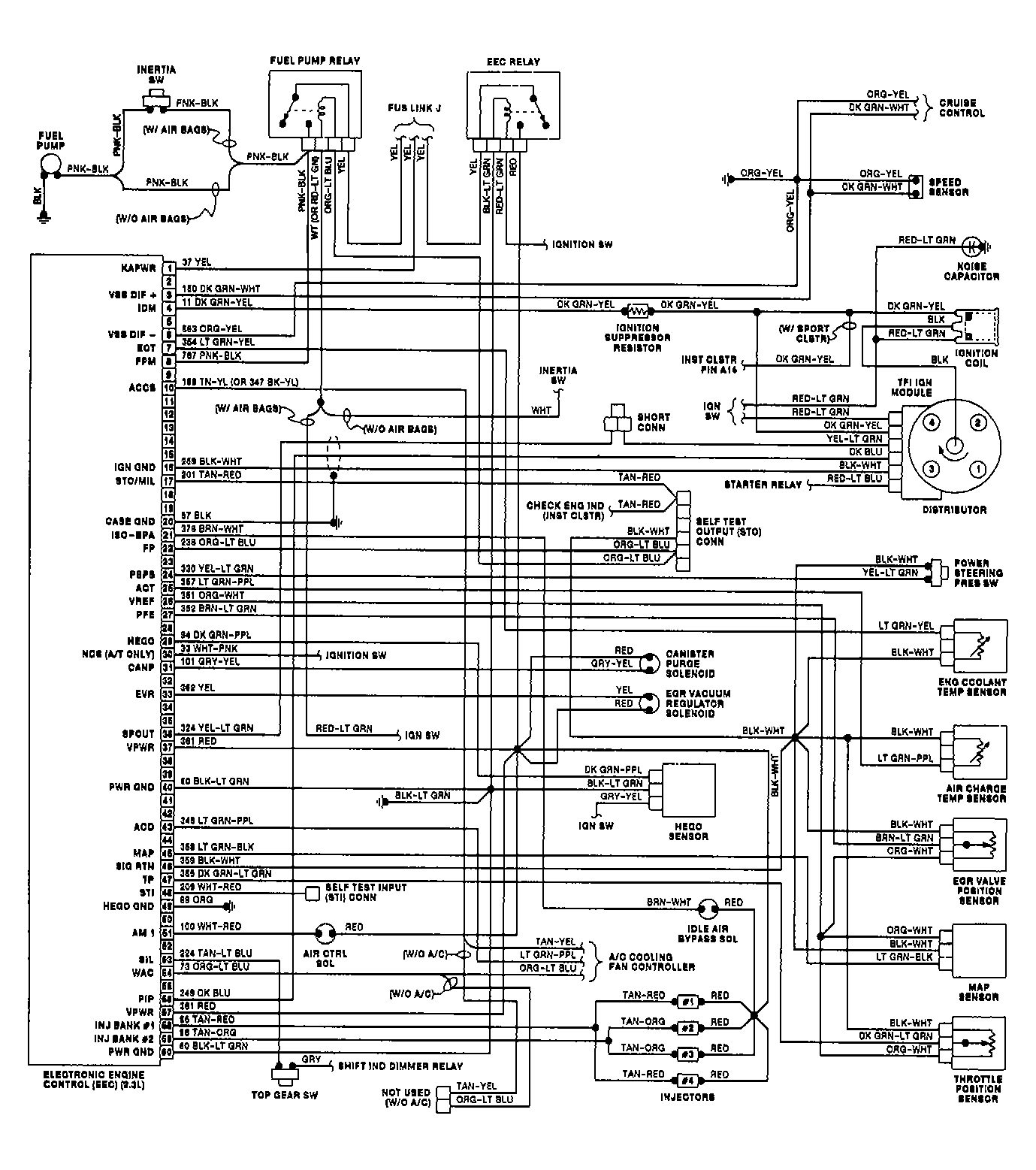

Fig 3: 2.3L Tempo & Topaz EEC-IV Wiring Diagram

G90E13668
