1.9L Wiring Diagrams

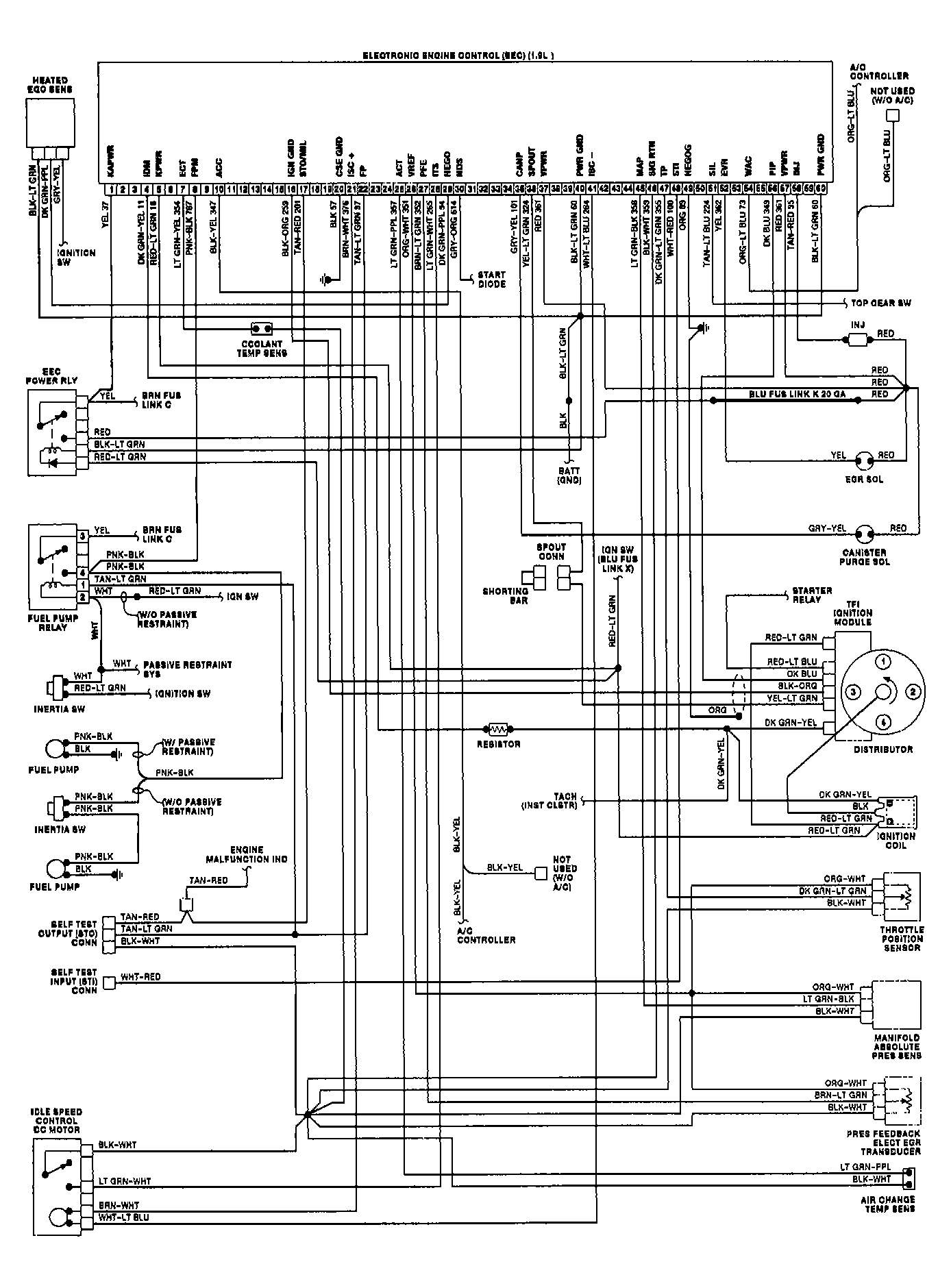

Fig 1: 1.9L TBI Escort EEC-IV Wiring Diagram

G90H13653

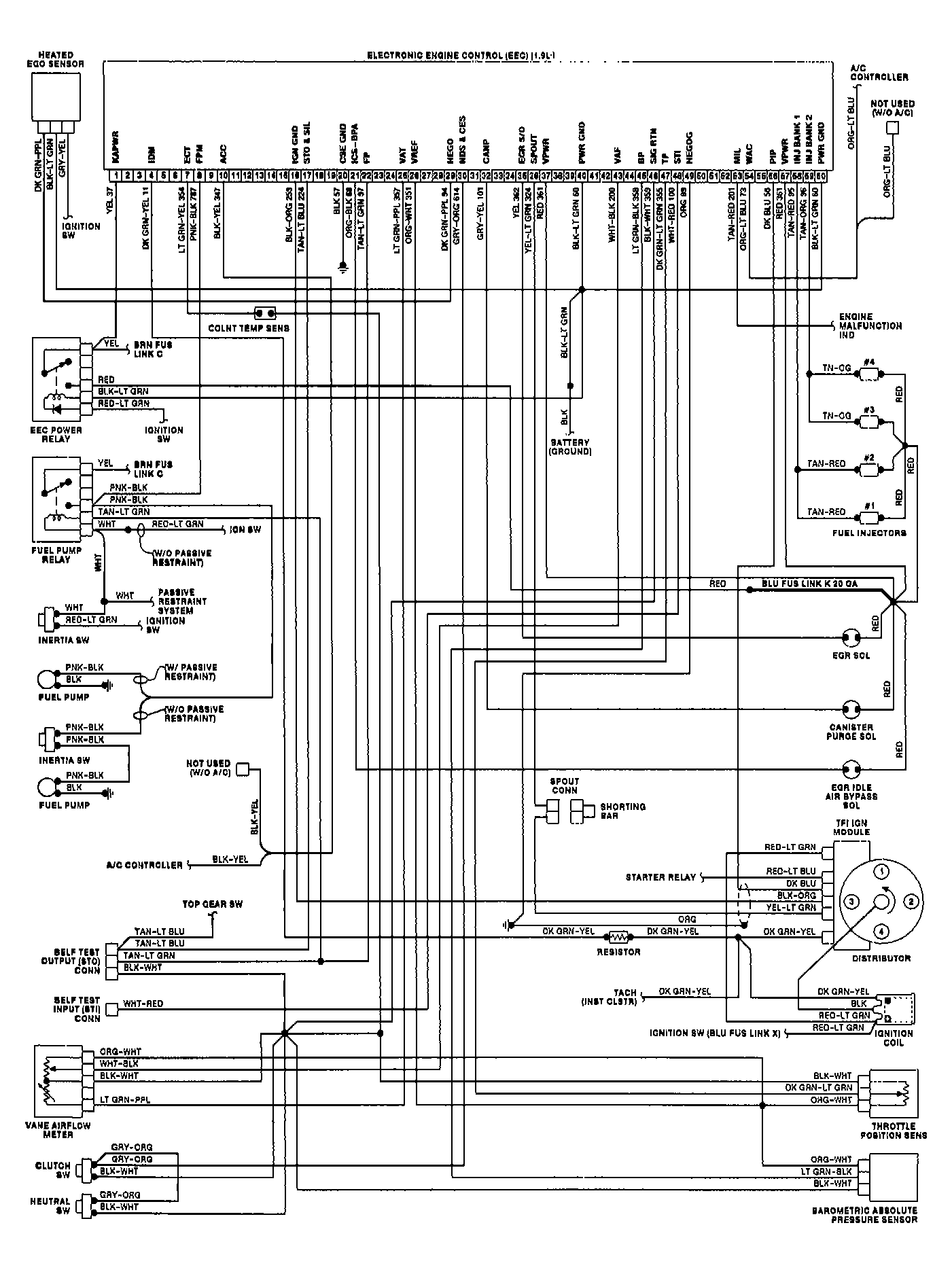

Fig 2: 1.9L PFI Escort EEC-IV Wiring Diagram

G90G13652
