Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Cooling Fan Control Unit (2.3L) | On left support bracket for dash. | |
| Electronic Control Assembly (ECA) | Behind right kick panel. | |
| Low Fluid Module | Behind right side of dash, above glove box. | |
| Slosh Module | Forward of instrument cluster. | |

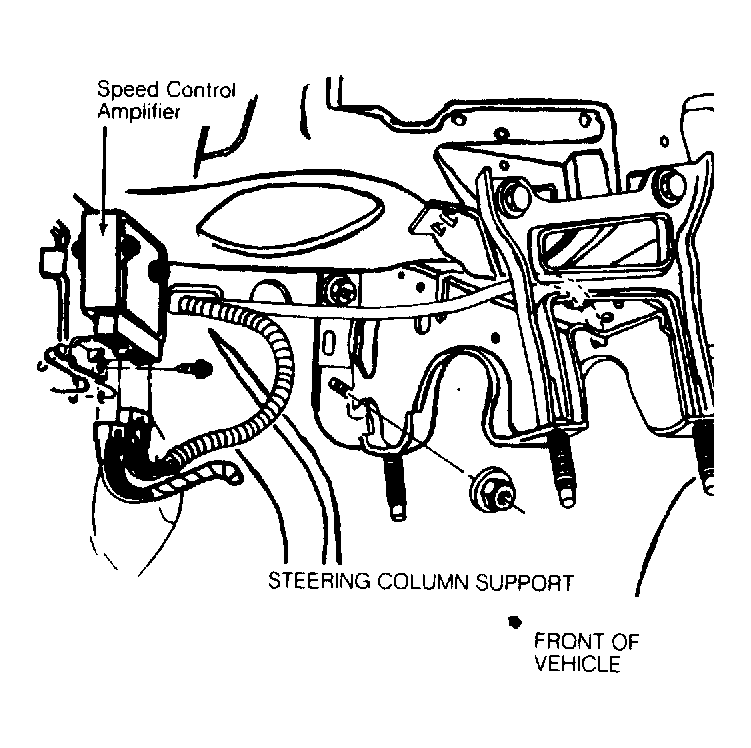

| Speed Control Amplifier | Above left kick panel. See Figure. | |
| TFI Ignition Module | ||

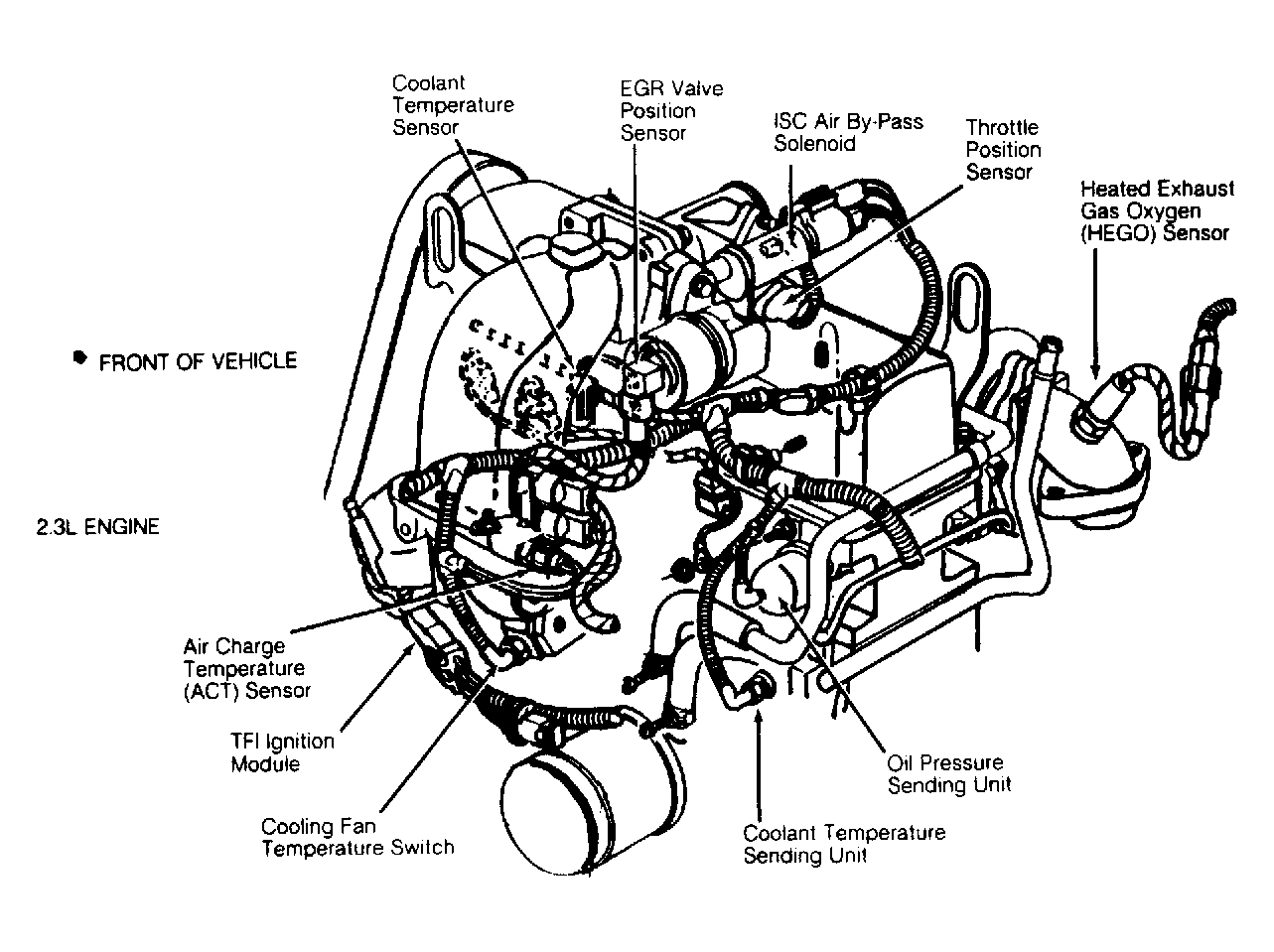

| 2.3L | On side of distributor. See Figure. | |

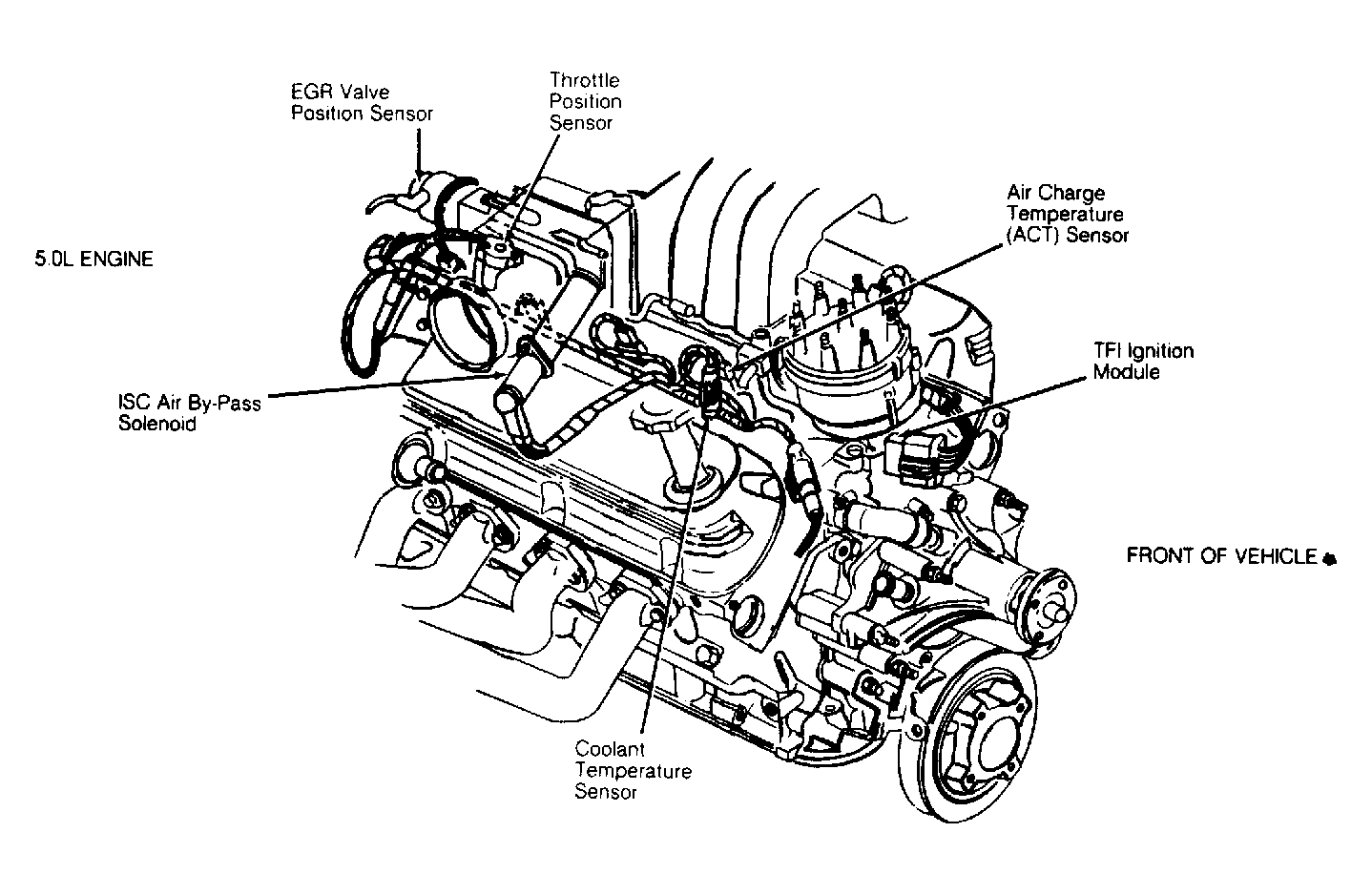

| 5.0L | On side of distributor. See Figure. | |
| Warning Chime Module | Behind center of dash. See Figure. | |
