Wiring Diagrams
Wiring Diagrams

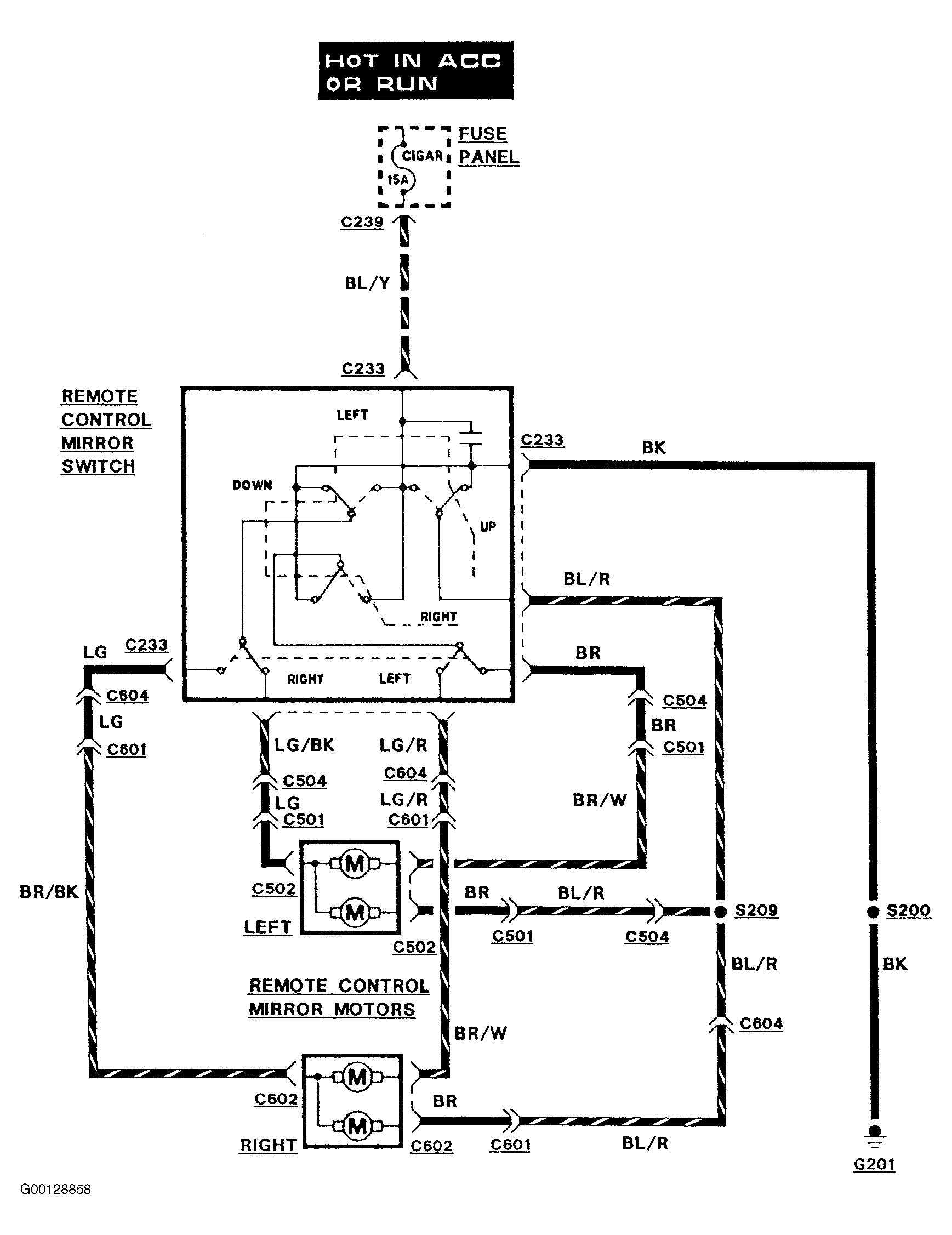

Fig 1: Power Mirror Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
