RM8: Check Wire Power

Check for voltages at the remote control mirror motors as shown. See Fig 1 . Do all the switch positions check out OK? If yes, replace the remote control mirror in question. See POWER REAR VIEW MIRROR  under REMOVAL & INSTALLATION. If no, repair the wire(s) in question from the mirror(s) to the mirror switch.

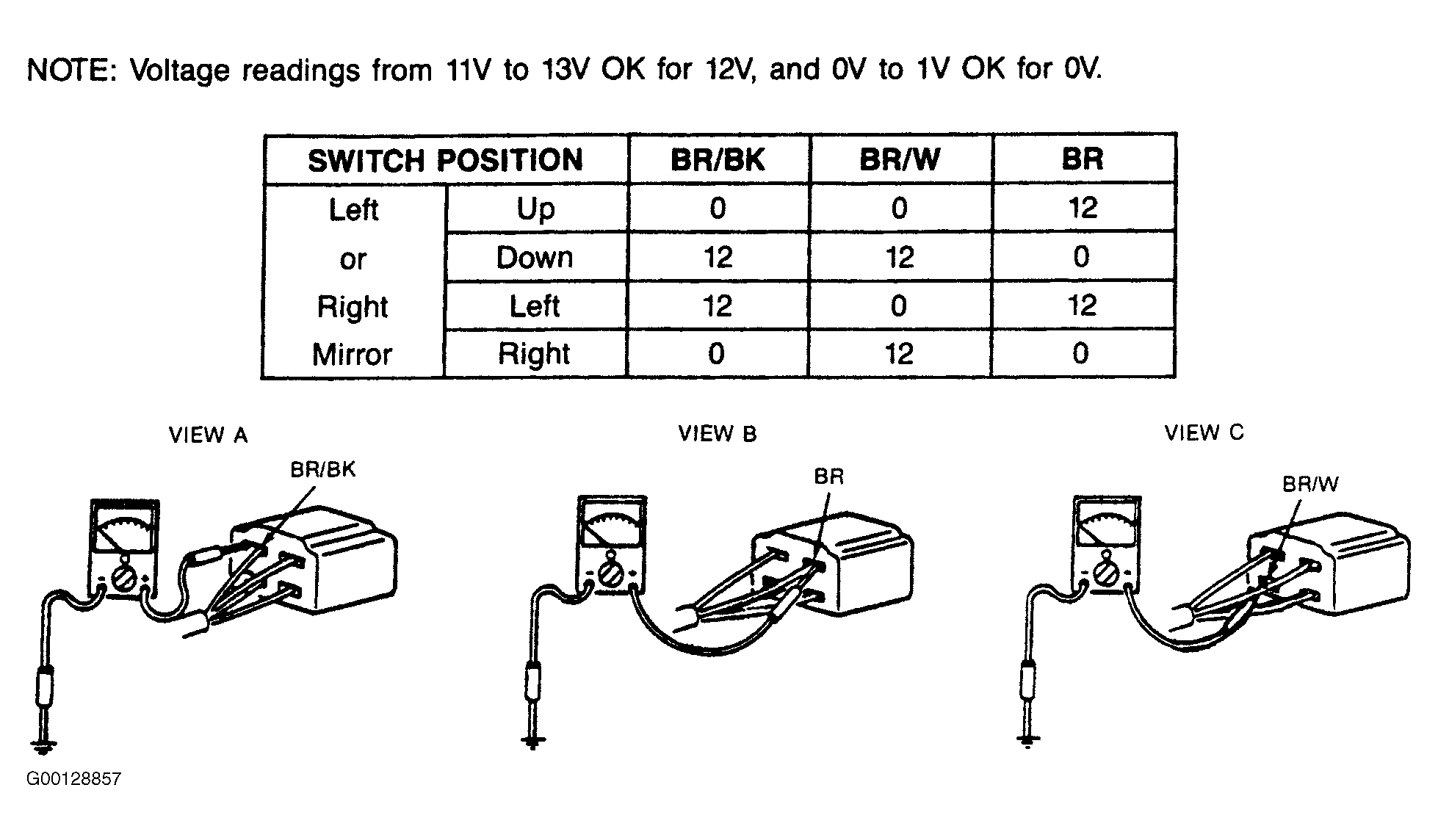

Fig 1: Checking Power Mirror Switch Voltage
G00128857Courtesy of FORD MOTOR CO.
