Description & Operation

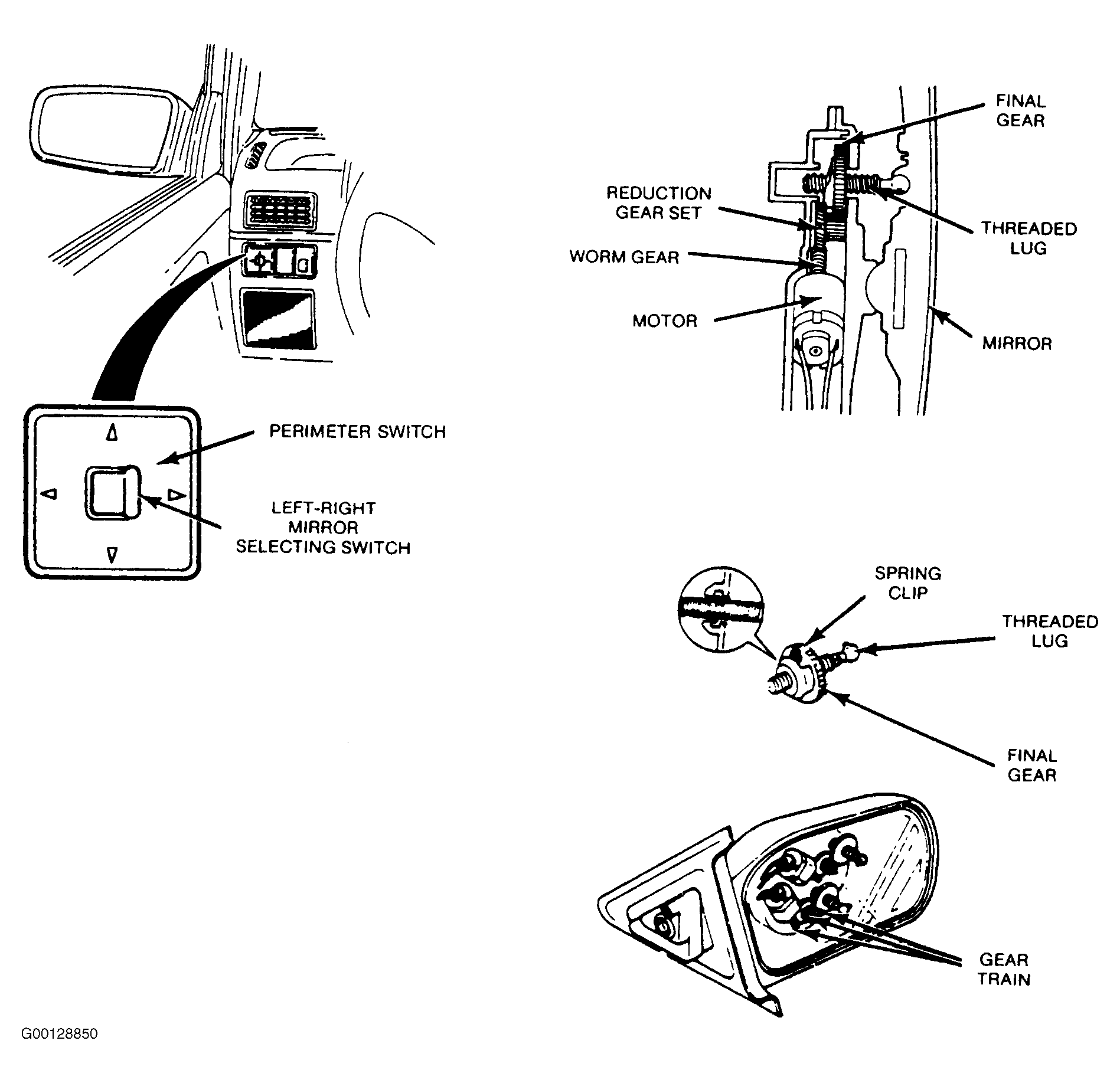

The power outside rearview mirrors are an aerodynamic sail-mount design. See Fig 1 . The mirror base is secured to the lower front corner of the window frame. The screws attaching the base to the door and the wiring connector are concealed behind a trim cover which is also attached to the window frame.
The power outside rearview mirrors are operated by a switch located to the left of the steering column just below the air discharge register. See Fig 1 . The switch housing actually contains two separate switch assemblies. The outer perimeter switch controls the up/down and the inboard/outboard position of the mirrors. The center toggle switch determines which mirror is connected to the perimeter switch. When the toggle is positioned to the left mirror, the left mirror will respond to the perimeter switch. The right mirror responds when the toggle is positioned to the right.
Each mirror contains two electric motors -- one for tilting the mirror up or down and another for moving the mirror inboard or outboard. See Fig 1 . Each motor drives a gear train that includes a worm gear, a reduction gearset, and a threaded attaching lug. Rotation of the gear train threads the attaching lug in or out of the final gear in the train. As the lug moves in the gear, it pushes or pulls the mirror into a new position. A spring clip installed over the lug allows it to ratchet when it reaches the end of its travel.
