Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Fuse Panel | Left Side Of Instrument Panel, To Right Of Steering Column |
| G200 | Left Cowl Panel, Above Kick Panel |

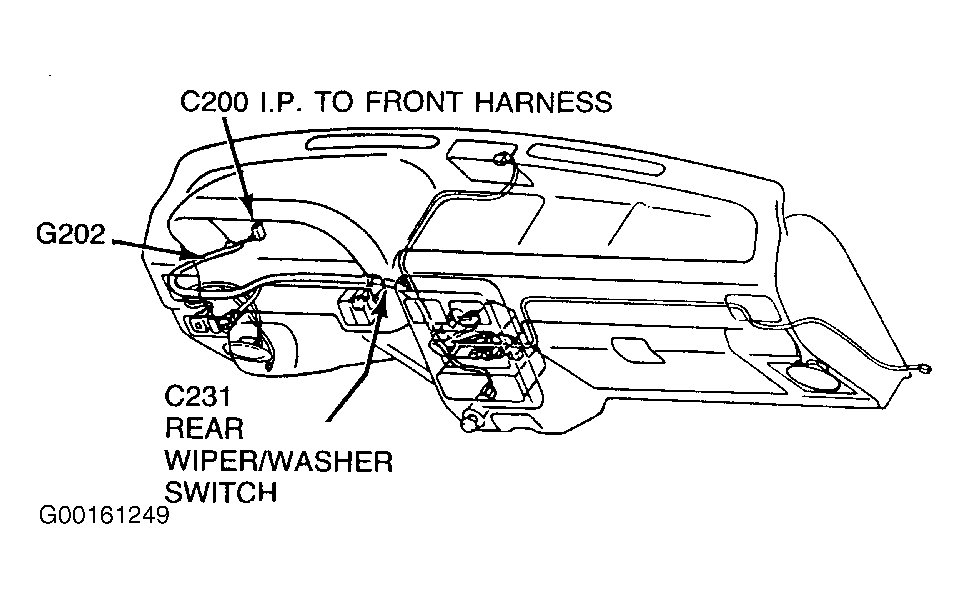

| G202 | Left Side Of Instrument Panel. See Fig 1 . |
| Rear Wiper Motor | In Liftgate |
| Rear Wiper Switch | Lower Right Corner Of Instrument Cluster Bezel |
| Washer Pump | Inside Washer Reservoir |
| Windshield Wiper Switch | In Multi-Function Switch On Steering Column |
| Wiper Motor | Left Rear Of Engine Compartment |
