Test TC: Step 94

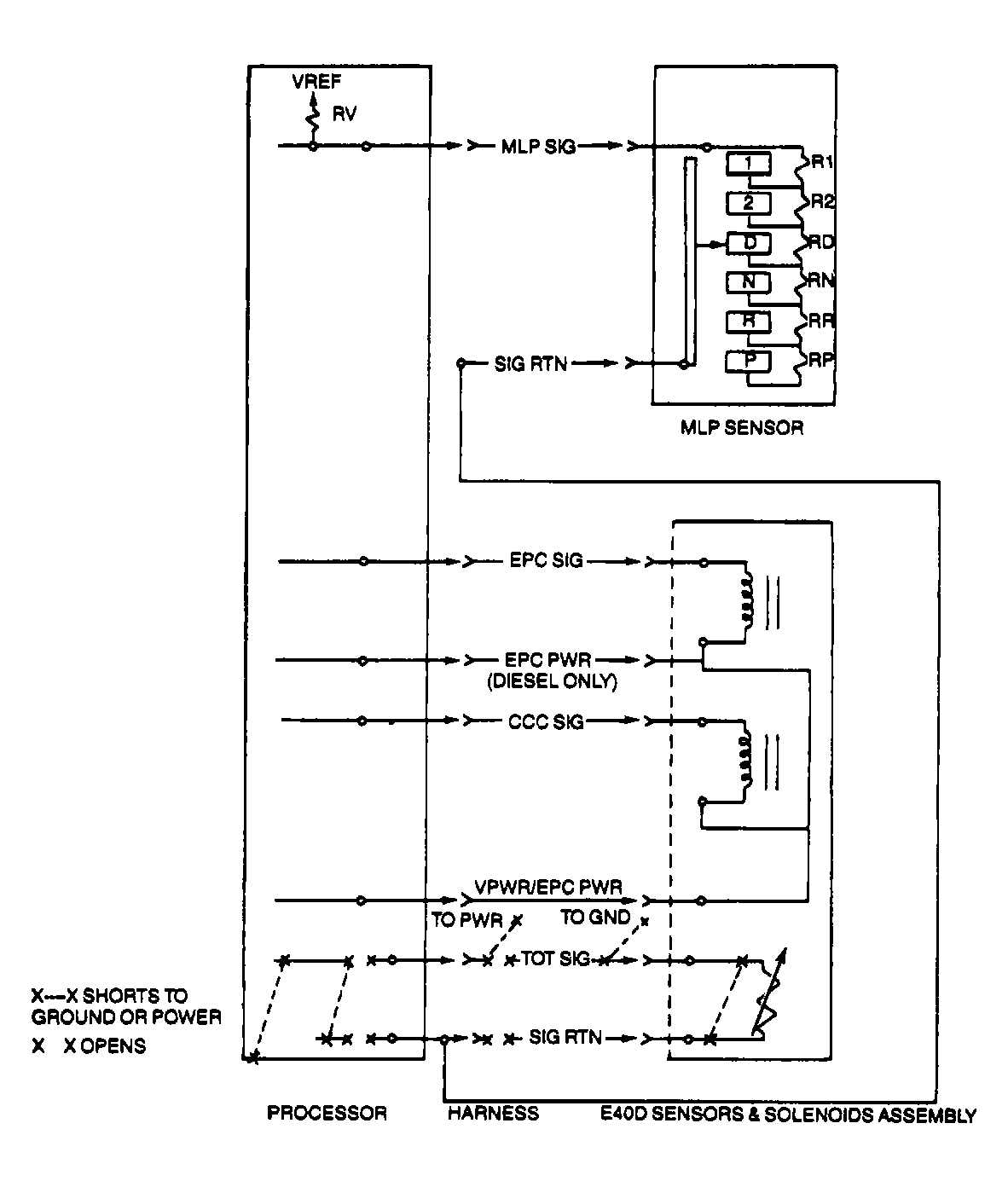

94) Circuit Diagram For Continuous Monitor Mode Refer to E4OD Vehicle Harness Circuit Diagram.

Fig 1: E4OD Vehicle Harness Circuit

G90B09322
