Armature & Field Grounded Circuit Testing

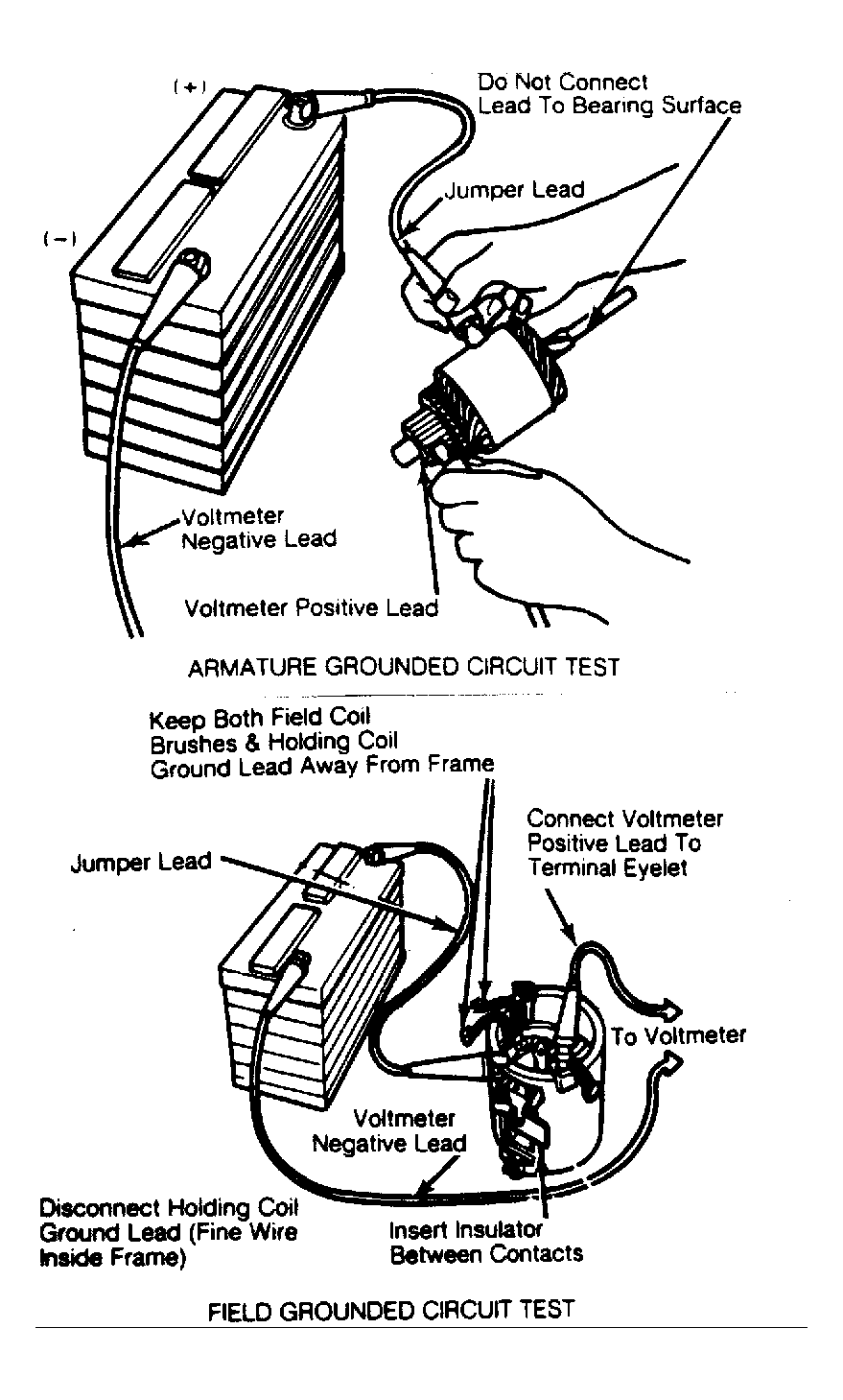

Connect voltmeter and battery terminals to components. See Fig 1. If voltmeter shows any voltage, windings are grounded.

Fig 1: Testing Armature & Field for Grounded Circuits
G15379Courtesy of FORD MOTOR CO.
