Wiring Diagrams

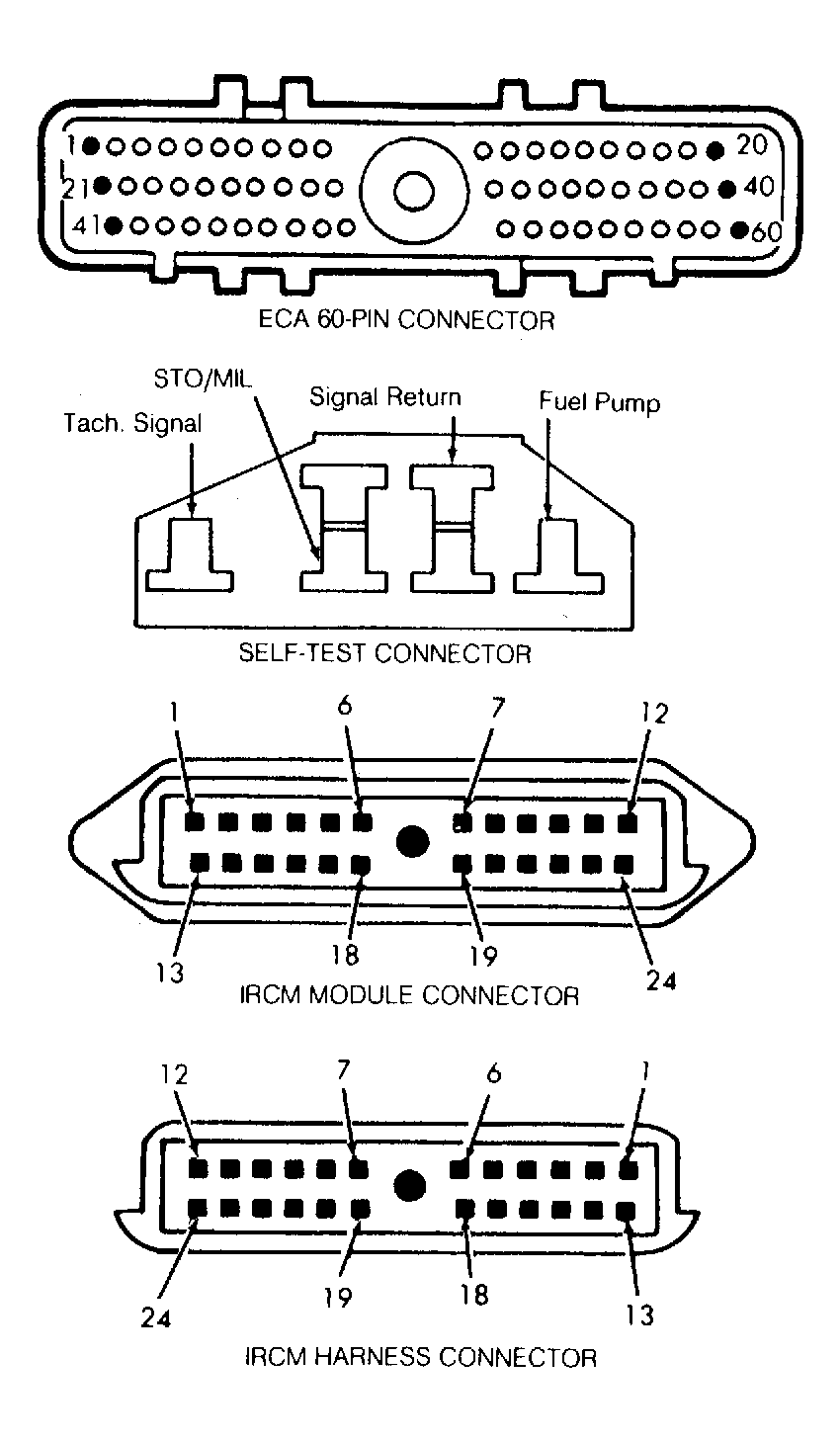

Fig 1: ECA Connector Pin Diagram

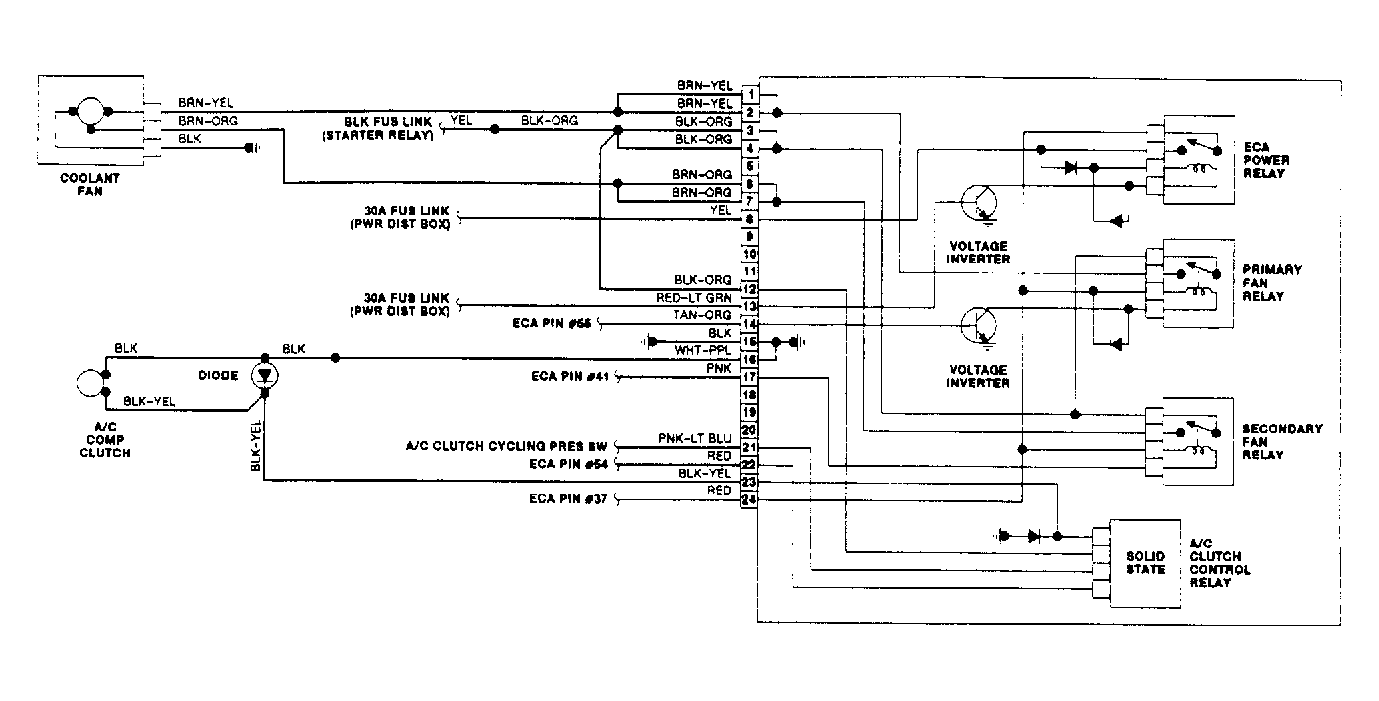

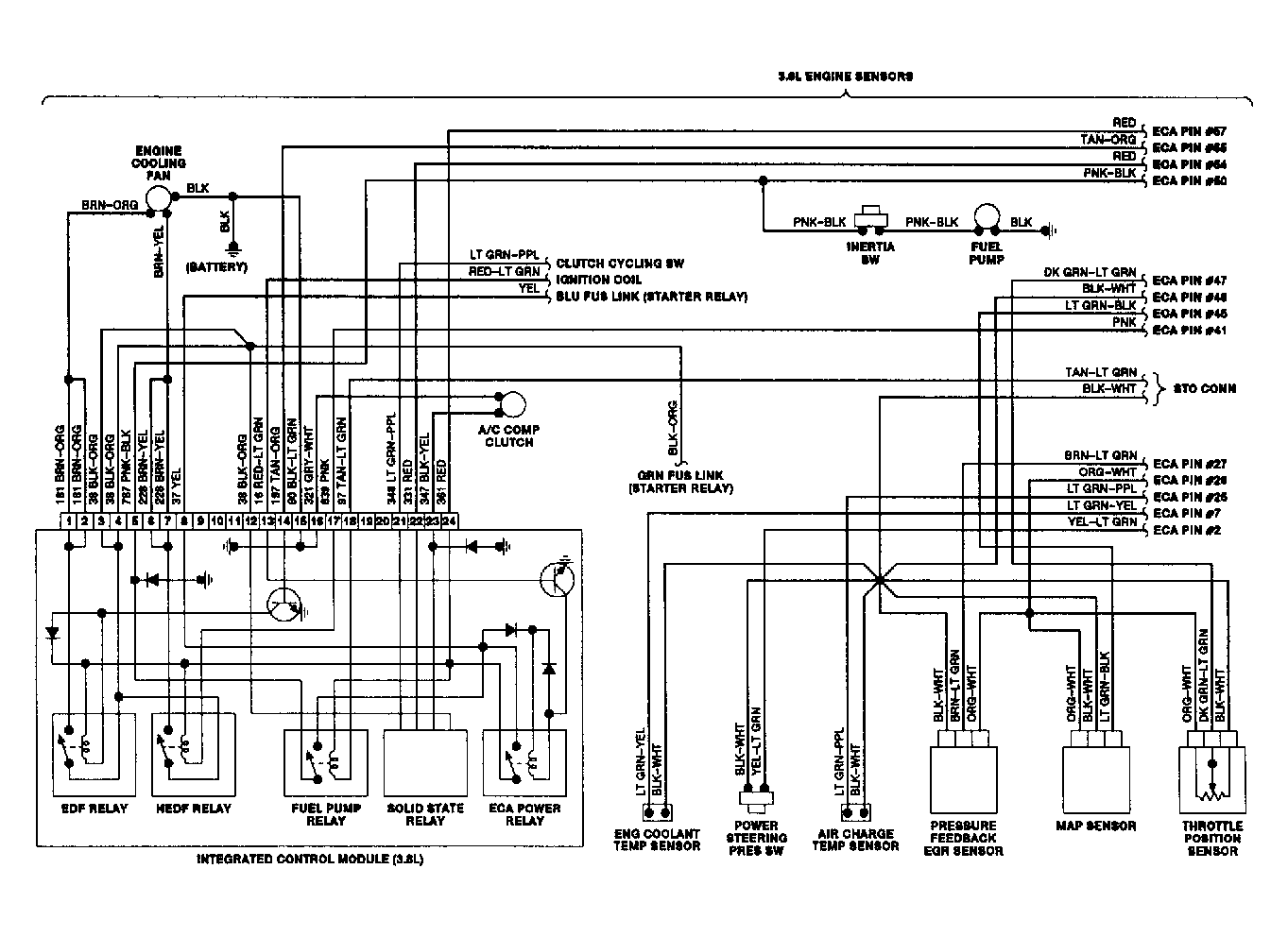

Fig 2: 3.8L SEFI (FWD) Wiring Diagram (Sable & Taurus) (1 of 2)

Fig 3: 3.8L SEFI (FWD) Wiring Diagram (Sable & Taurus) (2 of 2)

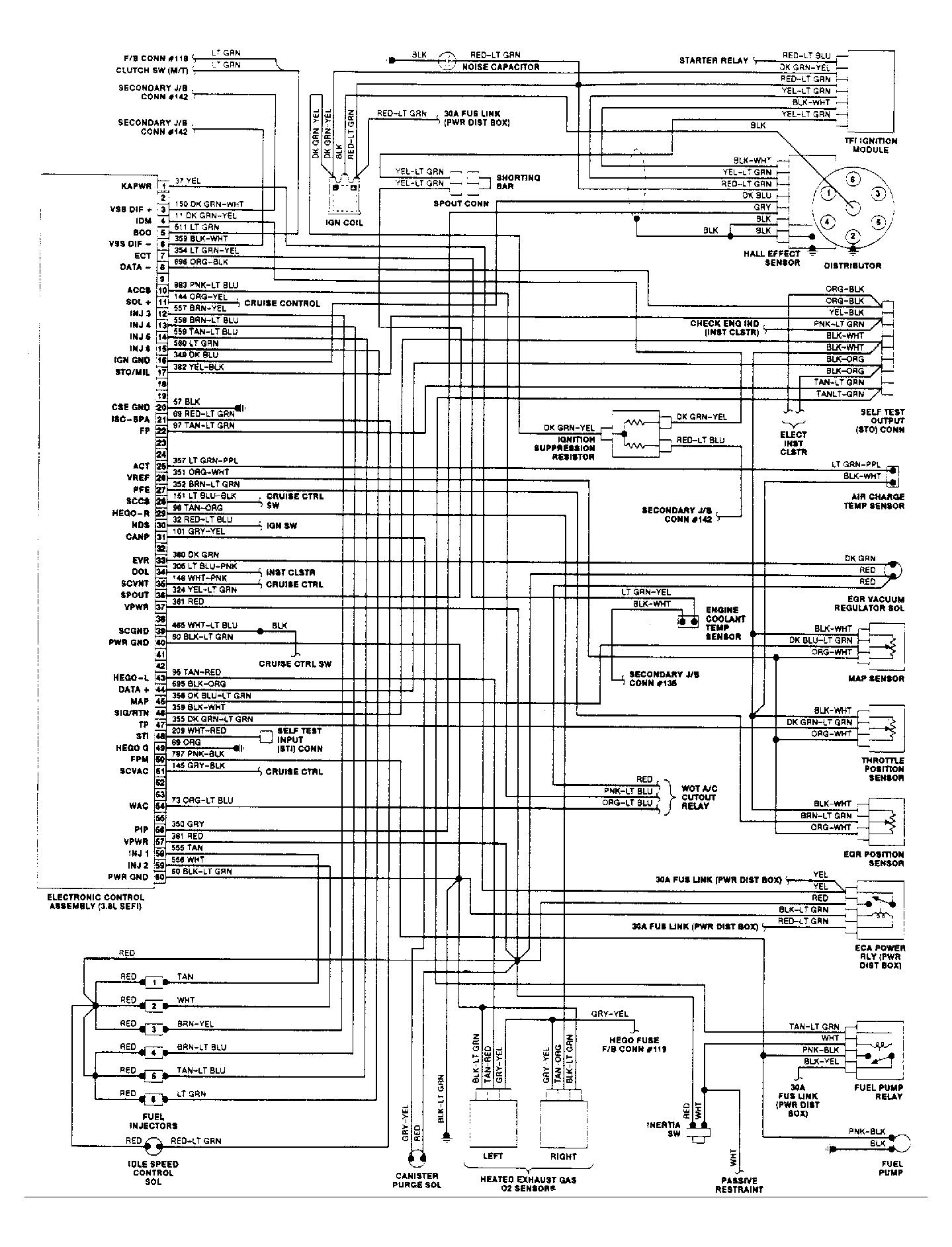

Fig 4: 3.8L SEFI SC Wiring Diagram (Cougar & Thunderbird) (1 of 2) On this diagram, Pin No. 60 of the ECA should read MAF, not PFM.

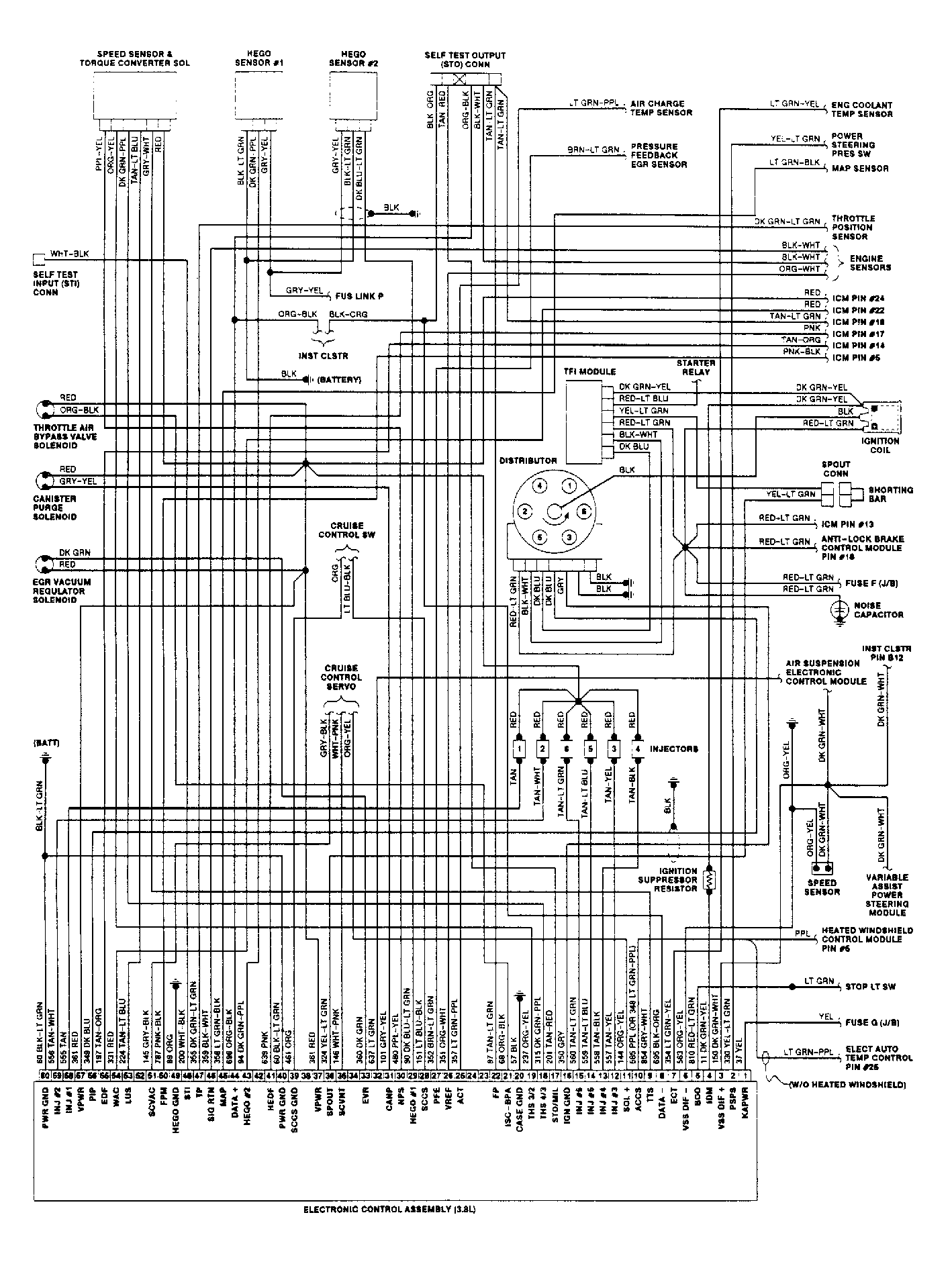

Fig 5: 3.8L SEFI SC Wiring Diagram (Cougar & Thunderbird) (2 of 2)

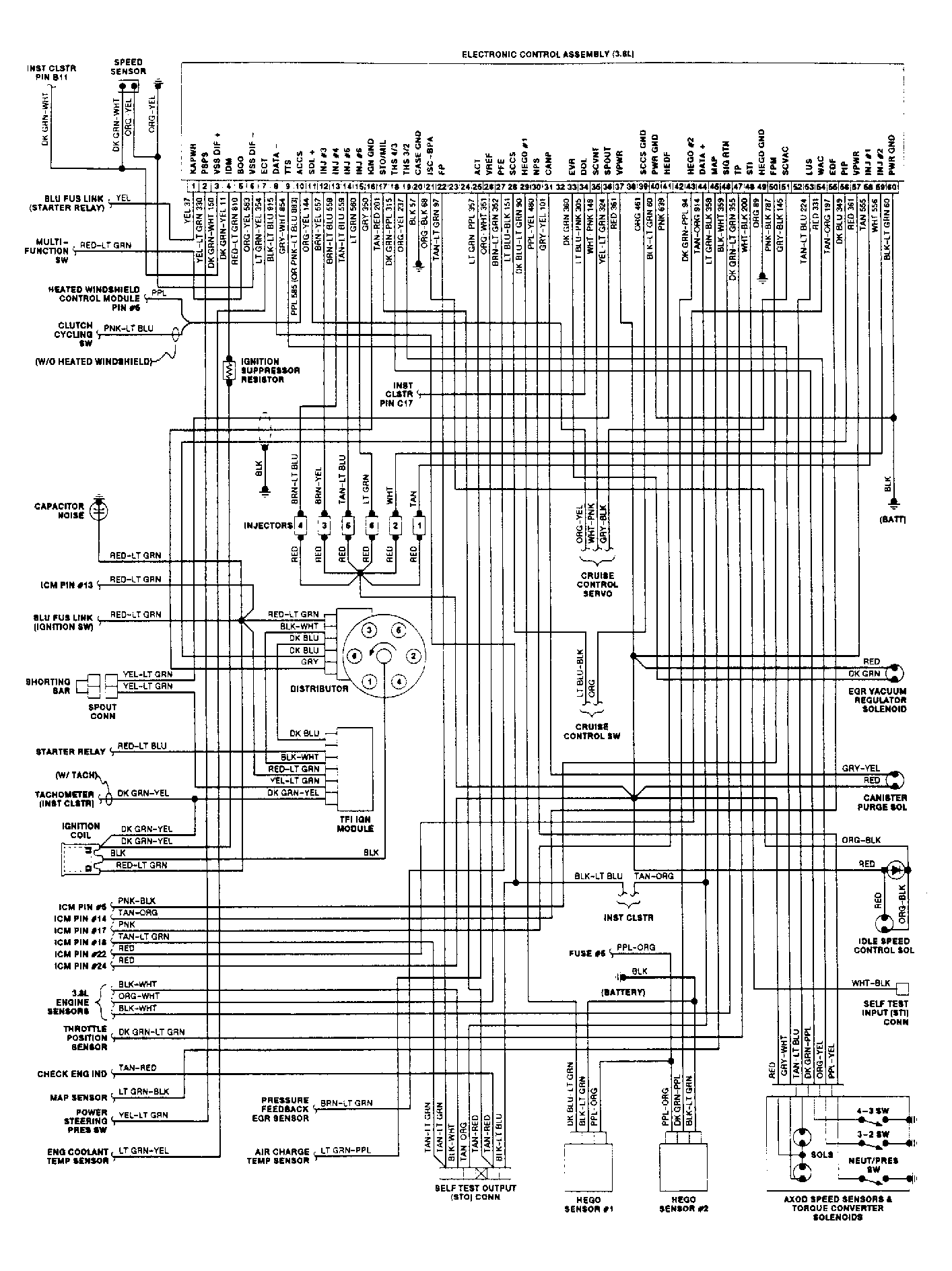

Fig 6: 3.8L SEFI (RWD) Wiring Diagram (Cougar & Thunderbird)

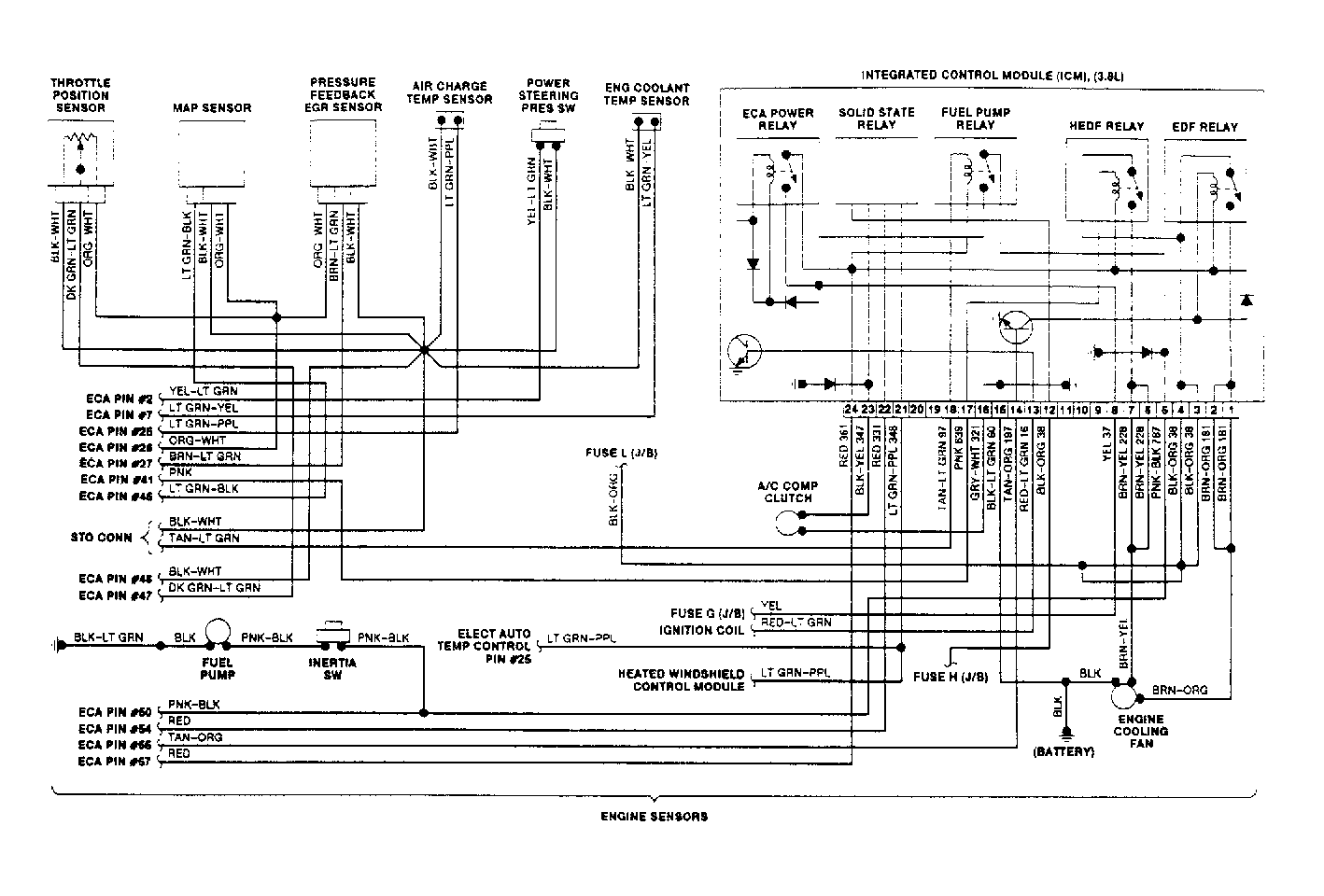

Fig 7: 3.8L SEFI EEC-IV Wiring Diagram (Continental) (1 of 2)

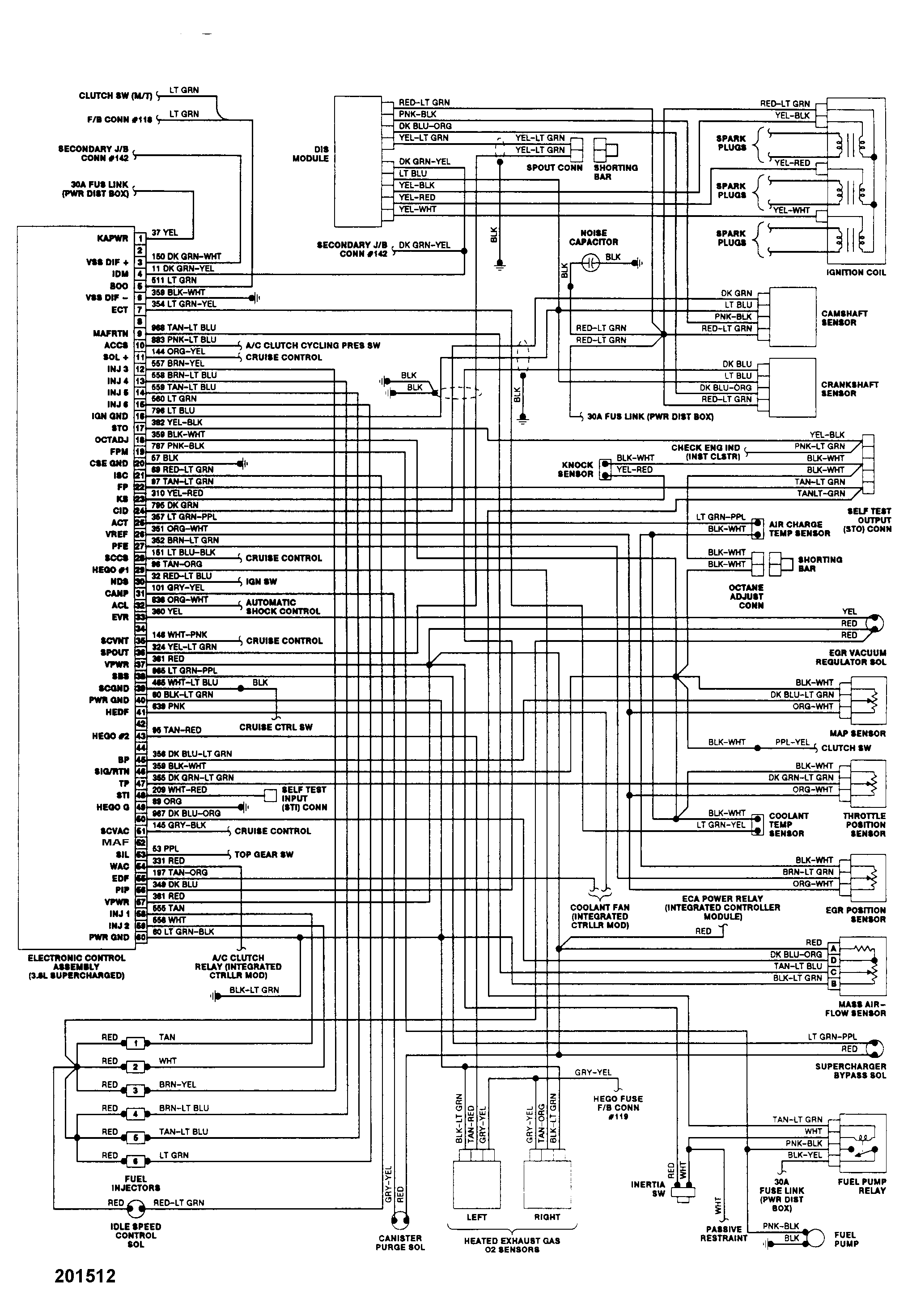

Fig 8: 3.8L SEFI EEC-IV Wiring Diagram (Continental) (2 of 2)
